Name: TinyPICO[D] - ESP32 Dev Board with Dual Antenna
Brand: Unexpected Maker
SKU: TPD-01
Price: 20.85 USD
Availability: InStock

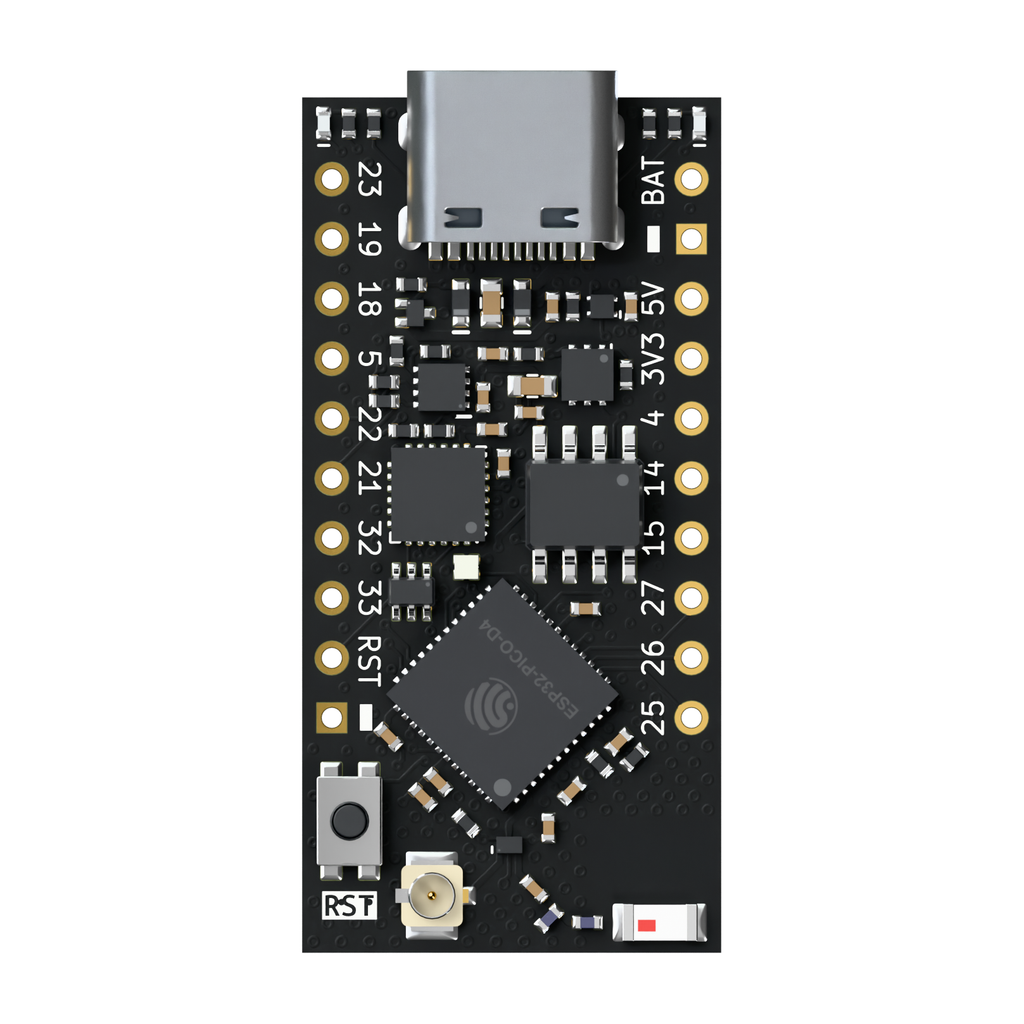

TinyPICO[D] - ESP32 Dev Board with Dual Antenna - TinyPICO[D] is a tiny ESP32 board with switchable onboard and u.FL antennas, an I²C battery fuel gauge and LiPo charging, in the original TinyPICO footprint.

TinyPICO[D] - ESP32 Dev Board with Dual Antenna

TinyPICO[D] is a tiny ESP32 board with switchable onboard and u.FL antennas, an I²C battery fuel gauge and LiPo charging, in the original TinyPICO footprint.

It’s the TinyPICO you know, re-designed with all the latest Series[D] upgrades and a new ultra low power 1010 Neopixel RGB LED.

TinyPICO[D] features

Both antennas. One board.

TinyPICO[D] has both an onboard antenna and a u.FL connector for an external antenna, so there’s no separate version to choose. You can switch between them on the fly from inside your code, and the onboard antenna is selected by default, so the ESP32 is safe even without an external antenna plugged in.

Know your battery.

An I²C fuel gauge for battery monitoring, plus onboard LiPo charging.

TinyPICO[D] uses the CH9102F Serial2UART chip instead of the CP2104. If you are using Windows or macOS, you will need to install the driver to be able to access the TinyPICO via USB.

Features & Specifications

Processor	ESP32-PICO-D4 32-bit · Dual-core LX6 · up to 240 MHz
Flash	4MB QSPI
PSRAM	4MB QSPI
GPIO	14
Wireless	Wi-Fi 4 2.4 GHz · 802.11b/g/n Classic BT + BLE 4.2
USB	USB-to-serial / UART programming
Power	700 mA · 3.3 V regulator
Battery	LiPo charging · I²C battery fuel gauge · JST PH connector pads on the back
Sensing	5V sense pins
Onboard	Ultra Low-power RGB LED
Antenna	3D high-gain antenna and u.FL connector · software switching
Format	Breadboard friendly
Size	36.3 × 17.8 mm
Thickness	4.3 mm at the USB-C end

In the box

Colour pinout card
Unassembled male headers
Unassembled JST PH battery connector
Antistatic bag

Pinout

TinyPICO[D] pinout

Board dimensions 36.3 × 17.8 mm · Max thickness 4.3 mm at the USB-C end

Compare the tiny Series[D] boards.

Find your next board.	TinyC6[D]	TinyPICO[D]	TinyS3[D]
MCU	ESP32-C6	ESP32-PICO-D4	ESP32-S3FN8
Flash	8 MB	4 MB	8 MB
PSRAM	None	4 MB	8 MB
Available IO	17	14	17
2.4 GHz Wi-Fi	Wi-Fi 6	Wi-Fi 4	Wi-Fi 4
Bluetooth	BLE 5.3	Classic BT + BLE 4.2	BLE 5 + Mesh
Zigbee / Thread	Zigbee + Thread	—	—
USB	USB-C 2.0 · Serial/JTAG	USB-C 2.0 · USB-to-serial	USB-C 2.0 · OTG / Serial / JTAG
3.3 V regulators	1 × 700 mA	1 × 700 mA	1 × 700 mA
RGB LED	NeoPixel	NeoPixel	NeoPixel
Antenna	Onboard + u.FL · software switch	Onboard + u.FL · software switch	Onboard + u.FL · software switch
Battery	1S LiPo charging · I²C fuel gauge	1S LiPo charging · I²C fuel gauge	1S LiPo charging · I²C fuel gauge
Size	36.3 × 17.8 mm	36.3 × 17.8 mm	36.3 × 17.8 mm

Getting Started Using Your TinyPICO[D]

Please have a read through our Getting Started Guide for information on how to start using your TinyPICO[D] Development Board.

Code any way you like!

Ships with MicroPython pre-installed!

The TinyPICO[D] ships with MicroPython for the ESP32, with its board helper built in.

Of course, you can choose from a wonderful array of other languages and platforms. Explore them all below....

Downloads

Download TinyPICO[D] resources, including the schematic, 3D model, KiCAD footprint and more.

Schematic

Download ↓

GitHub

The Unexpected Maker Series[D] GitHub repository includes:

3D STEP file for TinyPICO[D]
High-resolution pinout reference card for TinyPICO[D]
Helper libraries for Arduino and MicroPython

Open GitHub repository →

ESP32-PICO-D4 datasheet

For detailed information about the ESP32-PICO-D4, including full IO capabilities and other functionality, refer to the datasheet from Espressif.

View ESP32-PICO-D4 datasheet →
