SparkFun Qwiic Shield for Teensy - Extended

by Sparkfun

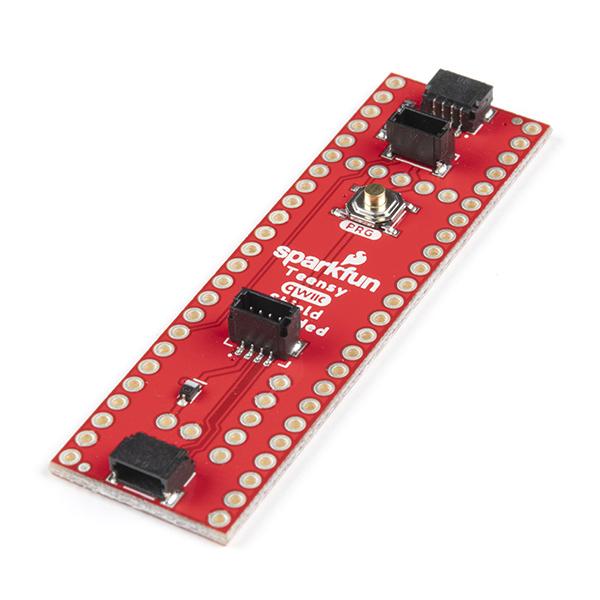

An image of SparkFun Qwiic Shield for Teensy - Extended An image of SparkFun Qwiic Shield for Teensy - Extended An image of SparkFun Qwiic Shield for Teensy - Extended An image of SparkFun Qwiic Shield for Teensy - Extended An image of SparkFun Qwiic Shield for Teensy - Extended An image of SparkFun Qwiic Shield for Teensy - Extended An image of SparkFun Qwiic Shield for Teensy - Extended

The SparkFun Extended Qwiic Shield for Teensy provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Teensy boards.

This shield is sized to work with the footprint of Teensy 4.1, Teensy 3.6, and Teensy 3.5. This shield connects the I2C bus (GND, 3.3V, SDA, and SCL) on your Teensy to four SparkFun Qwiic connectors (two horizontally and two vertically mounted). The Qwiic ecosystem allows for easy daisy chaining so, as long as your devices are on different addresses, you can connect as many Qwiic devices as you'd like.

SparkFun have also added a "PROG" button on this shield that is electrically parallel with the "PROG" button on the Teensy Boards so you can choose to use either the button on your Teensy or the button on the shield to put your Teensy into Programming mode.

The Qwiic Shield for Teensy comes with two 24-pin and one 5-pin headers and you will need to solder the headers to the shield and, if necessary, to your Teensy board. Take care to match the markings on the Qwiic Shield to the appropriate pins on your Teensy to avoid possibly damaging your boards.

The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get started with the SparkFun Qwiic Shield for Teensy Hookup Guide

Includes

  • SparkFun Qwiic Shield for Teensy - Extended
  • 2x 24-pin headers
  • 1x 5 pin header

Features

  • Teensy 4.1, 3.6, or 3.5 Footprint Compatible
  • 4x Qwiic Connection Ports
  • "PROG" Button w/ satisfying tactile feedback
  • I2C Jumper
  • 3.3V and GND Buses

Documents

  • Schematic
  • Eagle Files
  • Board Dimensions
  • Hookup Guide
  • Qwiic Info Page
  • GitHub Hardware Repo

Reviews

User photos

The SparkFun Extended Qwiic Shield for Teensy provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Teensy boards.

DEV-17156

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
DEV-17156
EAN
845156010882
Brand
Sparkfun
Stock available
0 units
Backorder not allowed on this product
Weight
12g
