RGB LED Matrix Panel – 128x64 2.5mm pitch (pack of 2)

An image of RGB LED Matrix Panel An image of RGB LED Matrix Panel An image of RGB LED Matrix Panel

Bring a little bit of Times Square into your home with these sweet RGB LED matrix panels.

These HUB75 style panels are normally used to make video walls, you can sometimes see them on the sides of buses and bus stops displaying animations or short video clips. They have bright RGB LEDs arranged in a 32x32, 32x64 or 64x64 grid on the front. On the back there is a PCB with a set of dual IDC connectors (one input, one output) and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.

These panels require 13 digital pins (6 bit data, 7 bit control) and a good 5V supply, up to 4A per panel). They are 'chainable' if you connect one output to the next input - you will need a microcontroller with a suitably high speed processor and enough RAM plus a software library that supports this.

These displays are designed to be driven by FPGAs or other high speed processors: they do not have built in PWM control of any kind. Instead, you're supposed to redraw the screen over and over to 'manually' PWM the whole thing. On a 16 MHz Arduino, it's possible to squeeze 12-bit color (4096 colors) with 40% CPU usage but they will do best powered by an FPGA or other high speed multi-core controller (like a recent Raspberry Pi or Feather). They are pre-white balanced with nice uniformity so if you turn on all the LEDs it's not a particularly tinted white.

Here are some nice, tidy ways to connect up and drive your LED matrices:

  • Interstate 75 W (RP2350-based all-in-one controller)
  • RGB Matrix Shield (for Arduino and compatibles)
  • RGB Matrix Bonnet or RGB Matrix HAT (for Raspberry Pi)
  • RGB Matrix Featherwing (for M0, M4 and RP2040 Feathers or nRF52840 Feathers)

...scroll down for tutorial links!

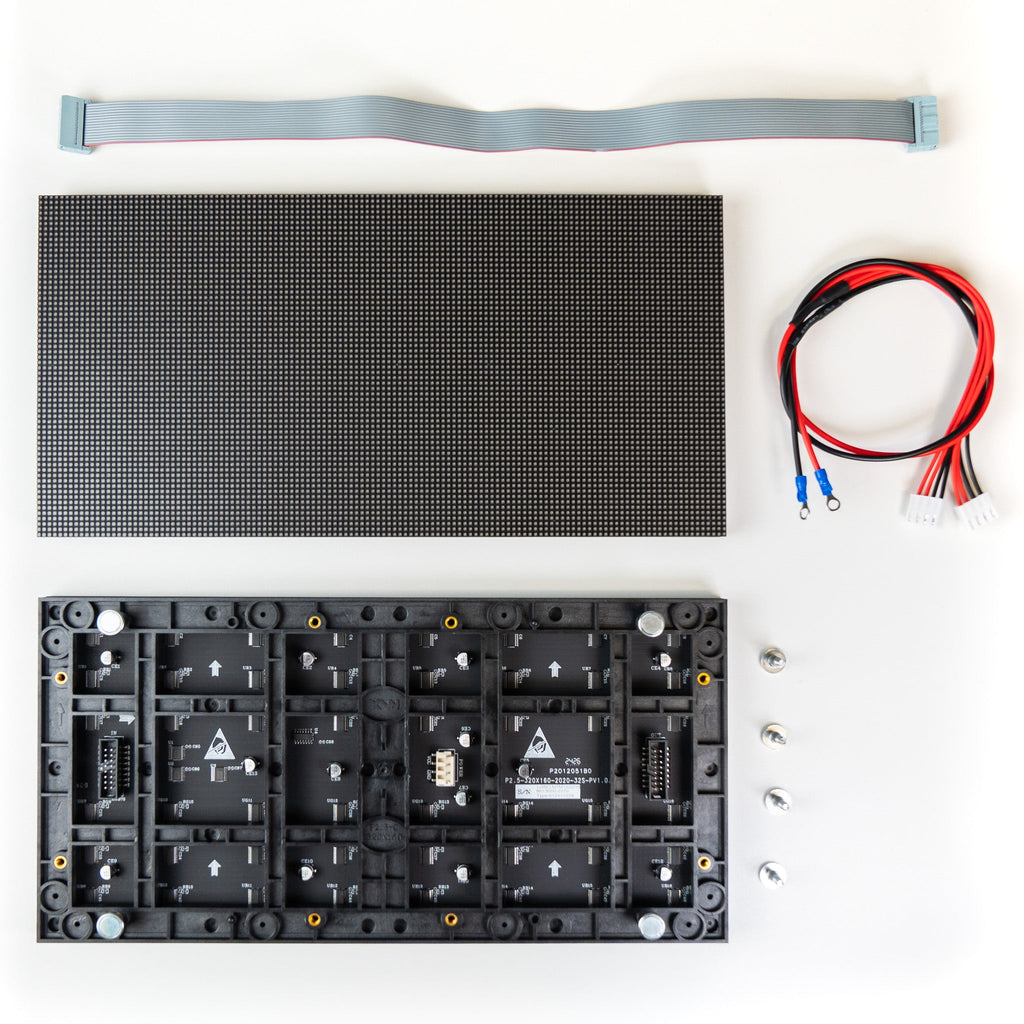

Includes

  • LED panel
  • Power cable (with fork connectors suitable for connecting to a screw terminal)
  • IDC data cable
  • Four magnetic feet with screw threads

Two-packs include

COM-B021 and COM-B022 come in packs of two! Here's what you get with those:

  • 2x LED panel
  • Double ended power cable (with ring connectors suitable for connecting to a screw terminal)
  • Long IDC data cable
  • Eight magnetic feet with screw threads

Specifications

COM-B006 COM-B007 COM-B013 COM-B014 COM-B021 COM-B022
Dimensions (mm, L x W x H) 192 x 192 x 12.5 128 x 128 x 14 256 x 128 x 14.5 160 x 160 x 15 320 x 160 x 14.5 160 x 80 x 14.7
Panel resolution 32 x 32 (1024 dots) 32 x 32 (1024 dots) 64 x 32 (2048 dots) 64 x 64 (4096 dots) 128 x 64 (8,192 dots) 64 x 32 (2048 dots)
Physical LED pitch (mm) 6 4 4 2.5 2.5 2.5
Physical density (dots/m²) 27556 62500 62500 160000 160000 160000
Panel weight (kg) 0.24 0.13 0.23 0.24 0.37 0.11
Viewing angle (horizontal) ≥160° ≥160° ≥160° ≥160°
Viewing angle (vertical) ≥160° ≥160° ≥160° ≥160°
Maximum power (w) ≤12 ≤20 ≤20 ≤18
Luminance (cd/m) ≥1300 ≥1000 ≥1000 ≥1000
Photos of backs of panels link link link link link link
  • 5V regulated power input, 4A max (all LEDs on)
  • 5V data logic level input
  • Displays are 'chainable' - connect one output to the next input.

Resources

Check out these tutorials for instructions, schematics, wiring diagrams and code examples!

  • Getting Started with Interstate 75
  • RGB Matrix Shield for Arduino tutorial (32x32 only)
  • RGB Matrix + Real Time Clock HAT for Raspberry Pi tutorial
  • RGB Matrix Bonnet for Raspberry Pi tutorial
  • RGB Matrix FeatherWings tutorial
  • RGB LED Matrices with CircuitPython

Notes

  • For 64x64 displays (and some 32x64 displays): You must solder bridge the E jumper on the back of the Adafruit Matrix Bonnet to 8, otherwise only half of your display will light up.
  • These panels are remainder stock from factories that make huge light boards. This means panels may vary slightly from batch to batch (though basic operation is the same). As such, if you're planning on chaining multiple boards we'd recommend buying them at the same time to ensure compatibility.
  • Some batches of these panels use a newer FM6126A driver chip - if you're having trouble getting them to light up you might need to specify this. If you're using the rpi-rgb-led-matrix library try running the examples with --led-panel-type=FM6126A, or with our Interstate 75 examples you can specify the panel type like so:
    i75 = Interstate75(display=Interstate75.DISPLAY_INTERSTATE75_64X64, panel_type=Interstate75.PANEL_FM6126A)
  • Some panels have a different colour order! If you're using a pair of 64x32 panels with an Interstate 75 you can set the colour order correctly as so:
    i75 = Interstate75(display=Interstate75.DISPLAY_INTERSTATE75_128X32, color_order=Interstate75.COLOR_ORDER_RBG)
