Particulate Matter Sensor Breakout (for PMS5003)

by Pimoroni

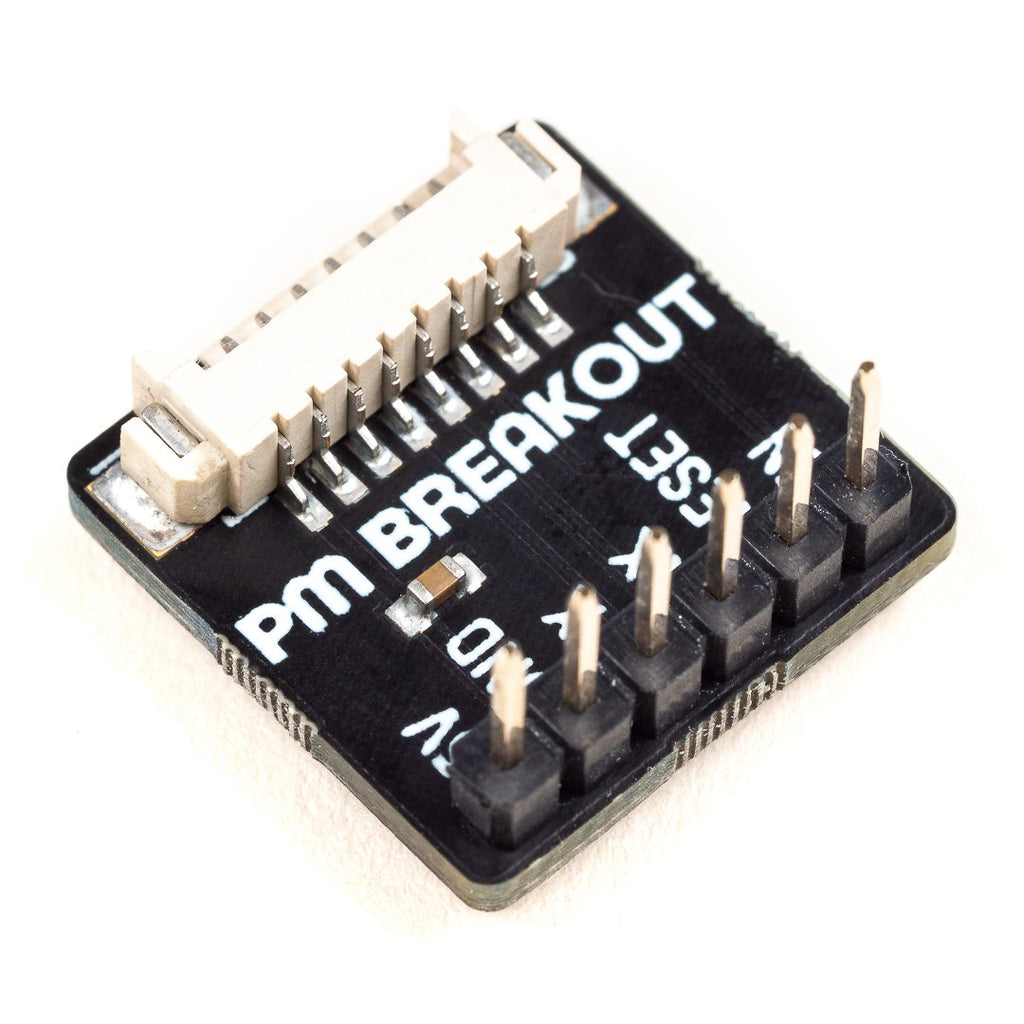

An image of Particulate Matter Sensor Breakout (for PMS5003) An image of Particulate Matter Sensor Breakout (for PMS5003) An image of Particulate Matter Sensor Breakout (for PMS5003)

A handy-dandy breakout that converts between the picoblade connector cable on the PMS5003 particulate matter sensor and a standard male 2.54mm pitch header.

Use this breakout to connect a PMS5003 particulate matter sensor straight to your Raspberry Pi (or other microcontroller) with some female-to-female jumper jerky, using our PMS5003 Python library to read data from the sensor.

Connect the pins on the breakout to the following pins on your Raspberry Pi:

  • 5V to 5V
  • GND to ground
  • TX to BCM 14
  • RX to BCM 15
  • RESET to BCM 27
  • EN to BCM 22

You can also use this breakout with Raspberry Pi Pico (and other RP2040 boards) using our MicroPython library for PMS5003. You can install it easily using Thonny's 'Tools' > 'Manage Packages' (search for 'pms5003-micropython').

Dimensions: 17.7x17.75mm

Reviews

User photos

A handy-dandy breakout that converts between the picoblade connector cable on the PMS5003 particulate matter sensor and a standard male 2.54mm pitch header.

PIM477

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
PIM477
EAN
0606034880139
Brand
Pimoroni
Stock available
152 units
You may backorder this product
Weight
5g

Video introduction
