Raspberry Pi Radio Module 2 (RM2)

Name: Raspberry Pi Radio Module 2 (RM2)
Brand: Raspberry Pi
SKU: SC1169
Price: 3.60 GBP
Availability: OutOfStock

by Raspberry Pi

Add 2.4GHz wireless and Bluetooth to your custom PCB designs with Raspberry Pi's official Radio Module.

The radio module that Raspberry Pi use on their Pico W and Pico 2 W microcontroller boards is now available to buy separately, so you can incorporate it into your own designs. It comes in an easy-to-integrate castellated package and is FCC compliant in the US, Europe and Canada, with other markets to follow.

Radio Modules are sold singly and packaged on cut tape. Note this is the radio module component only, mounted on a castellated PCB.

If you'd prefer to buy a premade microcontroller board that makes use of this module then check out our RP2350 collection. We also make a SP/CE and breadboard-friendly RM2 breakout!

About RM2

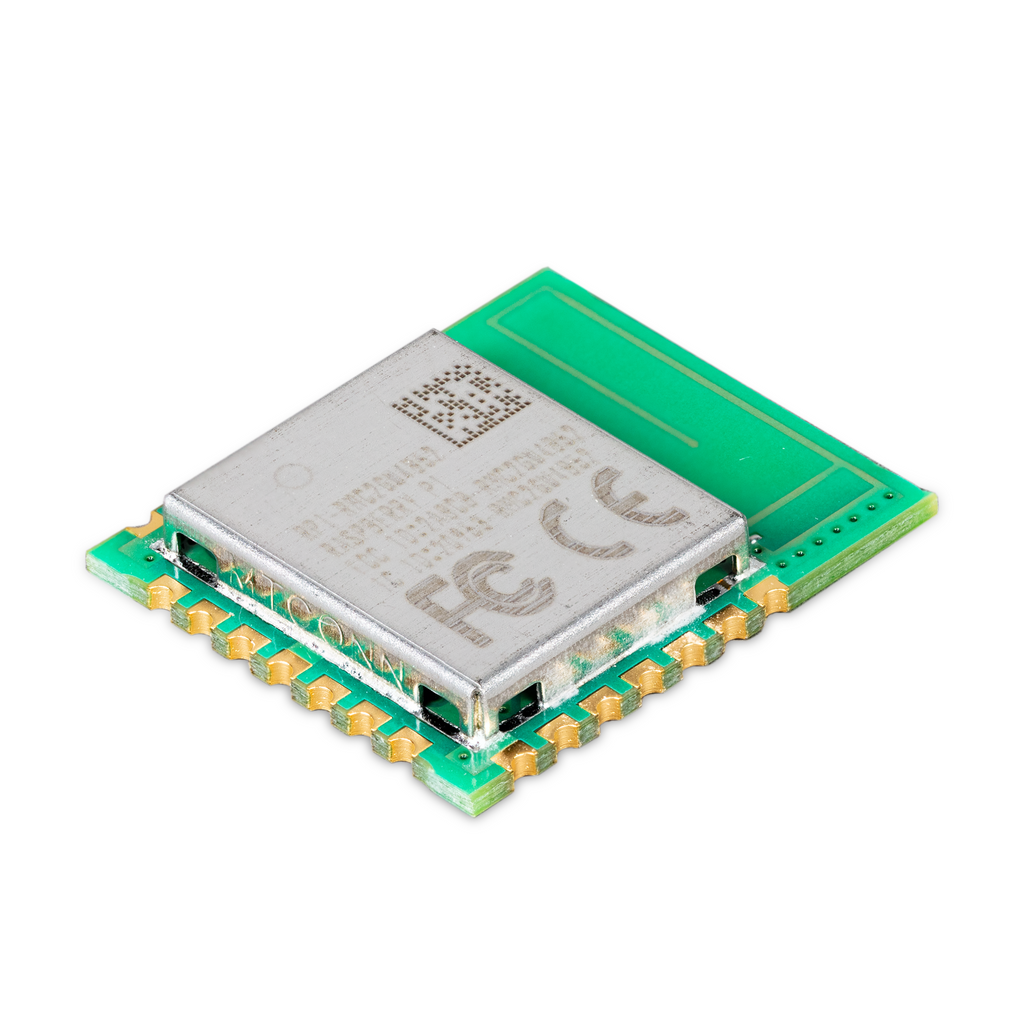

Raspberry Pi's RMC20452T module is designed for use with Raspberry Pi’s low-cost, high-performance microcontrollers. It uses Infineon’s CYW43439, a single-chip combo device featuring 1 × 1 single-band 2.4GHz Wi-Fi® 4 (802.11n) and Bluetooth® 5.2 for low-cost applications. It is a small form-factor solution with minimal external components for reduced mass production costs.

The radio module has castellated edge pads to allow for a variety of mounting options, and features an on-board single 2.4GHz antenna for ease of design. It has full modular certification, making integration straightforward with regard to regulatory compliance.

Features

Supports Wi-Fi 4 (802.11n), single-band (2.4 GHz)
Supports Bluetooth 5.2, Bluetooth Classic and Bluetooth Low Energy (LE)
Full software compatibility with Pico W and Pico 2 W SDK
Simple GPIO expander: Three host-controlled GPIOs for added I/O capabilities
Minimal I/O overhead
Efficient single-antenna design
Integrated internal PA and LNA for signal range and reliability
Supports 20 MHz channels with data rates up to 96 Mbps (PHY rate)
Dimensions: 14.5mm(W) x 16.7mm(L) x 2.6mm(H)
Weight: 1g

Resources

Datasheet, including footprint and reference schematics
Product brief
Launch blog post
