Adafruit PiTFT Plus 480x320 3.5" TFT+Touchscreen for Raspberry Pi

Name: Adafruit PiTFT Plus 480x320 3.5" TFT+Touchscreen for Raspberry Pi
Brand: Adafruit
SKU: ADA2441
Price: 43.80 GBP
Availability: OutOfStock

by Adafruit

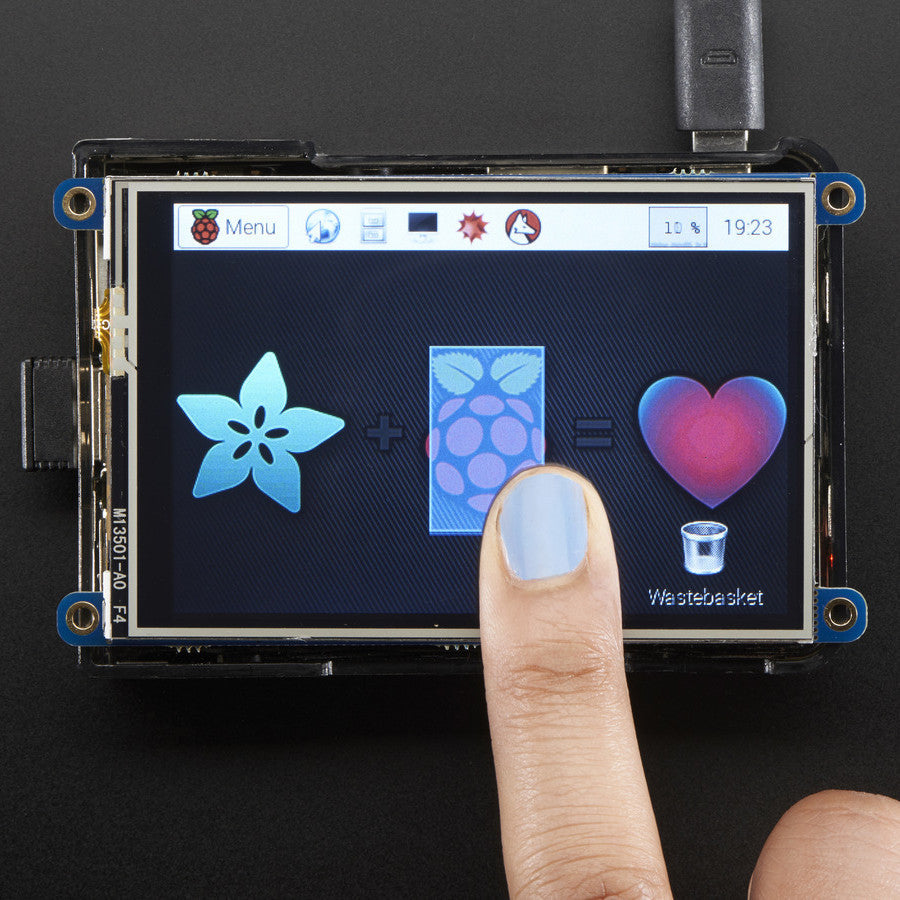

Is this not the cutest, little display for the Raspberry Pi? It features a 3.5" display with 480x320 16-bit color pixels and a resistive touch overlay and is engineered specifically to work with the newer "2x20 connector" Raspberry Pi's.

The plate uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top!

This PiTFT 3.5" is designed to fit nicely onto the Raspberry Pi Zero, Pi 3, Pi 2 or Model A+ / B+ (any Pi with a 2x20 connector). Not for use with an old Pi 1 with 2x13 connector

The display uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. GPIO #18 can be used to PWM dim the backlight if you like. All other GPIO are unused. There's a 2x16 'classic Pi' connection GPIO header on the bottom, you can connect a 26-pin Pi GPIO cable to it to use any of the other pins as you like. The other GPIO are broken out into solder pads at the bottom, in case you want to use more of the GPIO.

Best of all, it comes fully assembled and ready to plug into your Pi! You can use this as a display for running the X interface, or pygame. You can also have an HDMI display seperately connected. There's four mounting ears that can be used to attach the display & Pi to a bezel, or snap them off with pliers (they're perforated) for a slick exactly-the-same-size-as-a-Pi look.

Adafruit have created a custom kernel package based of off Notro's awesome framebuffer work, so you can install it over your existing Raspbian (or derivative) images in just a few commands. Their tutorial shows you how to install the software, as well as calibrate the touchscreen, display images such as from your PiCam and more!

Is this not the cutest, little display for the Raspberry Pi? It features a 3.5" display with 480x320 16-bit color pixels and a resistive touch overlay and is engineered specifically to work with the newer "2x20 connector" Raspberry Pi's.

ADA2441

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU

ADA2441

EAN

0704256791537

Brand

Adafruit

Stock available

0 units
Backorder not allowed on this product

Weight

80g
