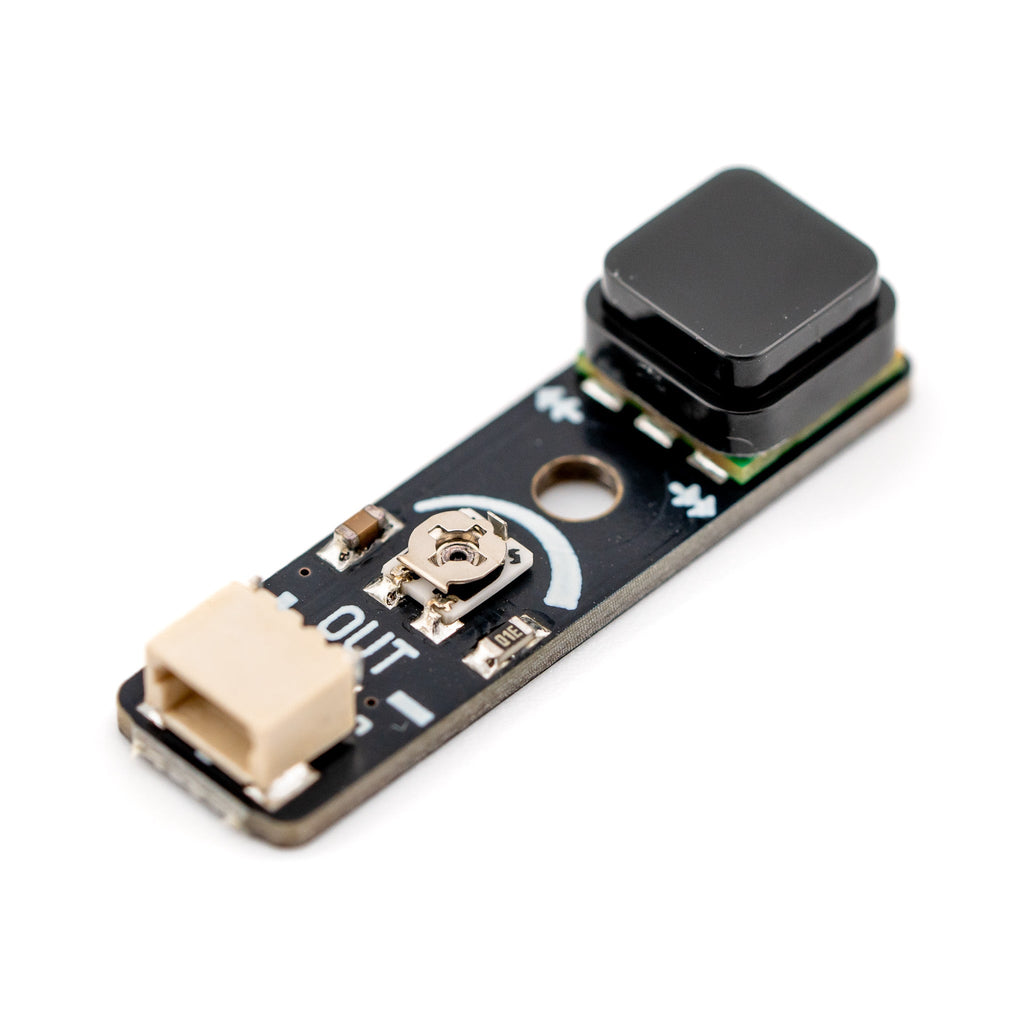

PIR Stick for Tiny FX

PIR Stick for Tiny FX - A passive infrared (PIR) sensor stick that gives your Tiny FX projects the ability to trigger effects when motion is detected. PIR Stick for Tiny FX PIR Stick for Tiny FX PIR Stick for Tiny FX PIR Stick for Tiny FX PIR Stick for Tiny FX

Log in for trade pricing

You’ll need a trade account and be logged in to view pricing or place an order.

Accounts are available to schools and universities, businesses, and resellers of maker products.

Log in Apply for an account

Only need one or two? Buy it from our retail shop

PIR Stick for Tiny FX

A passive infrared (PIR) sensor stick that gives your Tiny FX projects the ability to trigger effects when motion is detected.

Select an option:

  • Default Title

PIR Stick for Tiny FX

A passive infrared (PIR) sensor stick that gives your Tiny FX projects the ability to trigger effects when motion is detected.

Humans and other warm objects emit heat in the form of IR radiation. This sensor uses changes in IR radiation to detect motion in front of it, and sends out a simple digital signal that can be read by any microcontroller.

We designed PIR Stick to handle the very important business of triggering motion effects on our Tiny FX models so it comes with a cable that will let you plug it straight in to the three pin connector on Tiny FX. If you're planning on using it with another microcontroller, you'll probably want to pick up a JST-SH to DuPont cable to connect it up*. We also have loooooong JST-SH to JST-SH cables available if you want to position your PIR Stick further away from your model.

Click here to view everything Tiny FX!

Pinout and Schematic

  • '+': Power In (3.7 V max)
  • 'OUT': Data
  • '-': Ground
  • Schematic

Features

  • Senba S18-L262B-2 Digital Pyroelectric Infrared Sensor (Datasheet)
  • Onboard potentiometer for sensitivity adjustment (clockwise to increase, anti-clockwise to decrease)
  • Includes 3 pin JST-SH cable (150mm long, approx)
Input voltage 2.2 V – 3.7 V
Current (max) 14 µA
Logic output 3.3 V / 0 V
Delay time 0 s
Lock time 2 s
Field of view 80 ° H, 55 ° V (stick oriented vertically)
Sensing range 3 - 5 m



Notes

  • * PIR Stick has no reverse polarity protection, so if you've wired it up yourself double check your wiring to make sure power is connected to + and ground is connected to -. It will get quite hot very quickly if you get the polarity wrong!
  • The sensor has a preferred detection direction. For best results in a typical room, orient the stick vertically so that it can detect motion passing it horizontally.
