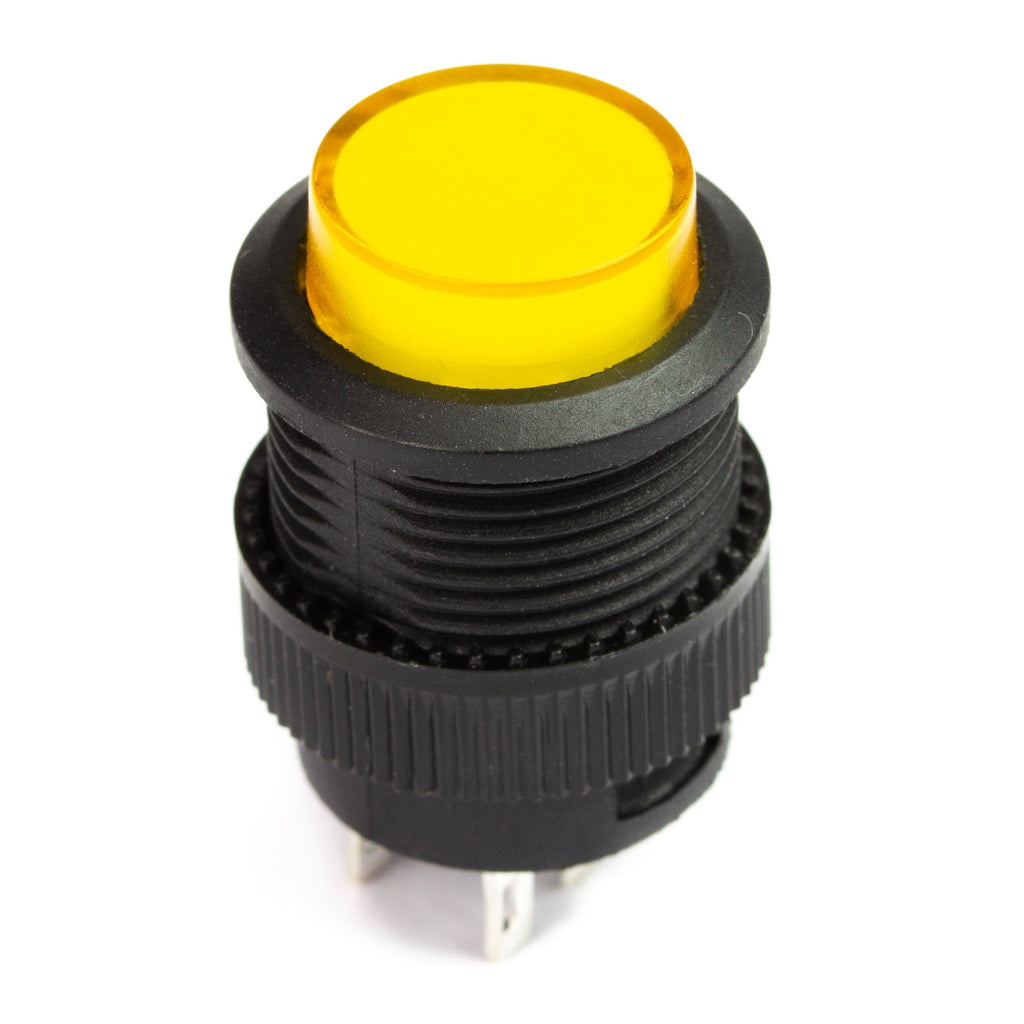

A 16mm yellow/orange illuminated momentary button that's ideal as a power button for our Picade X HAT, or just for situations when you need a small illuminated button.
Features
- Momentary switch
- Yellow/orange translucent cap with LED
- 2.8mm spade connectors for switch
- 2.8mm spade connectors for LED (polarity marked on underside of switch)
- 16mm diameter
- Screw-fit
- Datasheet
Notes
- Suitable for mounting in panels up to ~10mm thick
- Overall depth (including spades): 30mm
- Hole diameter: 16mm
- Cap dimensions: 13mm diameter, 3.5mm high
- Button fascia diameter: 18mm
- Ensure that you use a suitable current-limiting resistor for the LED
- Forward voltage is approx. 2.2v, we power it from the 3v3 on the Pi and use a 330 ohm resistor.
