A widescreen, full HD (1920x1080), 14" HDMI display that's great for DIY builds like arcade cabinets or pinball tables, or just as a big desktop display.

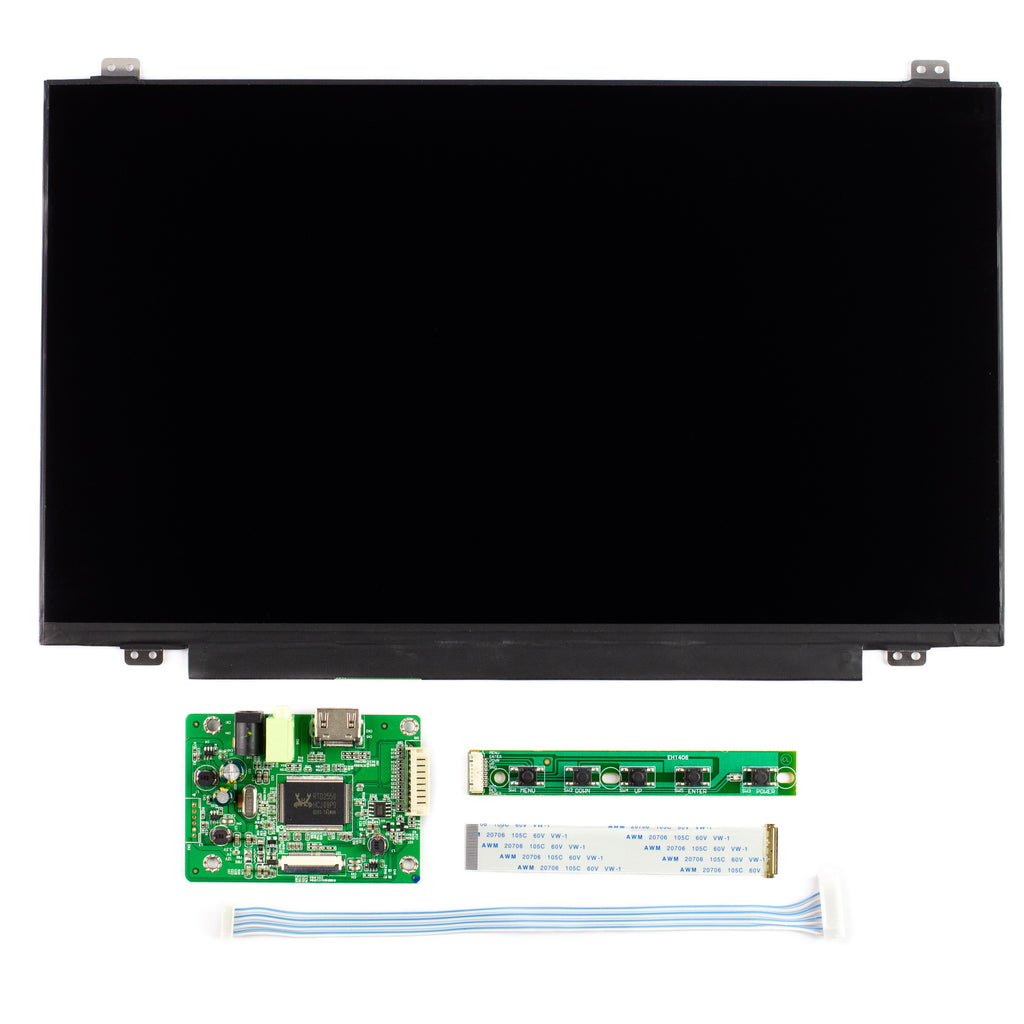

This kit comes with the display itself, driver board with ribbon cable, and a keypad with cable to control the display. Just supply your own 12V/1A barrel jack (5.5 / 2.5mm, centre-positive) power supply, and an HDMI cable, and you're good to go!
Display features
- 1920x1080 resolution (16:9)
- ADS, wide-viewing angle display (170°)
- 60Hz refresh rate
- Contrast ratio: 800:1 (white:black)
- Brightness: 250 cd/m2 (nits)
- Matte anti-glare finish
- Outer dimensions: 315.9×197.57x2.85mm
- Screen area: 309.31×173.99mm
- Weight: 280g
Display driver board features
- HDMI input
- Power socket: 12V/1A barrel jack (5.5 / 2.5mm, centre-positive)
- Driver board dimensions: 77.5x58x15mm
- Keypad dimensions: 108x15x9mm
