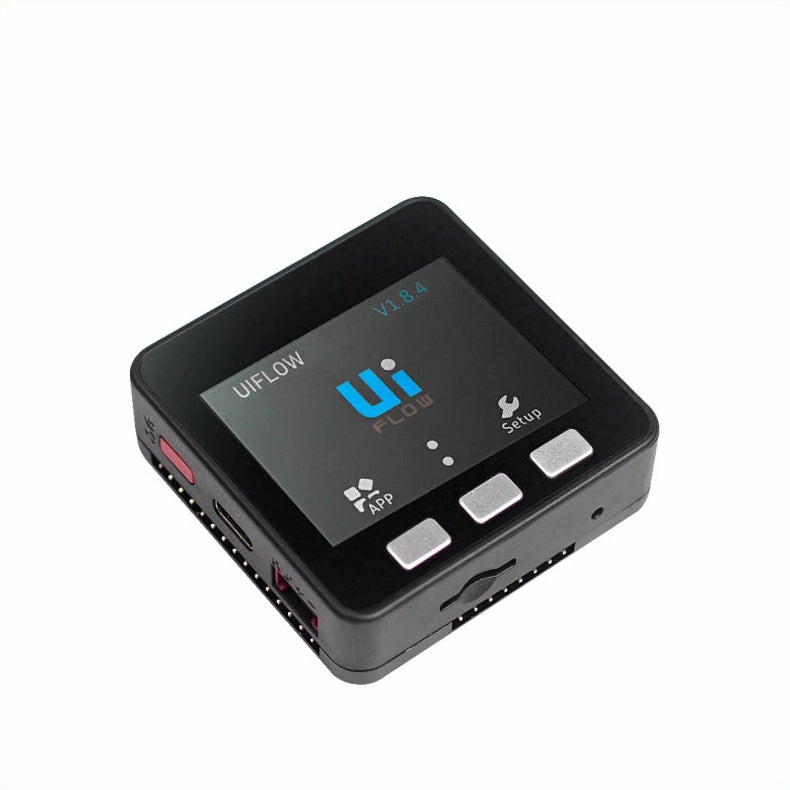

ESP32 Basic Core IoT Development Kit V2.6

Name: ESP32 Basic Core IoT Development Kit V2.6
Brand: M5Stack
SKU: K001-V26
Price: 37.80 GBP
Availability: OutOfStock

by M5Stack

BASIC is a cost-effective entry-level IoT main controller.

It uses the Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with main frequency up to 240MHz.

Built-in 16M FLASH memory, integrated 2.0-inch full-color HD IPS display panel, speaker, TFCard slot and other peripherals.

The full-coverage housing ensures circuit stability even in complex industrial applications. Internal provides a variety interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. Ideal for a variety of product prototyping, industrial control, intelligent building application.

High productization:

Exquisite designs, Prototyping right into products
Product-grade full-coverage cover for more stable circuit operation

Low Code Development:

Support UIFlow graphical programming platform, scripting-free, cloud push
Fully compatible with mainstream development platforms such as Arduino and ESP32-IDF
Support FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.

High Integration:

2.0 inch IPS display panel, speakers, custom buttons x3
Built-in lithium battery power, integrated power management chip, support TypeC interface
Finely tuned RF circuit for stable and reliable wireless communication

Strong Expandability:

15x IO leads
Easy access to M5Stack's hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion

Power on/off operation:

Power on: Click the red power button on the left
Shutdown: Quickly double-click the red power button on the left
*USB power supply *: By default, when USB is powered, it cannot be shut down

Driver Installation

Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CP210X (for CP2104 version)/CP34X (for CH9102 version) driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. (If you are not sure which USB chip your device uses, you can install two drivers at the same time. During the installation process of CH9102_VCP_SER_MacOS, an error may occur, but the installation is actually completed, just ignore it.)

Driver name	Applicable driver chip	Download link
CP210x_VCP_Windows	CP2104	Download
CP210x_VCP_MacOS	CP2104	Download
CP210x_VCP_Linux	CP2104	Download
CH9102_VCP_SER_Windows	CH9102	Download
CH9102_VCP_SER_MacOS	CH9102	Download

Features

Based on ESP32 development
16M FLASH
Integrated full-color high-definition IPS display panel and a variety of hardware peripherals
Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.
Use M5CORE BOTTOM base built-in lithium battery, 15x IO leads.
Compatible with multi-platform development:

Included

1x BASIC
10x Dupont line
1x Type-C USB(20cm)
1x manual
1x sticker

Specifications

Specifications	Parameters
ESP32-D0WDQ6-V3	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash	16MB
Input power	5V @ 500mA
Interface	TypeC x1, I2C x1
IO	G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
Button	Physical button x 3
LCD screen	2.0"@320*240 ILI9342C IPS panel, maximum brightness 853nit
Speaker	1W-0928
USB chip	CH9102F
Antenna	2.4G 3D Antenna
Battery	110mAh @ 3.7V
Net weight	47.2g
Gross weight	93g
Product size	54mm x 54mm x 18mm
Packing size	95 x 65 x 25mm
Cover Material	Plastic ( PC )

BASIC is a cost-effective entry-level IoT main controller.
