Adafruit TCS3430 / TCS34303 Ambient Tri-Stimulus Color Sensor

by Adafruit

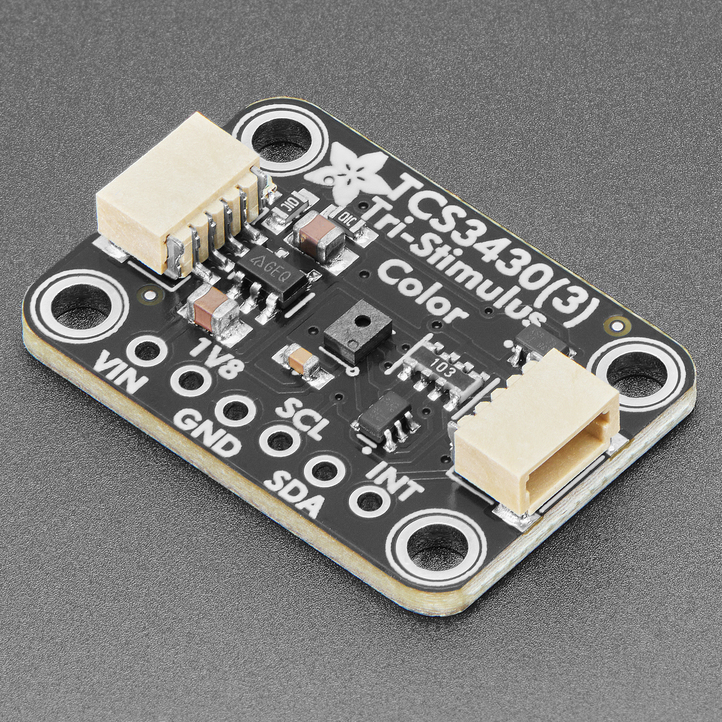

An image of Adafruit TCS3430 / TCS34303 Ambient Tri-Stimulus Color Sensor An image of Adafruit TCS3430 / TCS34303 Ambient Tri-Stimulus Color Sensor An image of Adafruit TCS3430 / TCS34303 Ambient Tri-Stimulus Color Sensor An image of Adafruit TCS3430 / TCS34303 Ambient Tri-Stimulus Color Sensor An image of Adafruit TCS3430 / TCS34303 Ambient Tri-Stimulus Color Sensor

The Adafruit TCS3430 /  TCS34303 (both names are used) Ambient Light Tri-Stimulus Color Sensor is a modern take on the common 'RGB' color sensor: this time with CIE XYZ plus IR diode sensors rather than RGB, so you can match it to your existing color space.

It acts a bit differently than the color sensors folks are used to, where there are sensors at wavelengths 437nm (X1), 574nm (X2), 537nm (Y) and 434nm (Z) and then the user is expected to calibrate it against a known color space analyzer for their application. For folks that want something that just spits out CIE and Lux data, the OPT4048 is more complete however, there may be some use cases for people who want the raw count data only!

To make the sensor easy to use, we've taken the TCS34303 and put it onto a breakout PCB along with support circuitry to let you use this little wonder with 3.3V (Feather/Raspberry Pi) or 5V (Arduino/ Metro328) logic levels. Additionally since it speaks I2C you can easily connect it up with two wires (plus power and ground!).  We've even included SparkFun qwiic compatible STEMMA QT connectors for the I2C bus so you don't even need to solder!

Just wire up to your favorite micro and you can use our CircuitPython/Python or Arduino drivers to easily interface with the TCS34303 and get XYZ+IR color readings in a minute! QT Cable is not included, but we have a variety in the shop.

Technical Details

RoHS 2 2011 65 EU Compliant

RoHS 2 2015 863 EU Compliant

Learn

  • Primary Guide: Adafruit TCS3430 / TCS34303 Ambient Tri-Stimulus Color Sensor
    The Adafruit TCS3430 / TCS34303 (both names are used) Ambient Light Tri-Stimulus Color Sensor is a modern take on the common RGB color sensor: this time with CIE XYZ plus IR diode sensors rather than RGB, so you can match it to your existing color space.
  • See All Guides

Reviews

User photos

The Adafruit TCS3430 /  TCS34303 (both names are used) Ambient Light Tri-Stimulus Color Sensor is a modern take on the common 'RGB' color sensor: this time with CIE XYZ plus IR diode sensors rather than RGB, so you can match it to your existing color space.

ADA6479

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA6479
EAN
Brand
Adafruit
Stock available
20+ units
Backorder not allowed on this product
Weight
4g

Video introduction
