Adafruit ANO Rotary Navigation Encoder to I2C Stemma QT Adapter with Pre-Soldered Encoder

Name: Adafruit ANO Rotary Navigation Encoder to I2C Stemma QT Adapter with Pre-Soldered Encoder
Brand: Adafruit
SKU: ADA6310
Price: 13.20 GBP
Availability: OutOfStock

by Adafruit

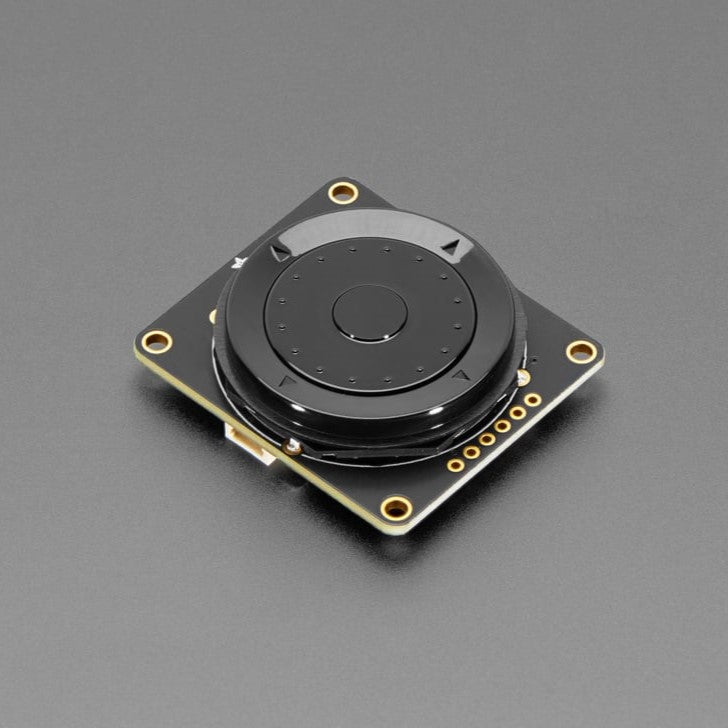

This pre-soldered breakout lets you add a funky ANO rotary encoder wheel to your project. It has a Stemma QT connector for easy I2C connectivity.

The ANO rotary encoder wheel is a funky user interface element, reminiscent of the original clicking scroll wheel interface on the first iPods. It's a nifty kit, but the pin-out is a little odd - and there are a ton of pins needed to connect to the rotary encoder and five button switches.

This Stemma QT breakout makes all that frustration go away. The onboard microcontroller is programmed with our seesaw firmware and will track all pulses and pins for you and then save the incremental value for querying at any time over I2C. Plug it in with a Stemma QT cable for instant rotary goodness, with any kind of microcontroller from an Arduino UNO up to a Raspberry Pi to one of Adafruit's QT Py's.

This version of the board has a rotary encoder already soldered for instant gratification (and no soldering required)

You can use the Arduino library to control and read data with any compatible microcontroller. Adafruit also have CircuitPython/Python code for use with computers or single-board Linux boards.

Power with 3 to 5V DC, and then use 3 or 5V logic I2C data. The INT pin can be configured to pulse low whenever rotation or push-buttoning is detected, so you do not have to spam-read the I2C port to detect motion. It's also easy to add this breakout to a breadboard - with six 0.1"-spaced breakout pads - if you so choose.

Four solder jumpers can be used to change the I2C address - up to 16 can share one I2C bus! If you happen to need more, it's possible to set the I2C address with a special address-change command that is saved to the onboard non-volatile EEPROM memory.

Please note that the seesaw chip cannot handle high-speed motor encoders; this is for 'hand rotated' mechanical encoders only.
