4.2" 300x400 Monochrome or 4-Gray eInk / ePaper - Bare Display - SSD1683

Name: 4.2" 300x400 Monochrome or 4-Gray eInk / ePaper - Bare Display - SSD1683
Brand: Adafruit
SKU: ADA6381
Price: 23.10 GBP
Availability: OutOfStock

by Adafruit

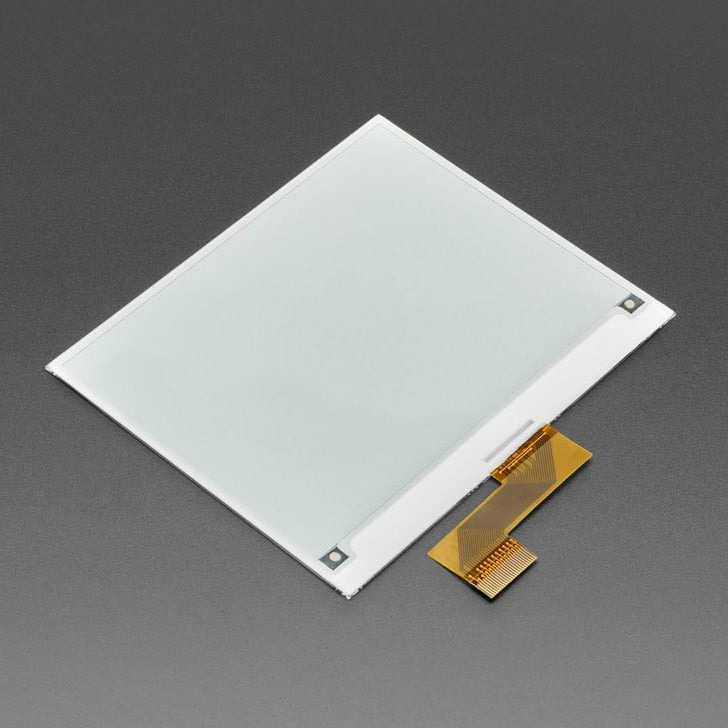

For folks who want to DIY their own E-Ink setups, this is a 4.2" diagonal Monochrome or 4-level Grayscale eInk / ePaper Bare Display with 400 x 300 pixels.

E-Ink/E-Paper displays make for great low-power displays that are daylight visible and keep their image even when depowered.

Chances are you've seen one of those new-fangled 'e-readers' like the Kindle or Nook. They have gigantic electronic paper 'static' displays - that means the image stays on the display even when power is completely disconnected. The image is also high contrast and very daylight readable. It really does look just like printed paper!

Please note: this is the bare display element. You need to plug it into a board with a 'standard' 24-pin FPC e-paper connector. We recommend checking out and picking up a matching driver board:

Feather RP2040 ThinkInk - solderless plug-and-play solution with Arduino or CircuitPython support. Definitely the easiest way to get started, and is what we show in the demo above
eInk Feather Friend - FeatherWing add-on for any Feather board)
eInk Breakout Friend - breadboard-friendly adapter that gives you level-shifting and components for quick eInk connectivity.
24-pin eInk / ePaper Extension Cable + 24-pin FPC adapter - both together will give your eInk display a stretch so you can place it anywhere.

This is a 4.2" monochrome/4gray display. It has 400x300 black ink pixels and a white-ish background. It uses the SSD1683 chipset, so make sure whatever firmware code you are planning to use has support for it. The Arduino library we wrote does all the work for you, you can just interface with it as if it were an Adafruit_GFX compatible display.

Note that you can put this display into a '4-gray' mode, where you get two extra monochromatic shades. It's not officially supported by the display but it does kinda work. Check out our guide on dithering for how to get the best output from these panels.

Technical Details

Datasheet

RoHS 2 2011 65 EU Compliant RoHS 2 2015 863 EU Compliant

Learn

Primary Guide: Bare E-Ink Displays Crash Course
What's the deal with all of these eInk displays?
See All Guides

For folks who want to DIY their own E-Ink setups, this is a 4.2" diagonal Monochrome or 4-level Grayscale eInk / ePaper Bare Display with 400 x 300 pixels.

ADA6381

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU

ADA6381

EAN

Brand

Adafruit

Stock available

0 units
Backorder not allowed on this product

Weight

22g
