A small 3.7V/4.2V LiPo Charger with a USB Type-C Plug, no cables needed!

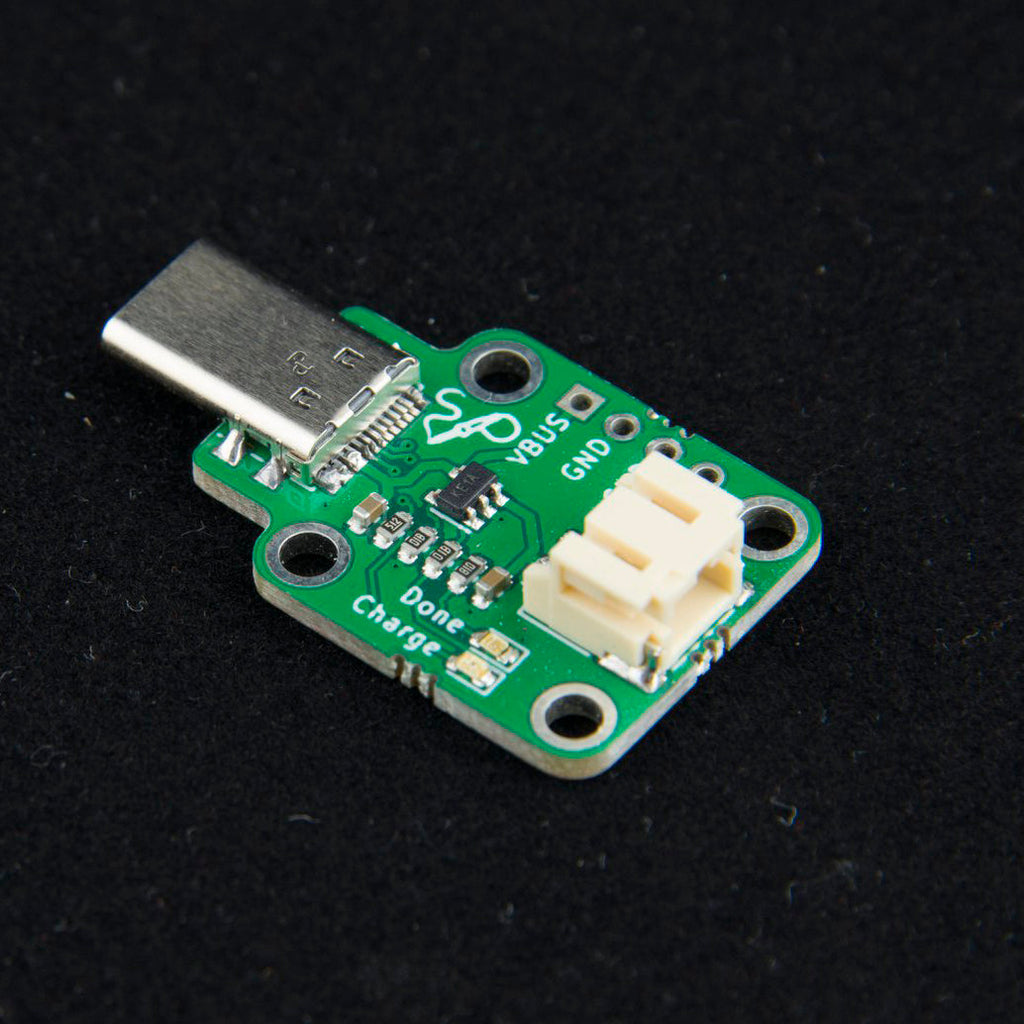

This board can be used to charge 3.7V/4.2V lithium polymer (LiPo) and lithium ion (LiIon) batteries. The JST connector is very common for these kinds of batteries. You can also use the header pins to skip the connector and charge the battery that way.
The two LEDs show the status of the charging process. While the battery is charging, the "Charge" (orange) LED is on, once the battery is fully charged the "Done" (green) LED lights up. It is normal for either or both LEDs to be on if no battery is connected.
See the MCP73831 datasheet for more details about the charging process.
By default the battery is charged with 500mA, if you want to change the charge current you can change the R2 resistor. See the schematics or the datasheet for more information.
What do you get
- An assembled LiPo battery charger board with a USB Type-C Plug
- A male pin header
