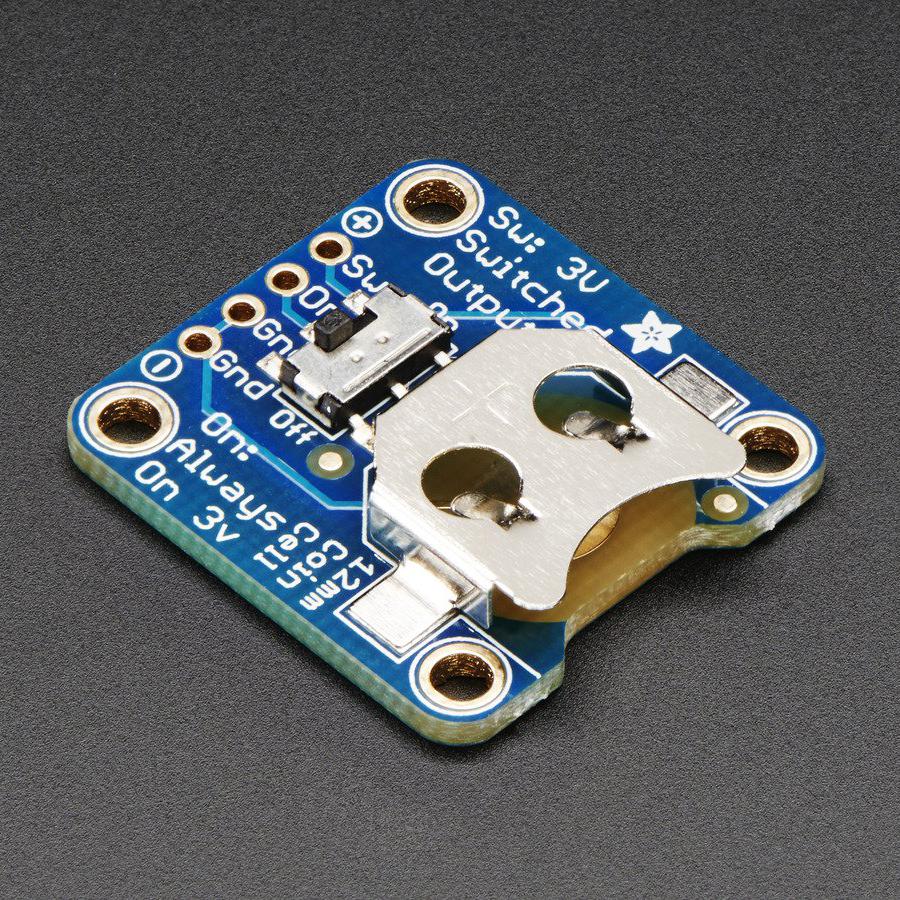

12mm Coin Cell Breakout w/ On-Off Switch

by Adafruit
An image of 12mm Coin Cell Breakout w/ On-Off Switch An image of 12mm Coin Cell Breakout w/ On-Off Switch An image of 12mm Coin Cell Breakout w/ On-Off Switch An image of 12mm Coin Cell Breakout w/ On-Off Switch

Simple but effective - this breakout board has a CR1220 coin cell battery holder soldered on, an on/off switch and 0.1" pitch breakout pins for easy connecting. Great for powering very low-current projects, or adding a battery backup circuit to a real-time-clock or similar. There's two ground pins, one 'switched' power pin, and one pin that is always on.

Comes with one fully assembled and tested breakout plus a small stick of 0.1" header so you can solder it on and plug into a breadboard.

TECHNICAL DETAILS

  • EagleCAD PCB files on GitHub
  • Fritzing object in the Adafruit Fritzing library

Dimensions:

  • 25mm x 23mm x 1.5mm / 1" x 0.9" x 0.06"
  • Mounting hole distance: 18mm x 19.8mm / 0.7" x 0.78"
  • Weight: 2g

Reviews

User photos

Simple but effective - this breakout board has a CR1220 coin cell battery holder soldered on, an on/off switch and 0.1" pitch breakout pins for easy connecting. Great for powering very low-current projects, or adding a battery backup circuit to a real-time-clock or similar. There's two ground pins, one 'switched' power pin, and one pin that is always on.

ADA1867

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA1867
EAN
0606034879591
Brand
Adafruit
Stock available
0 units
Backorder not allowed on this product
Weight
5g
