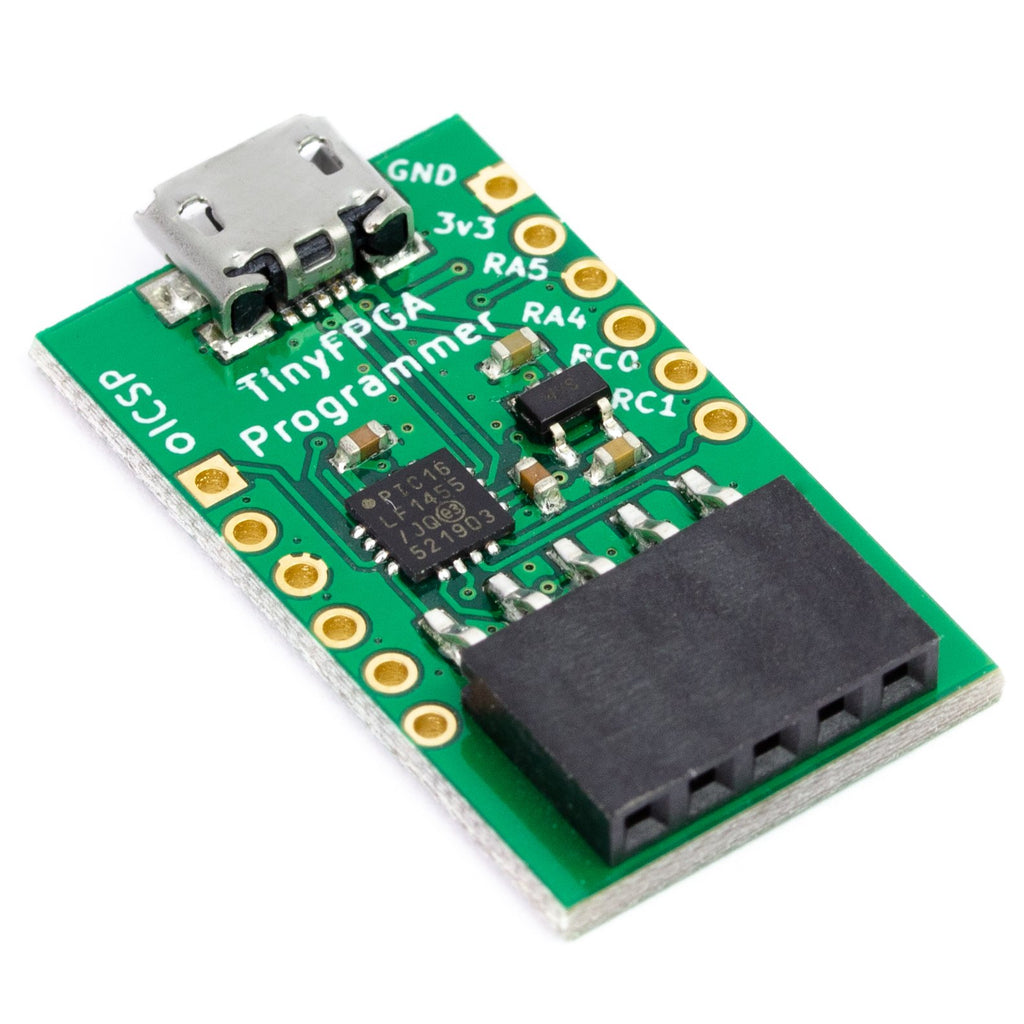

TinyFPGA Programmer

by TinyFPGA
An image of TinyFPGA Programmer An image of TinyFPGA Programmer An image of TinyFPGA Programmer An image of TinyFPGA Programmer An image of TinyFPGA Programmer An image of TinyFPGA Programmer An image of TinyFPGA Programmer An image of TinyFPGA Programmer

A convenient and inexpensive USB JTAG programmer for TinyFPGA A1 and A2 boards.

One of the goals of the TinyFPGA boards is to make FPGAs cheaper to use. The TinyFPGA A1 and TinyFPGA A2 boards aresp the first TinyFPGA boards and are designed to be the least expensive. As such, they do not include a built-in USB interface as that would increase the cost and complexity too much. Instead they rely on JTAG programmers.

Here comes the TinyFPGA Programmer. Rather than an FTDI2232 USB interface chip it uses a PIC16F1455 USB microcontroller. While not compatible with the FTDI2232 chip, the PIC micro has a much lower BOM cost allowing the programmer hardware to be cheaper.

The TinyFPGA Programmer slots onto the JTAG pins of the A-series FPGA boards. Using the TinyFPGA Programmer Application you can program .jed files generated by Lattice Diamond.

For more information on how to use the TinyFPGA Programmer with the A-series boards, see the A-Series Userguide at TinyFPGA.com

Reviews

User photos

A convenient and inexpensive USB JTAG programmer for TinyFPGA A1 and A2 boards.

TFPGA-001

This product is no longer available

It's sad to say goodbye but sometimes we have to retire products to make way for new things.

SKU
TFPGA-001
EAN
0769894015810
Brand
TinyFPGA
Stock available
0 units
Backorder not allowed on this product
Weight
5g
