Teensy 3.5 / 3.6 – Teensy 3.6

by PJRC

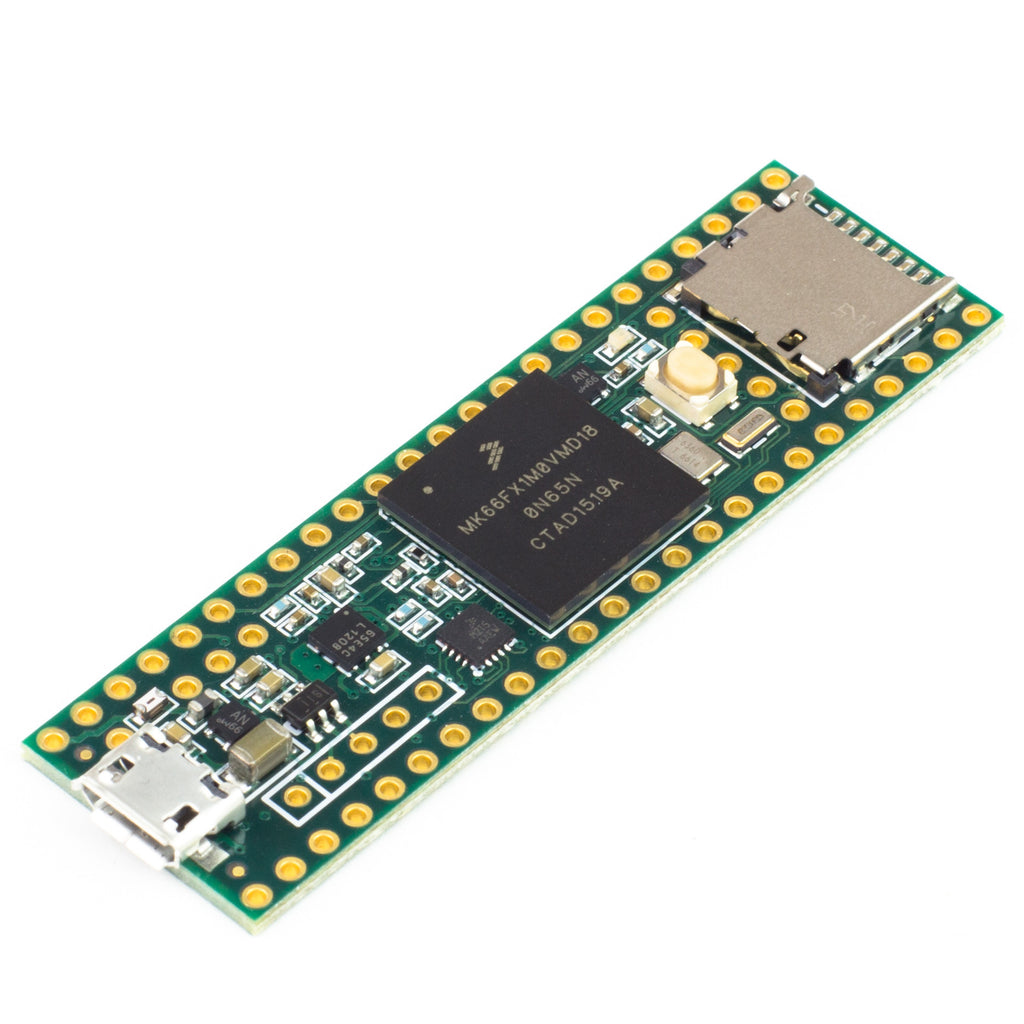

An image of Teensy 3.5 / 3.6 An image of Teensy 3.5 / 3.6 An image of Teensy 3.5 / 3.6 An image of Teensy 3.5 / 3.6 An image of Teensy 3.5 / 3.6

Teensy is a microcontroller development board used for building all sorts of awesome DIY electronic projects.

The Teensy 3.5 & 3.6 use far more powerful microcontroller chips; a huge step up in capability from prior Teensy and other Arduino compatible boards.

The pin assignments have been designed to preserve compatibility with the 28 breadboard-friendly pins of prior Teensy 3.x models.  All 28 of these pins support the same features as the older models.

More I/O pins are available at small surface mount pads on the back side. The 6th serial port, 4th I2C port and 3rd SPI port are on these pins. They're not as easy to access as the main 42 through-hole pins on the outside edge, but for projects where you really need access to a huge number of I/O signals or those extra communication ports, these boards do give you a way to access them (but keep the board to a reasonably small "Teensy" size).

Teensy 3.6 has a second USB port which is capable of 480 Mbit/sec speed. It's intended to used in USB host mode, so you can connect USB devices like a keyboard or memory stick. This USB port is accessed using 5 pins, which are compatible with the commonly available internal PC cables for USB.

The Arduino IDE is the primary method used to program Teensy. Like prior models, the goal for Teensy is the best possibility compatibility with all Arduino functions and widely used libraries.

Technical Features & Specifications

  • 62 I/O Pins (42 breadboard friendly)
  • 25 Analog Inputs to 2 ADCs with 13 bits resolution
  • 2 Analog Outputs (DACs) with 12 bit resolution
  • 20 PWM Outputs (Teensy 3.6 has 22 PWM)
  • USB Full Speed (12 Mbit/sec) Port
  • Ethernet mac, capable of full 100 Mbit/sec speed
  • Native (4 bit SDIO) micro SD card port
  • I2S Audio Port, 4 Channel Digital Audio Input & Output
  • 14 Hardware Timers
  • Cryptographic Acceleration Unit
  • Random Number Generator
  • CRC Computation Unit
  • 6 Serial Ports (2 with FIFO & Fast Baud Rates)
  • 3 SPI Ports (1 with FIFO)
  • 3 I2C Ports (Teensy 3.6 has a 4th I2C port)
  • Real Time Clock

Board Specific Features

Teensy 3.6 Teensy 3.5
180 MHz ARM Cortex-M4 with Floating Point Unit 120 MHz ARM Cortex-M4 with Floating Point Unit
1M Flash, 256K RAM, 4K EEPROM 512K Flash, 192K RAM, 4K EEPROM
Microcontroller Chip MK66FX1M0VMD18 Microcontroller Chip MK64FX512VMD12
2 CAN Bus Ports 1 CAN Bus Port
32 General Purpose DMA Channels 16 General Purpose DMA Channels
All digital and analog pins are 3.3 volts. Do not apply more than 3.3V to any signal pin. 5 Volt Tolerance On All Digital I/O Pins
USB High Speed (480 Mbit/sec) Port
22 PWM Outputs
4 I2C Ports
11 Touch Sensing Inputs

Reviews

User photos

Teensy is a microcontroller development board used for building all sorts of awesome DIY electronic projects.

TEENSY 3.6

Product options

  • Teensy 3.6 Out of stock
  • Teensy 3.5 Out of stock

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
TEENSY 3.6
EAN
0704256799786
Brand
PJRC
Stock available
0 units
Backorder not allowed on this product
Weight
6g
Version
Teensy 3.6
