SparkFun Qwiic SHIM for Raspberry Pi

by Sparkfun

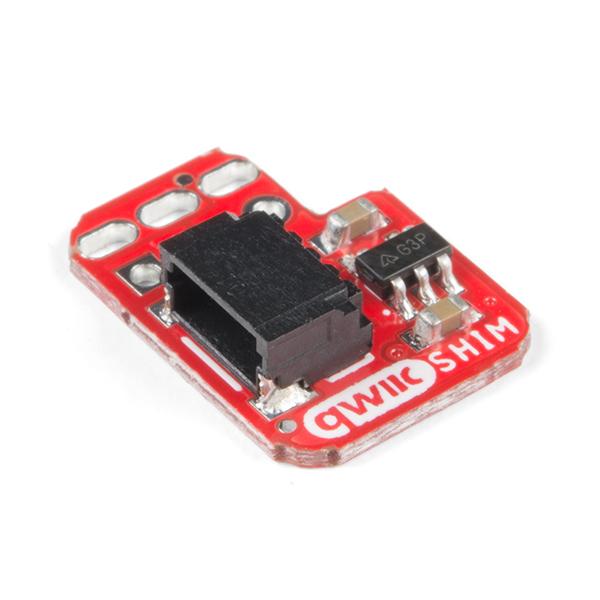

An image of SparkFun Qwiic SHIM for Raspberry Pi An image of SparkFun Qwiic SHIM for Raspberry Pi An image of SparkFun Qwiic SHIM for Raspberry Pi An image of SparkFun Qwiic SHIM for Raspberry Pi An image of SparkFun Qwiic SHIM for Raspberry Pi

The SparkFun Qwiic SHIM for Raspberry Pi is a small, easily removable breakout that easily adds a Qwiic connector to your Raspberry Pi.

The SHIM design allows you to plug directly to the Pi's I2C bus with no soldering required and the thin PCB design allows for it to be sandwiched on your Pi GPIO with other HATs!

The Qwiic SHIM works great when you do not need the full capabilities of the Qwiic pHAT for Raspberry Pi or if you want to add a Qwiic connector to your Pi but do not have room for yet another HAT.

The Qwiic SHIM uses a unique friction-based connector that wedges itself onto the GPIO header for a secure, solderless connection. As you would expect, it has a single Qwiic connector that connects to your Pi's I2C bus (SDA, SCL, 5V and Ground). The SHIM also has a 3.3V regulator so it will work with all Qwiic devices. Even better, the SparkFun Qwiic SHIM will also work with the NVIDIA Jetson Nano Developer Kit!

The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get started with the Qwiic Pi SHIM guide

Features

  • Small Form Factor
  • HAT Stackable
  • Fits inside Protective Case
  • No Soldering Required
  • Qwiic Connector

Documents

  • Schematic
  • Eagle Files
  • Board Dimensions
  • Hookup Guide
  • GitHub Hardware Repo

Reviews

User photos

The SparkFun Qwiic SHIM for Raspberry Pi is a small, easily removable breakout that easily adds a Qwiic connector to your Raspberry Pi.

DEV-15794

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
DEV-15794
EAN
845156010080
Brand
Sparkfun
Stock available
0 units
Backorder not allowed on this product
Weight
1g
