SparkFun Qwiic Shield for Arduino Nano

by Sparkfun
An image of SparkFun Qwiic Shield for Arduino Nano An image of SparkFun Qwiic Shield for Arduino Nano An image of SparkFun Qwiic Shield for Arduino Nano An image of SparkFun Qwiic Shield for Arduino Nano An image of SparkFun Qwiic Shield for Arduino Nano

The SparkFun Qwiic Shield for Arduino Nano provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Arduino Nano board.

The Qwiic shield connects the I2C bus (GND, 3.3V, SDA and SCL) on your Arduino Nano to four SparkFun Qwiic connectors (two horizontally and two vertically mounted). The Qwiic connect system allows for easy daisy chaining so long as your devices are on different addresses, you can connect as many Qwiic devices as you would like.

The Qwiic Shield for Arduino Nano comes with two, 15-pin female stackable headers. You will need to solder the headers on to the shield and, if necessary, to your Arduino Nano yourself. Take care to match the markings on the Qwiic Shield to the appropriate pins on your Nano to avoid possibly damaging your boards.

The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get started with the SparkFun Qwiic Shield for Arduino Nano guide

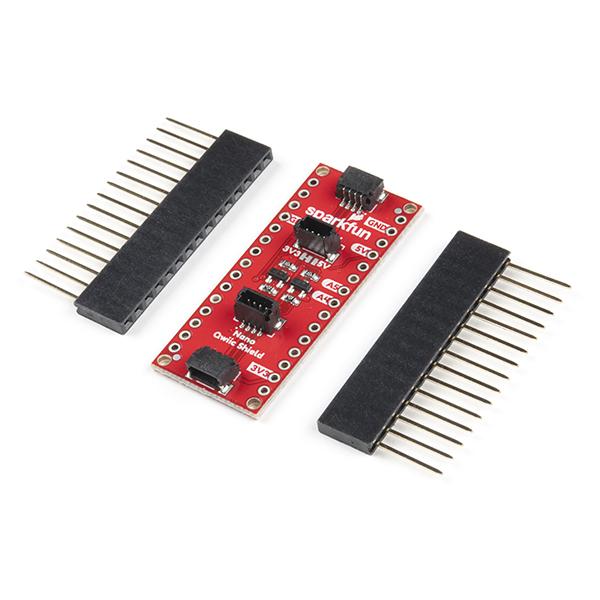

Includes

  • 1x SparkFun Qwiic Shield for Arduino Nano
  • 2x Arduino Nano 15-pin Stackable Headers - New with this revision!

Features

  • Arduino Nano Footprint Compatible
  • 4x Qwiic Connection Ports
  • Logic Shifting Circuit and IOREF Jumper
  • I2C Jumper
  • 3.3V and GND Buses

Documents

  • Schematic
  • Eagle Files
  • Hookup Guide
  • Board Dimensions
  • Headers Datasheet
  • Qwiic Info Page
  • GitHub Hardware Repo

Reviews

User photos

The SparkFun Qwiic Shield for Arduino Nano provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Arduino Nano board.

DEV-16789

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
DEV-16789
EAN
845156010554
Brand
Sparkfun
Stock available
0 units
Backorder not allowed on this product
Weight
8g
