SparkFun Qwiic Motor Driver

by Sparkfun
An image of SparkFun Qwiic Motor Driver An image of SparkFun Qwiic Motor Driver An image of SparkFun Qwiic Motor Driver An image of SparkFun Qwiic Motor Driver

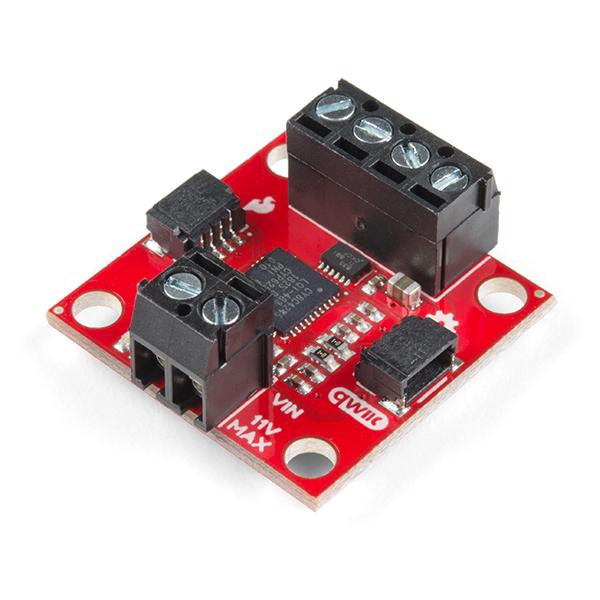

The SparkFun Qwiic Motor Driver takes all the great features of the Serial Controlled Motor Driver (SCMD) and miniaturizes them, adding Qwiic ports for plug and play functionality.

Boasting the same 4245 PSOC and 2-channel motor ports as the SCMD, the SparkFun Qwiic Motor Driver is designed to communicate over I2C to make setting up your next robotic project as fast and easy as possible! Utilizing the handy Qwiic system and screw terminals for motor and power hook-up, no soldering is required to connect it to the rest of your system.

With 1.2A steady state drive per channel (1.5A peak) and 127 levels of DC drive strength, this little Qwiic board is perfect for your small DC motor driver needs. Since the Qwiic Motor Driver is a 3.3V logic device, you'll need to use a logic level converter to interface to 5V.

The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Features

  • 1.5 A peak drive per channel, 1.2 A steady state
  • Operates from 3 to 11 Volts with 12V absolute max
  • 3.3V default VCC and logic
  • 127 levels of DC drive strength.
  • Controllable by I2C or TTL UART signals
  • Direction inversion on a per motor basis
  • Global Drive enable
  • Exposed small heat sink shape
  • Several I2C addresses, default UART bauds available
  • Adjustable I2C Address: 0x5D Default
  • 2x Qwiic Connectors

Documents

  • Schematic
  • Eagle Files
  • Board Dimensions
  • Hookup Guide
  • Arduino Library
  • Python Library
  • Github Hardware Repo

Reviews

User photos

The SparkFun Qwiic Motor Driver takes all the great features of the Serial Controlled Motor Driver (SCMD) and miniaturizes them, adding Qwiic ports for plug and play functionality.

ROB-15451

This product is no longer available

It's sad to say goodbye but sometimes we have to retire products to make way for new things.

SKU
ROB-15451
EAN
845156009855
Brand
Sparkfun
Stock available
0 units
Backorder not allowed on this product
Weight
6g
