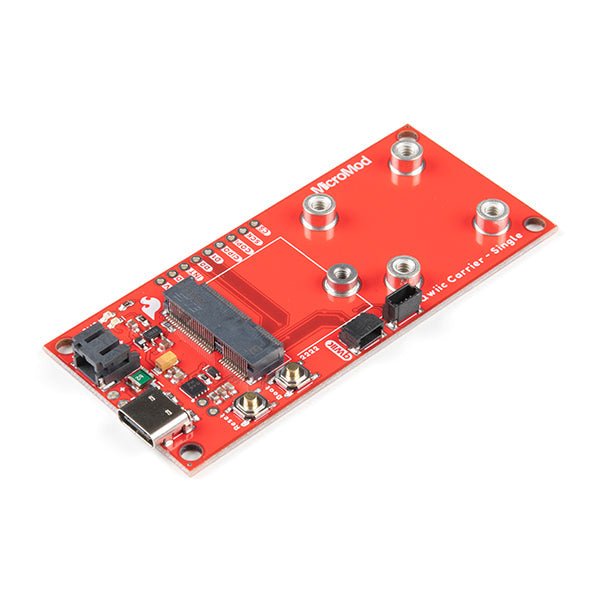

SparkFun MicroMod Qwiic Carrier Board - Single

by Sparkfun
An image of SparkFun MicroMod Qwiic Carrier Board - Single An image of SparkFun MicroMod Qwiic Carrier Board - Single An image of SparkFun MicroMod Qwiic Carrier Board - Single An image of SparkFun MicroMod Qwiic Carrier Board - Single An image of SparkFun MicroMod Qwiic Carrier Board - Single

The MicroMod Qwiic Carrier Board can be used to rapidly prototype with other Qwiic devices.

The MicroMod M.2 socket provides users the freedom to experiment with any processor board in the MicroMod ecosystem. This board also features two Qwiic connectors and four 4-40 screw inserts to connect and mount Qwiic devices.

This version of the SparkFun MicroMod Qwiic Carrier Board features a single port for our standard 1in. by 1in. Qwiic Breakouts. However, you aren't beholden to attaching just one Qwiic breakout since you are able to stack the boards on top of each other, allowing you to hook up a full circuit of Qwiic sensors and accessories to fully utilize your next project!

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Get started with the MicroMod Qwiic Carrier Board Guide

Includes

  • 1x MicroMod Qwiic Carrier Board - Single
  • 1x Phillips #0 M2.5x3mm screw

Features

  • M.2 MicroMod Connector
  • USB-C Connector
  • 3.3V 1A Voltage Regulator
  • Qwiic Connectors
  • Boot/Reset Buttons
  • Charge Circuit
  • Four 4-40 Inserts

Documents

Hardware Documentation:

  • Schematic
  • Eagle Files
  • Board Dimensions
  • Hookup Guide
  • Qwiic Info Page
  • GitHub Hardware Repo

MicroMod Documentation:

  • Getting Started with MicroMod
  • Designing with MicroMod
  • MicroMod Info Page
  • MicroMod Forums

Reviews

User photos

The MicroMod Qwiic Carrier Board can be used to rapidly prototype with other Qwiic devices.

DEV-17723

This product is no longer available

It's sad to say goodbye but sometimes we have to retire products to make way for new things.

SKU
DEV-17723
EAN
845156011315
Brand
Sparkfun
Stock available
0 units
Backorder not allowed on this product
Weight
22g
