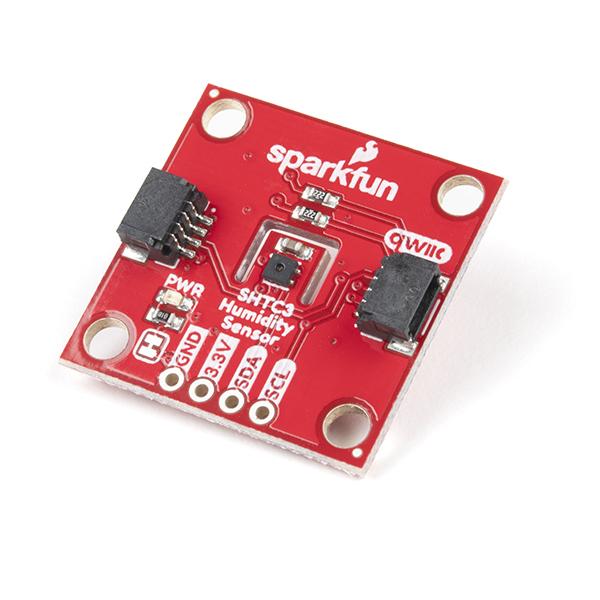

SparkFun Humidity Sensor Breakout - SHTC3

Name: SparkFun Humidity Sensor Breakout - SHTC3
Brand: Sparkfun
SKU: SEN-16467
Price: 9.90 GBP
Availability: OutOfStock

by Sparkfun

Looking to keep a log of the climate in your greenhouse, create a humidor control system or want to track temperature and humidity data for a weather station project? The SparkFun SHTC3 Humidity Sensor may be the perfect option for you!

The SHTC3 is a low cost, easy-to-use, highly accurate digital humidity and temperature sensor. The SHTC3 communicates via I²C so, as you can tell by the name, we have broken out the pins on the sensor to Qwiic connectors so you can easily connect it to SparkFun's ever growing Qwiic Ecosystem.

The SHTC3 digital humidity sensor builds on the success of their SHTC1 sensor with a broader supply voltage range (1.62V to 3.6V) and higher accuracy (±2% RH, ±0.2°C) than its predecessor, enabling greater flexibility. All you need are two lines for I²C communication, and you’ll have relative humidity readings and very accurate temperature readings as a bonus!

Hook up is a breeze as the breakout board is using the Qwiic connect system. The breakout board has built-in 2.2kΩ pullup resistors for I²C communications. If you’re hooking up multiple I²C devices on the same bus, you may want to disable these resistors.

Note: The I²C address of the SHTC3 is 0x70 and is hardware-defined. A multiplexer/Mux is required to communicate to multiple SHTC3 sensors on a single bus. If you need to use more than one SHTC3 sensor consider using the Qwiic Mux Breakout.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get started with the SparkFun SHTC3 Qwiic humidity guide

Features

Uses I²C interface (Qwiic-enabled)
- I²C Address: 0x70
- 2x Qwiic Connectors
Operating voltage range
- 1.62V - 3.6 V
- Typically 3.3V if using the Qwiic cable
Relative Humidity
- Operating range: 0% to 100%
- Typical accuracy: ±2 %RH
- Resolution: 0.01 %RH
Temperature
- Operating range: -40°C to +125 °C
- Typical accuracy: ±0.2 °C
- Resolution: 0.01 °C
Typical current consumption (varies based on mode)
- 4.9µA to 430µA (Normal Mode)
- 0.5µA to 270µA (Low Power Mode)

Documents

SEN-16467
