SparkFun Analog MEMS Microphone Breakout - ICS-40180

by Sparkfun

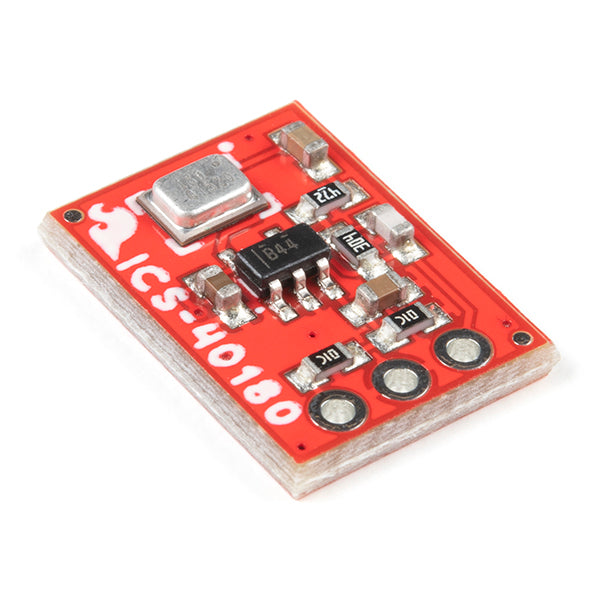

An image of SparkFun Analog MEMS Microphone Breakout - ICS-40180 An image of SparkFun Analog MEMS Microphone Breakout - ICS-40180 An image of SparkFun Analog MEMS Microphone Breakout - ICS-40180 An image of SparkFun Analog MEMS Microphone Breakout - ICS-40180

The SparkFun Analog MEMS Microphone Breakout makes it easy to work with the InvenSense ICS-40180 analog microphone.

This board features an OpAmp to bring output of the microphone to a usable level, allowing you to plug directly into an ADC on a microcontroller.

In addition to amplifying the signal, the OpAmp adds a bias voltage of 1/2 VCC. With sound sources such as a normal speaking voice a few feet away from the microphone, the AUD output signal will be at about 200mV peak-to-peak. Also note, this low profile microphone has its port on the bottom side, so the microphone can be mounted flush to the outer surface of your enclosure. This microphone is omni-directional, which means it does a good job of picking up sound sources from all directions.

Get started with the SparkFun Analog MEMS Microphone Guide

Features

  • -3dB roll off at 60Hz and 19.7kHz
  • 1.5VDC to 3.6VDC supply voltage
  • Should comfortably output 40mW
  • OPA344 provides 600Ω output impedance
  • SNR of 65dBA

Documents

  • Schematic
  • Eagle Files
  • Board Dimensions
  • Hookup Guide
  • Datasheet (ICS-40180)
  • GitHub Hardware Repo

Reviews

User photos

The SparkFun Analog MEMS Microphone Breakout makes it easy to work with the InvenSense ICS-40180 analog microphone.

BOB-18011

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
BOB-18011
EAN
845156011421
Brand
Sparkfun
Stock available
0 units
Backorder not allowed on this product
Weight
2g
