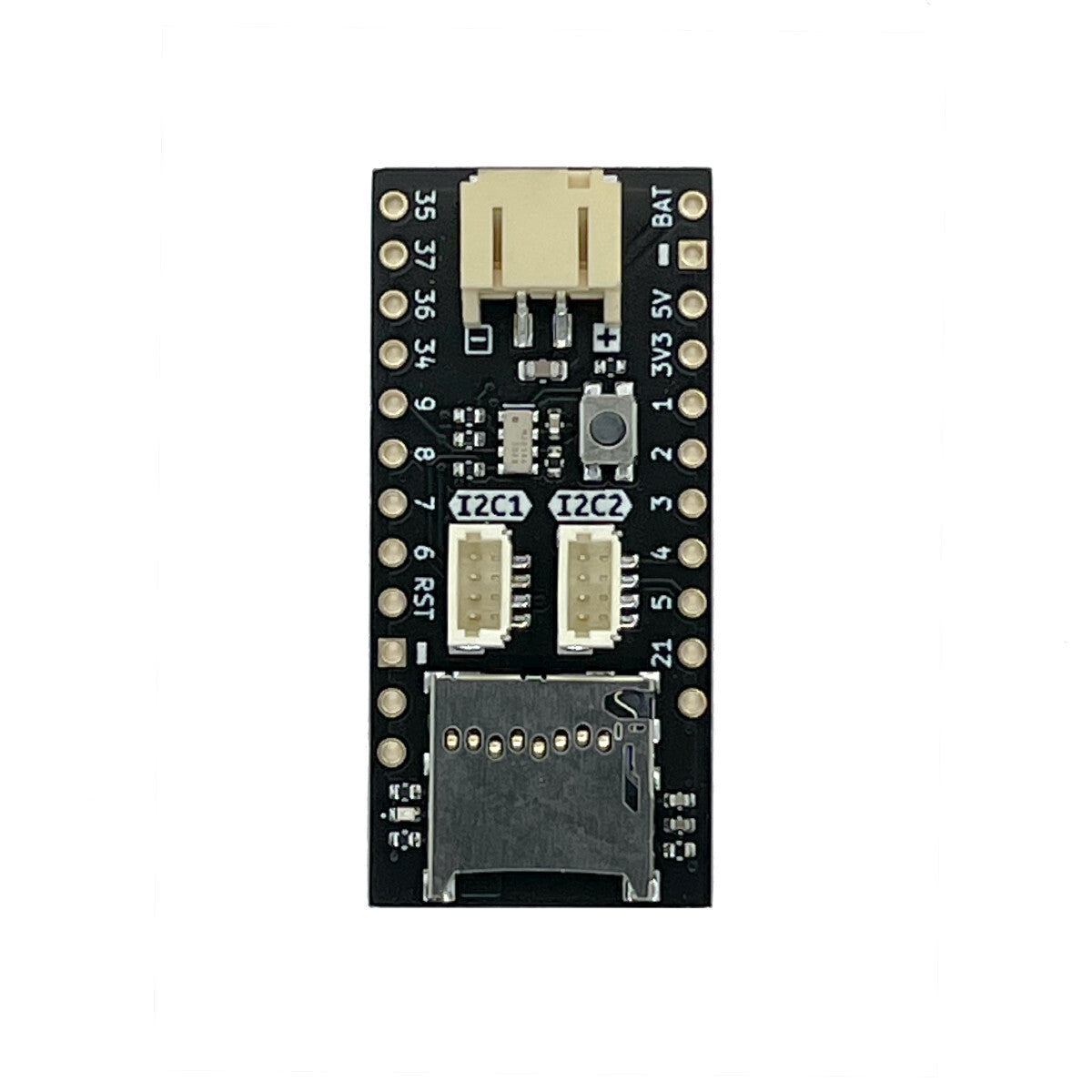

RTC Logger Shield for the TinyPICO, TinyS2, TinyS3 & TinyC6.
This shield includes an ultra low powered and super accurate RTC matched with a uSD Card reader and 2x STEMMA/QT connectors with separate IO for 2x I2C channels, or 1x I2C and 1x UART.
View all Unexpected Maker "Tiny" boards!
Features
- RV-3028-C7 ultra low power, super accurate RTC that communicates via I2C
- Micro SD Card slot
- 2x STEMMA/QT connectors with 2 sets of IO - Can be used for I2C devices or UART or anything else you feel like
- I2C1 on the usual I2C pins for the Tiny board you are using
- I2C2 on 2 alternative IO pins for the Tiny board you are using
- JST PH connector for easy battery connection
- On board button connected to the EVI pin of the RTC that you can program to use as an RTC wakeup or to trigger an event
- RTC Interrupt pin is connected to an RTCIO pin on the Tiny board, so you can wake your board from deep sleep with the Alarm
- RTC Interrupt pin can be disconnected to it’s IO by cutting the trace on a solder jumper on the back of the board
- RTC Clock output is disconnected from its IO pin by default, but you can connect it if you want to use this RTC function by soldering a bridge across the solder jumper on the back of the shield. Left disconnected it frees up the IO for other uses.

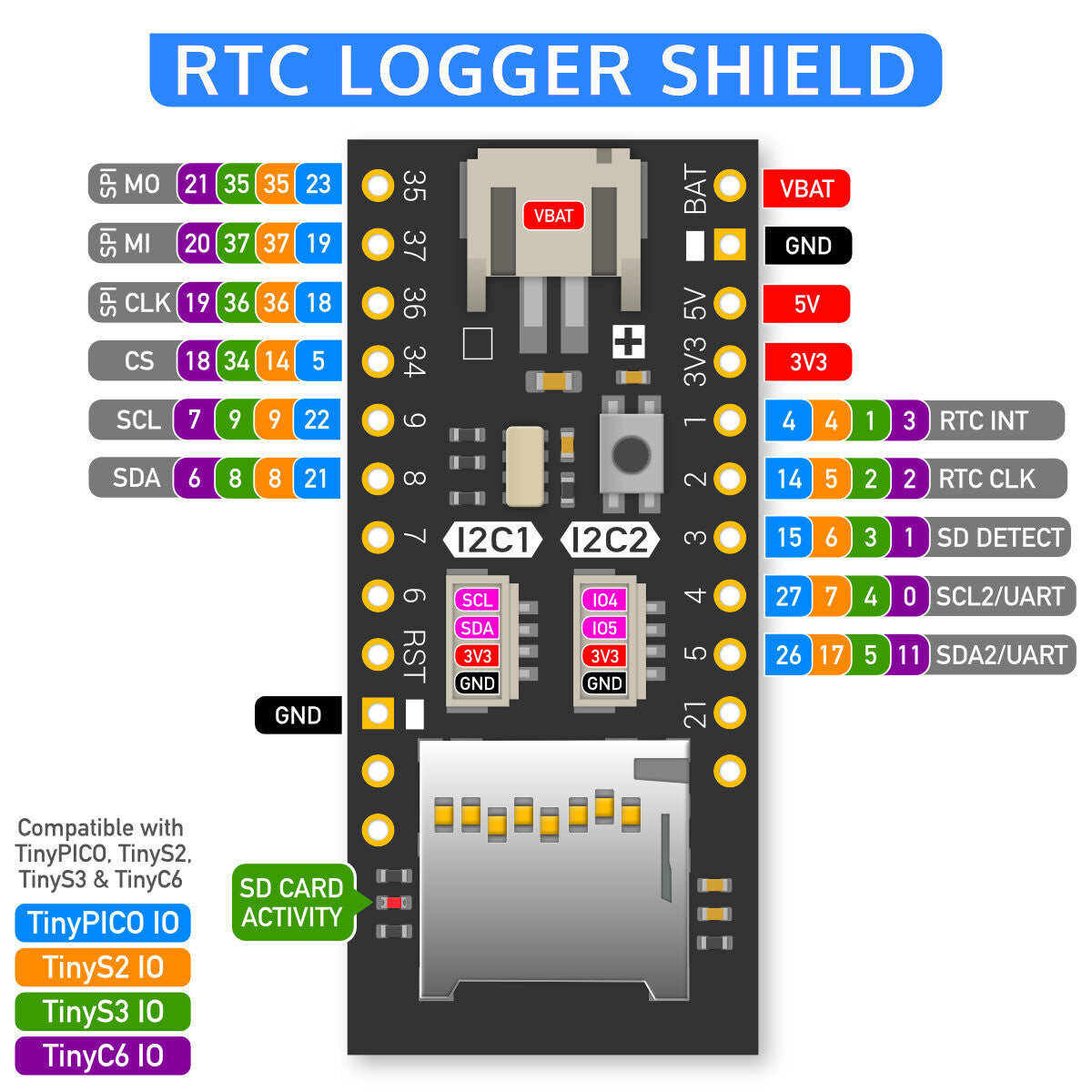

Pinout
Knowledge Base
You can find more detailed information about this shield, including a 3D model in the Unexpected Maker Knowledge Base
