ReSpeaker 4-Mic Array for Raspberry Pi

by Seeed Studio

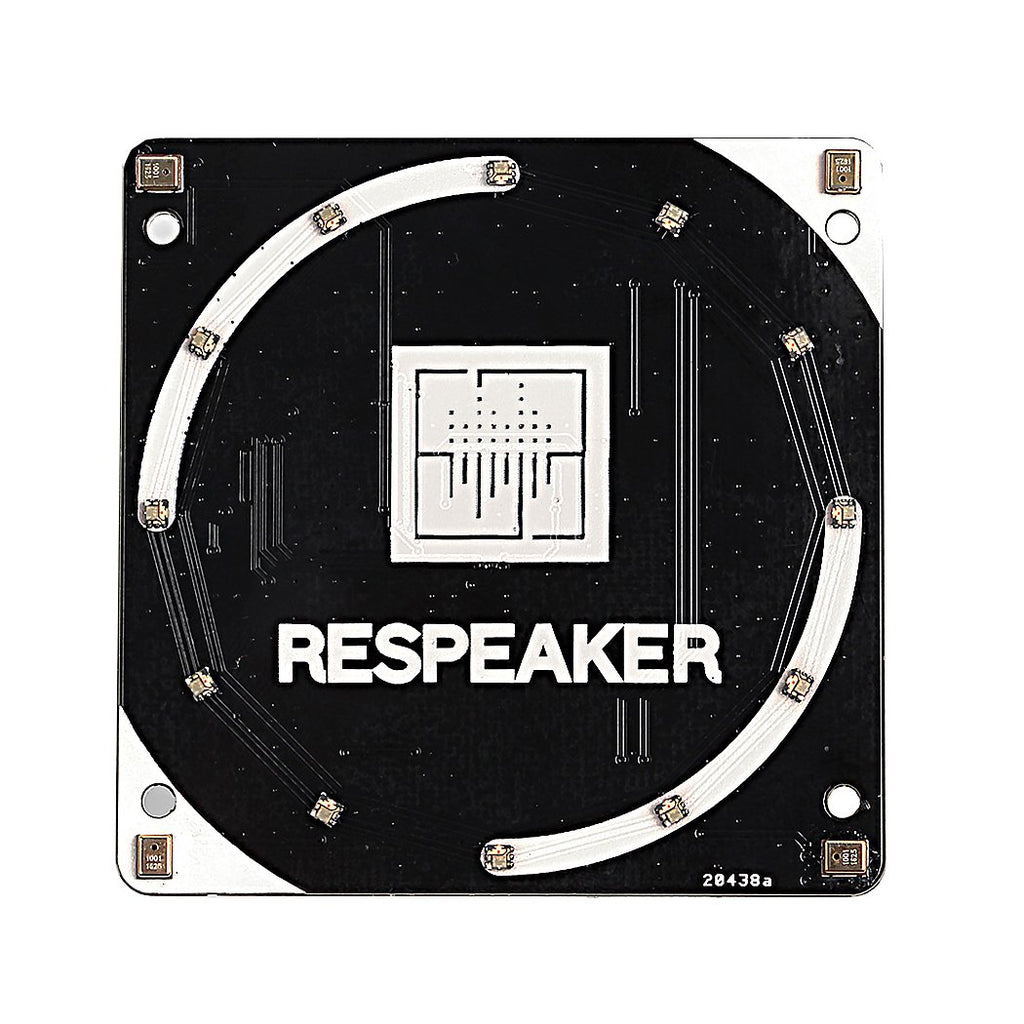

An image of ReSpeaker 4-Mic Array for Raspberry Pi An image of ReSpeaker 4-Mic Array for Raspberry Pi An image of ReSpeaker 4-Mic Array for Raspberry Pi An image of ReSpeaker 4-Mic Array for Raspberry Pi An image of ReSpeaker 4-Mic Array for Raspberry Pi

ReSpeaker 4-Mic Array for Raspberry Pi is a quad-microphone expansion board for Raspberry Pi designed for AI and voice applications. Build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

In contrast to the ReSpeaker 2-Mics Pi HAT, this board is developed based on AC108, a highly integrated quad-channel ADC with I2S/TDM output transition for high definition voice capture. In addition, this 4-Mics version provides a super cool LED ring, which contains 12 APA102 programmable LEDs. With 4 microphones and the LED ring, the Raspberry Pi has the ability to do VAD (Voice Activity Detection), estimate DOA (Direction of Arrival) and show the direction via the LED ring, just like Amazon Echo or Google Home.

Note

  • Please note that the package does not contain Raspberry Pi.
  • Please note that there are no any audio output interfaces on ReSpeaker 4-Mic Array for Raspberry Pi. It is only for voice capture. And you could use the headphone jack on Raspberry Pi for audio output.

Technical Details

Dimensions 65mm x 65mm x 9mm
Weight G.W 20g
Battery Not included
MIC 4 analog microphones
LED 12 APA102 programable RGB LEDs, connected to SPI interface
Raspberry Pi 40-Pin Headers support Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2 B and Raspberry Pi 3 B
AC108 highly integrated quad-channel ADC with I2S/TDM output transition
Software Algorithm VAD(Voice Activity Detection), DOA(Direction of Arrival) and KWS(Keyword Search)
Grove 2 Grove Interfaces
Voice Capture Distance 3 meters radius voice capture

Documents

  • ReSpeaker 4-Mic Array for Raspberry Pi v1.0.pdf
  • Seeed's forum
  • AC108_Datasheet_V1.1

Learn

  • [Wiki] ReSpeaker 4-Mic Array for Raspberry Pi

Reviews

User photos

ReSpeaker 4-Mic Array for Raspberry Pi is a quad-microphone expansion board for Raspberry Pi designed for AI and voice applications. Build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

SEEED-103030216

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
SEEED-103030216
EAN
841454120049
Brand
Seeed Studio
Stock available
0 units
Backorder not allowed on this product
Weight
40g
