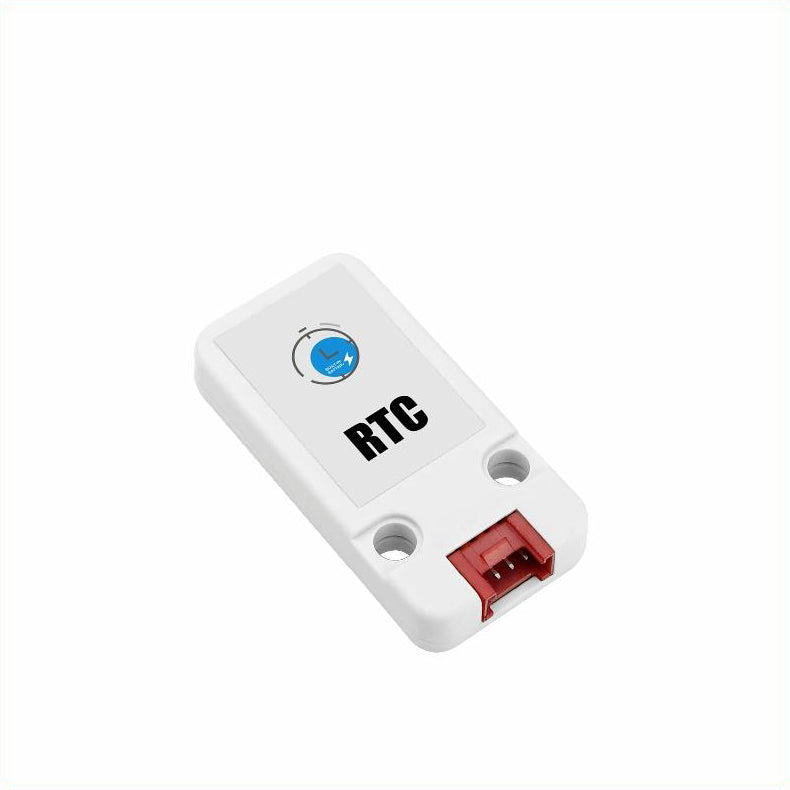

Real Time Clock (RTC) Unit (HYM8563)

by M5Stack
An image of Real Time Clock (RTC) Unit (HYM8563) An image of Real Time Clock (RTC) Unit (HYM8563) An image of Real Time Clock (RTC) Unit (HYM8563) An image of Real Time Clock (RTC) Unit (HYM8563) An image of Real Time Clock (RTC) Unit (HYM8563) An image of Real Time Clock (RTC) Unit (HYM8563) An image of Real Time Clock (RTC) Unit (HYM8563)

UNIT RTC is a programmable real-time clock module

The integrated HYM8563 low-power CMOS real-time clock/calendar chip, using I2C communication interface, full-coverage case can effectively protect the circuit, making its operation more stable. Applicable to a variety of embedded devices, instruments and instruments as a system clock.

Role of RTC

Most MCUs are built-in timers, which usually start working automatically when the hardware is powered on, and reset when the hardware is powered off. The built-in timer can handle some simple timing tasks, but if we want to implement data timestamp recording, clock, alarm clock and other time-span functions, a system power-independent clock RTC is the best choice.

Features

  • Support second/minute/hour/day/month/year. time data reading and writing
  • 32.768kHz high-precision clock crystal, greatly reducing the time error
  • Low power consumption, coin battery can work continuously for years
  • With century mark
  • I2C communication interface

Includes

  • 1x Unit RTC
  • 1x Coin cell battery (38mAh)
  • 1x HY2.0-4P cable

Specifications

Specifications Parameters
Clock chip HYM8563
Crystal Frequency 32.768kHz
Communication interface I2C, addr: 0x51, bus max speed 400Kbps
Power supply voltage 5V DC
Net weight 4.1g
Gross Weight 8.3g
Product Dimensions 48 x 24 x 8mm
Package Size 67 x 53 x 12mm

Documents

  • Schematic
  • Datasheet (HYM8563)
  • Example
