Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2)

by Home Assistant
An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2) An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2) An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2) An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2) An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2) An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2) An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2) An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2) An image of Home Assistant Connect Zigbee/Thread/Matter Adapter (ZBT-2)

This official adapter with built-in antenna and indicator light is the easiest way to connect Zigbee, Matter, or Thread devices up to Home Assistant.

Please note that we're not able to supply Home Assistant products to resellers.

Home Assistant Connect ZBT-2 makes starting with Zigbee or Thread easier than ever. With a precisely tuned antenna, next-gen chip, and effortless setup, it delivers plug-and-play connectivity to a wide variety of Zigbee and Matter devices.

ZBT-2 is the perfect partner for Home Assistant Green but it also works great if you're running Home Assistant on a Raspberry Pi. We stock sensors, switches, lightbulbs and other devices that you can use it to connect to -Β view all Zigbee or view all Matter.

Want to find out more about ZBT-2? Check out the launch live stream!

Features

  • πŸ“‘ OPTIMIZED ANTENNA – providing the best possible connection to Zigbee or Thread devices.
  • ⚑ MORE RESPONSIVE – with 4Γ— improvement in speed over our first-generation adapter, it consistently improves device responsiveness.
  • πŸš€ PURE PERFORMANCE – an updated Zigbee and Thread chip (MG24) gives it the highest performance available while providing rock-solid stability
  • πŸ†• OPEN PLATFORM – upgrading to the 2nd generation Connect platform means it’s more open, powerful, and blends into home decor.
  • πŸ› οΈ BUILT TO BE TINKERED WITH – unlocked, open source, and easy to open (no clips or glue), with accessible pads and pins.
  • πŸ”Œ PLUG AND PLAY – seamlessly migrate your Zigbee or Thread network with Home Assistant’s included wizard.
  • 🌐 CHOOSE YOUR NETWORK – start a new Zigbee or Thread network in minutes.
  • 🏠 CUT SMART HOME HUB CLUTTER – directly connect Zigbee, Matter, or Thread devices you already have to Home Assistant.
  • 🌎 A WORLD OF DEVICES – connect everything from proven Zigbee products to the latest Matter-enabled devices.
  • πŸ’ͺ ALL THE POWER OF HOME ASSISTANT – highest Zigbee and Thread compatibility, with Over-the-Air (OTA) updates for major brands.
  • βœ… RELIABLE TO THE CORE – built by the team driving forward Home Assistant development.
  • πŸ”„ WIDE COMPATIBILITY – supports ZHA, Zigbee2MQTT, and OpenThread Border Router.

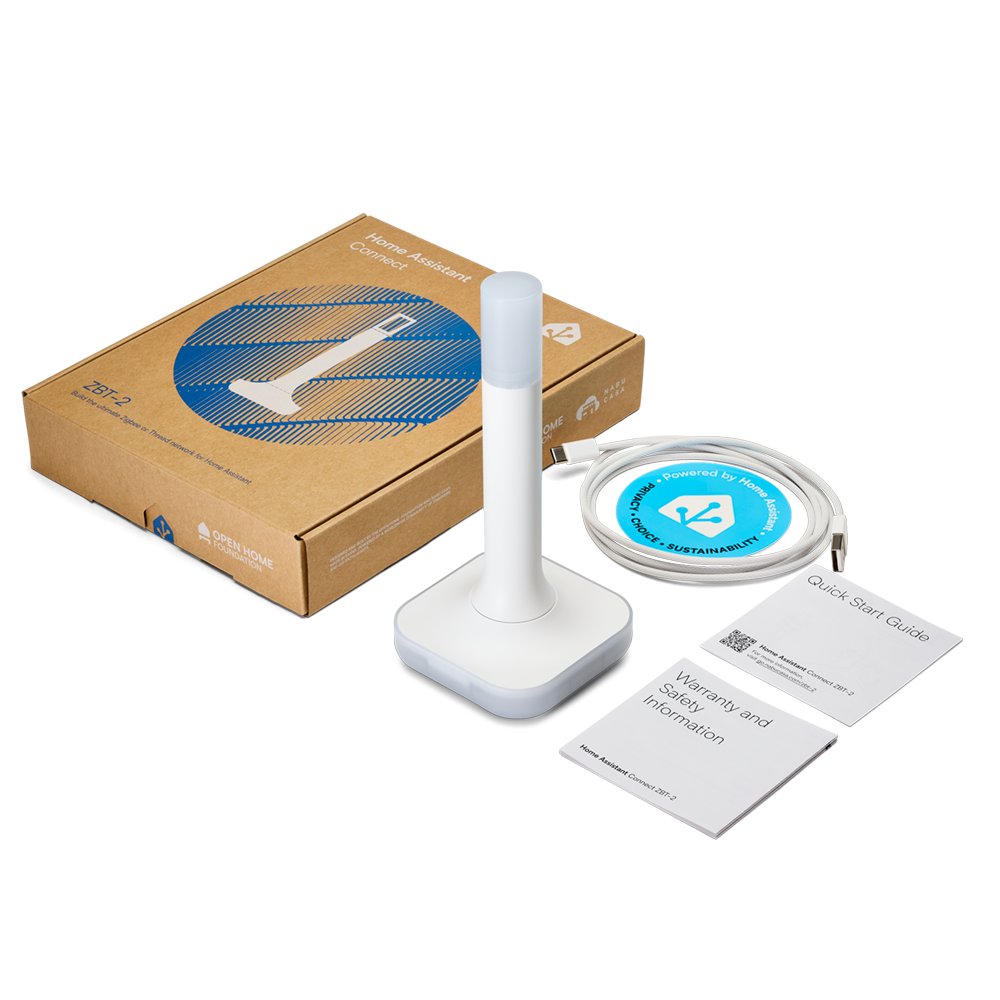

In the box

  • Antenna
  • Base
  • 1.5 m (4.9 ft) USB-cable (USB 2.0/3.0)
  • Quickstart guide.

Specifications

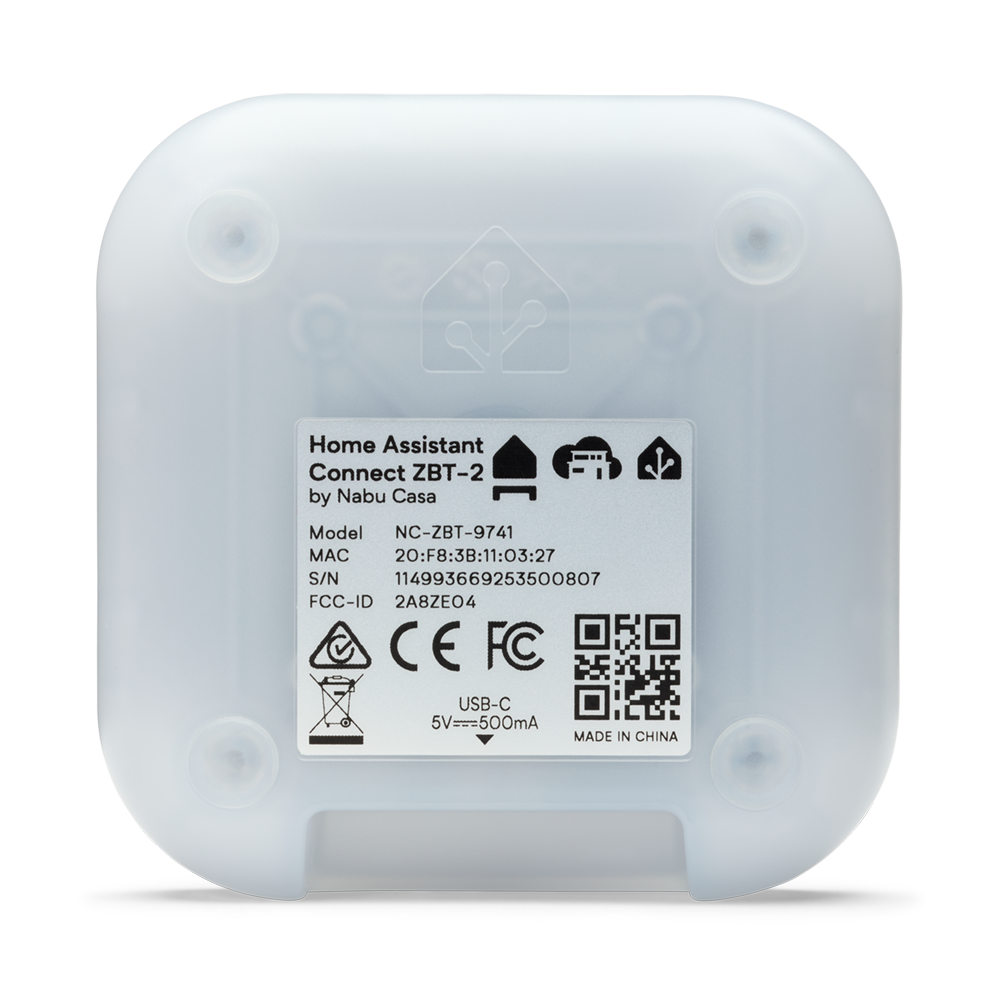

  • Model: NC-ZBT-9741
  • Conformity: CE, FCC, RCM
  • FCC-ID: 2A8ZE04

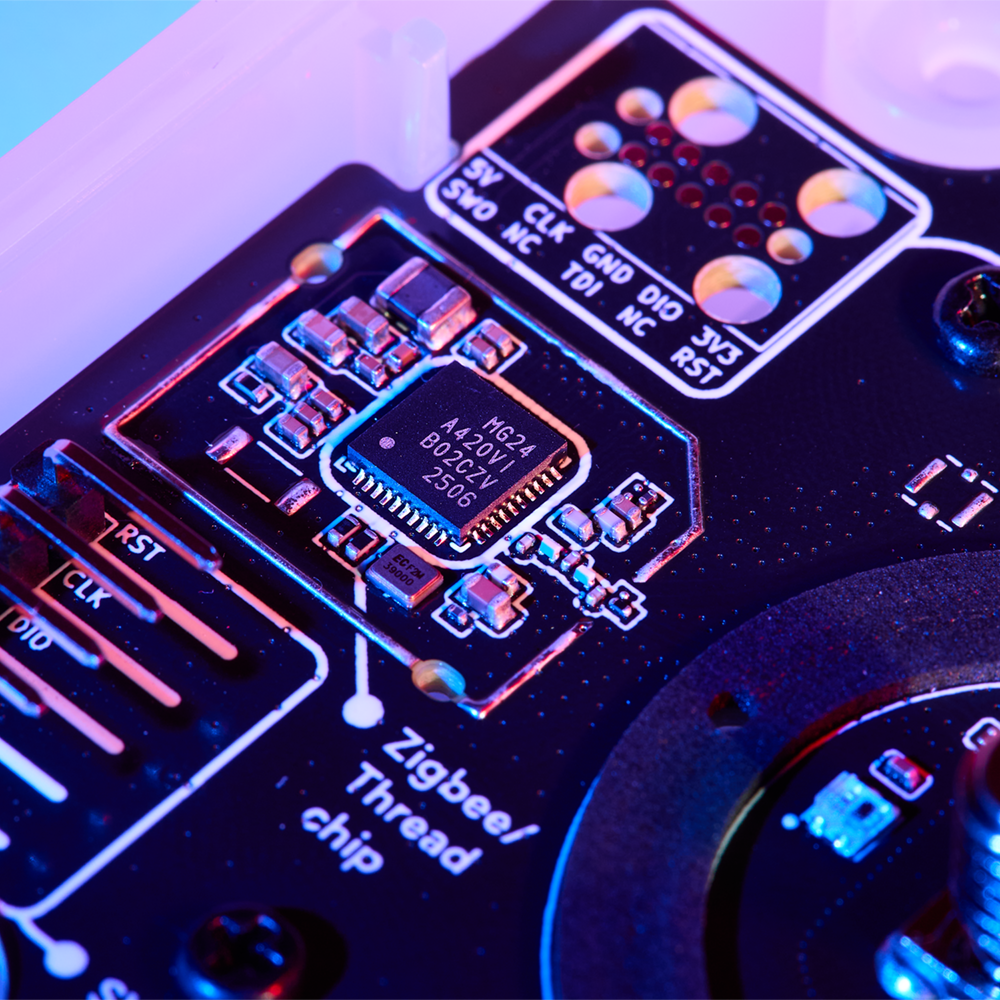

  • SoCs: Silicon Labs MG24 (Zigbee 3.0 and Thread chip) and ESP32-S3 (USB-serial bridge)

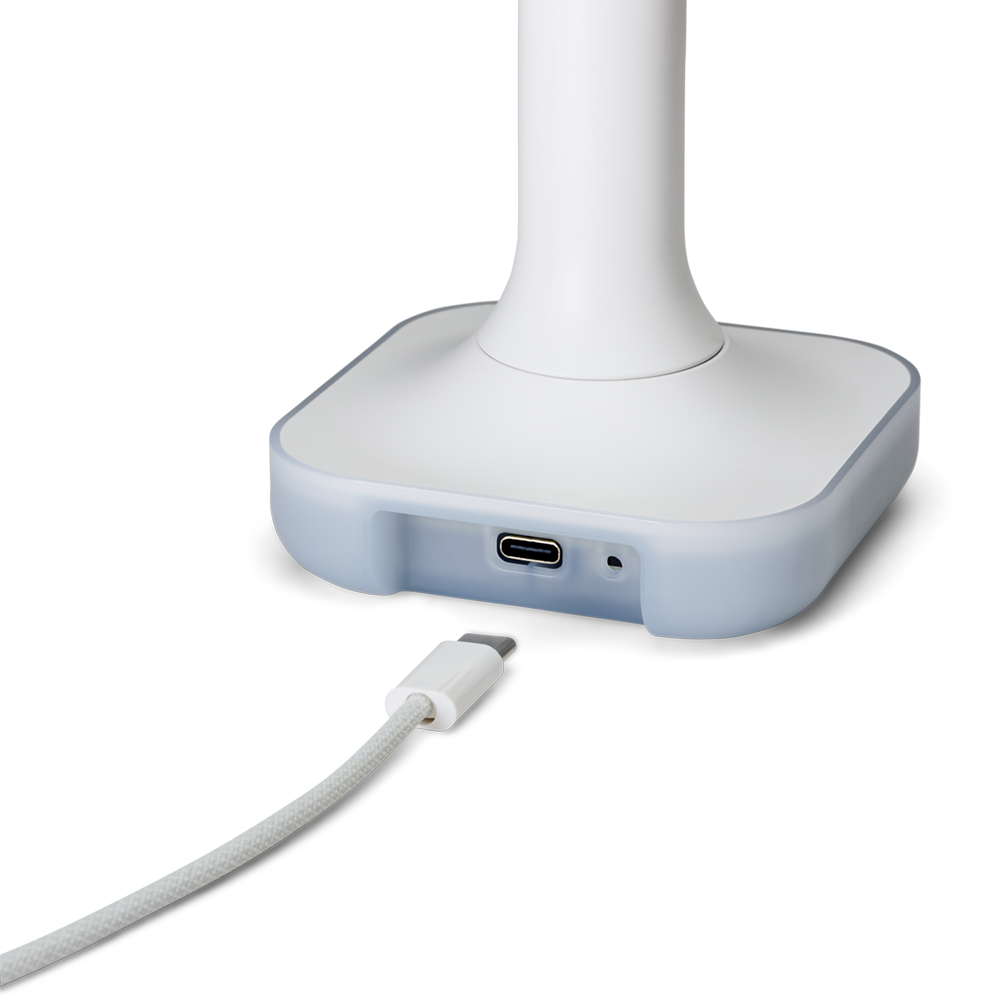

  • Power and data: USB-C, 5 V DC, 500mA
  • Supported protocols: Zigbee 3.0, Thread
  • Supported regions: All Zigbee and Thread regions and 2.4 GHz channels.
  • Antenna characteristics
    • Different building materials and placement of the unit will affect the wireless connectivity range.
    • Frequency range: 2400-2483.5 MHz
    • Peak gain: 4.16 dBi
    • Transmit power: 10 dBm (Europe), 8 dBm (rest of world)
    • Radiation pattern: Omnidirectional
    • Dimensions antenna: 24 mm diameter, 164 mm height
  • Dimensions & weight: 83 x 83 x 179 mm, 157 g
  • Enclosure material: Polycarbonate plastic
  • Environmental operating conditions: Indoor use only

Resources

  • Quick-start guide (PDF)
  • ZBT-2 documentation and support
  • Launch livestream

Reviews

User photos

This official adapter with built-in antenna and indicator light is the easiest way to connect Zigbee, Matter, or Thread devices up to Home Assistant.

NC-ZBT-9741

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
NC-ZBT-9741
EAN
0860011789741
Brand
Home Assistant
Stock available
400+ units
Backorder not allowed on this product
Weight
340g
