FSR (Force Sensing Resistor) Sensor

by Velleman

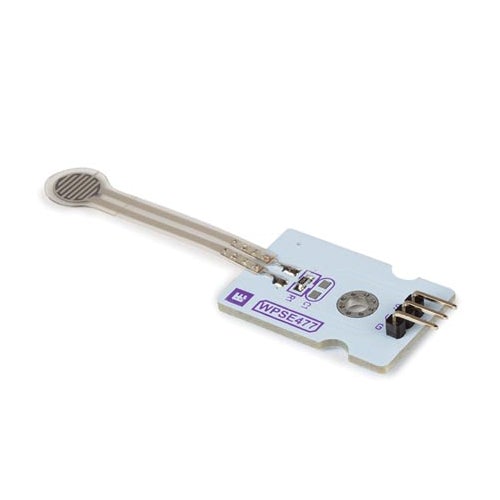

An image of FSR (Force Sensing Resistor) Sensor An image of FSR (Force Sensing Resistor) Sensor An image of FSR (Force Sensing Resistor) Sensor

This little module adopts a flexible nano pressure-sensitive material with an ultra-thin film pad to sense the exerted pressure.

When pressure is applied to the measuring disc, the resistance of the sensor will change. This change in resistance is converted to a varying output voltage using an additional resistor mounted on the module to form a voltage divider.

Compatible with Arduino and Arduino compatibles!

Features

  • uses a flexible pressure-sensitive material to sense exerted pressure
  • broad pressure sensing range (up to 0,5 kg)

Specifications

  • supply voltage: 3,3 - 5 V DC
  • interface: analog voltage output
  • pressure measuring range: 0 - 0,5 kg
  • thickness of measuring disc: < 0,25 mm
  • pressure measuring theshold: < 20 g
  • repeatability: < 5,8% (50% load)
  • accuracy: 2,5% (85% range interval)
  • durability: > 100 000 cycles
  • initial resistance: > 100 MO (no load)
  • response time: < 1 ms
  • recovery time: < 15 ms
  • weight: 2,5 g
  • dimensions (W x L x H): 67 x 22 x 7 mm

Reviews

User photos

This little module adopts a flexible nano pressure-sensitive material with an ultra-thin film pad to sense the exerted pressure.

WPSE477

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
WPSE477
EAN
5410329732431
Brand
Velleman
Stock available
0 units
Backorder not allowed on this product
Weight
23g
