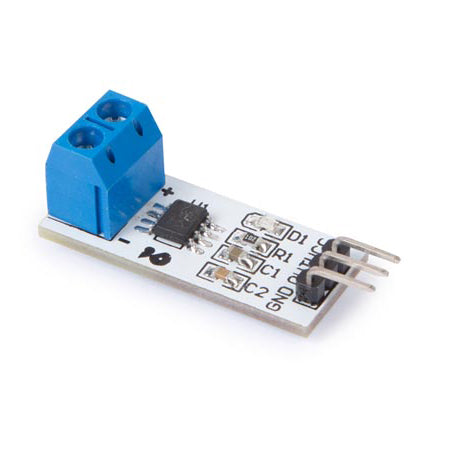

Current Sensor ACS712 Module - 20 A

by Velleman
An image of Current Sensor ACS712 Module - 20 A An image of Current Sensor ACS712 Module - 20 A An image of Current Sensor ACS712 Module - 20 A

This current sensor module guarantees precise measuring for commercial systems. Especially designed for easy installation. Can be used for motor control, load detection, overcurrent.

Features

  • measurement range of -20 to +20 A
  • scale factor of 100 mV per A
  • easy installation
  • Specifications
  • supply voltage: 5 VDC
  • output voltage: VCC/2 at no load
  • dimensions: 31 x 13 x 12 mm

Manual

  • User manual

Info Sheets

  • VMA323 Scheme
  • ACS712 Data Sheet

Firmware

  • Code

Reviews

User photos

This current sensor module guarantees precise measuring for commercial systems. Especially designed for easy installation. Can be used for motor control, load detection, overcurrent.

WPSE323

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
WPSE323
EAN
5410329730062
Brand
Velleman
Stock available
0 units
Backorder not allowed on this product
Weight
23g
