Name: Atlas DCA Pro - Advanced Semiconductor Analyser with Curve Tracing
Brand: Peak
SKU: PEAK DCA75
Price: 159.00 GBP
Availability: OutOfStock

Key Features

The DCA Pro is an advanced new design that features a graphics display, USB communications, PC Software and an enhanced component identification library.

Automatically identify part type (eg, Transistor, JFET, IGBT, Regulator, Zener, Diodes, etc)

Automatically identify pinout (connect any way round)

Measure lots of component data

Perform further detailed component analysis with the PC software included on the Peak USB flash drive (suitable for Windows® XP to Windows® 10)

Complete with premium gold plated hook probes

Online upgradeable

Single alkaline AAA battery included (not used when connected by USB)

24 month warranty as standard.

Components supported include:

Transistors (including Darlingtons), Silicon and Germanium types. Measures gain, Vbe and leakage.

MOSFETs, enhancement mode and depletion mode types. Measure on-threshold (at 5mA) and approx transconductance (for span of 3mA-5mA)

JFETs, including normally off SiC types. Measures pinch-off voltage (at 5uA) and approx transconductance (for span of 3mA-5mA)

IGBTs (insulated gate bipolar transistors). Measures on-threshold (at 5mA). - Diodes and Diode networks.

LEDs and bicolour LEDs (2 lead and 3 lead types).

Zener Diodes with measurement of zener voltage up to 9V at 5mA

Voltage regulators (measures regulation voltage, drop-out voltage, quiescent current)

Triacs and Thyristors that require less than 10mA of gate current and holding current.

Stand-alone or with a PC (Windows® XP to Windows® 10)

The instrument can be used stand-alone or connected to a PC. Either way, the DCA Pro will automatically identify the component type, identify the pinout and also measure a range of component parameters such as transistor gain, leakage, MOSFET and IGBT threshold voltages, pn characteristics and much more.

Curve Tracing

When connected to a PC using the supplied USB cable, a range of low current curve-tracing functions can be performed. Various graph types are available, with more to follow:

Bipolar transistor output characteristics, I_C vs V_CE

Bipolar transistor gain characteristics, h_FE vs V_CE

Bipolar transistor gain characteristics, h_FE vs I_C

MOSFET and IGBT output function, I_D vs V_DS

MOSFET and IGBT transfer function, I_D vs V_GS

JFET output function, I_D vs V_DS

JFET transfer function, I_D vs V_GS

Voltage regulator, V_OUT vs V_IN

Voltage regulator, I_Q vs V_IN

PN junction I/V curves, forward and reverse options (for Zener diodes).

Curve tracing is performed using test parameters in the range of +/-12V, +/-12mA. All curve-tracing data can be instantly pasted into Excel© for further graphing and analysis. PC Software is included with the DCA Pro on a Peak USB memory stick. Software designed for Windows XP, Vista, 7, 8 and 10.

Identify electronic components such as transistors and diodes and analyse their performance. How good is that reel of stuff you got from the internet?

PEAK DCA75

This product is no longer available

It's sad to say goodbye but sometimes we have to retire products to make way for new things.

SKU

PEAK DCA75

EAN

0700621853459

Brand

Peak

Stock available

0 units
Backorder not allowed on this product

Weight

240g

Atlas DCA Pro - Advanced Semiconductor Analyser with Curve Tracing

This product is no longer available

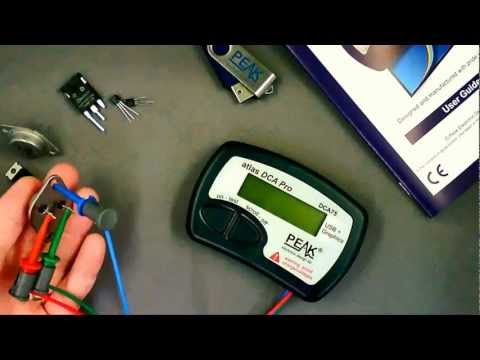

Video introduction
