Adafruit Rotary Trinkey - USB NeoPixel Rotary Encoder

by Adafruit
An image of Adafruit Rotary Trinkey - USB NeoPixel Rotary Encoder An image of Adafruit Rotary Trinkey - USB NeoPixel Rotary Encoder An image of Adafruit Rotary Trinkey - USB NeoPixel Rotary Encoder An image of Adafruit Rotary Trinkey - USB NeoPixel Rotary Encoder An image of Adafruit Rotary Trinkey - USB NeoPixel Rotary Encoder

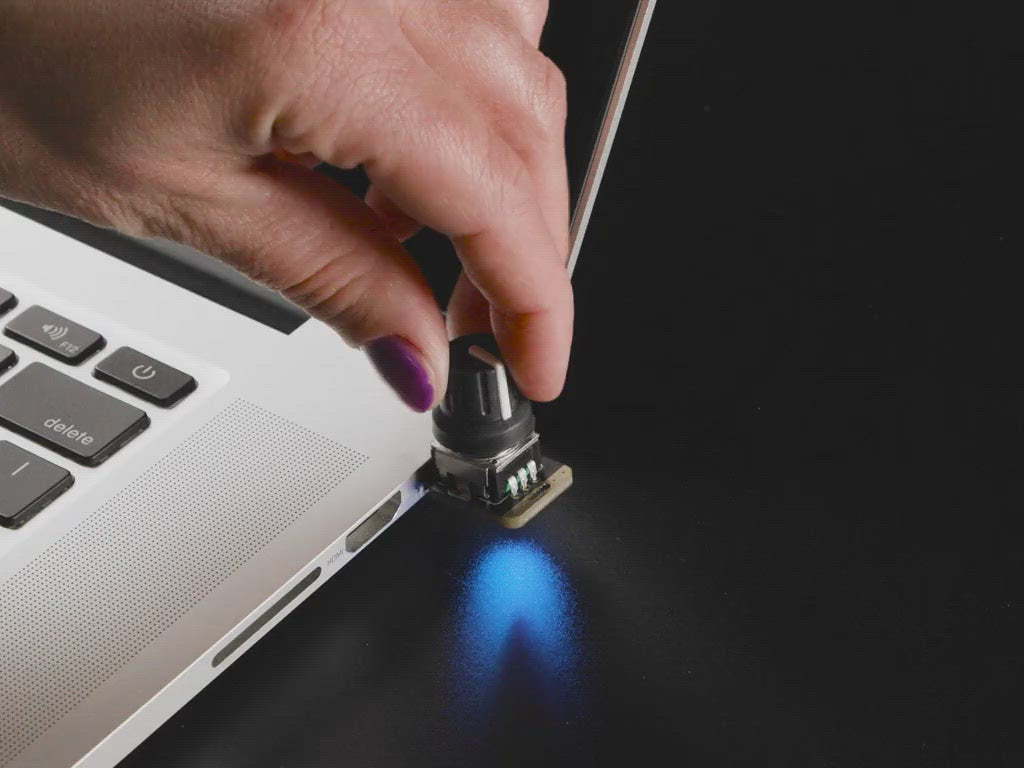

It's half USB Key, half Adafruit Trinket, half rotary encoder...it's Rotary Trinkey, the circuit board with a Trinket M0 heart, a NeoPixel glow, and a rotary encoder body.

Adafruit were inspired by this project from TodBot where a rotary encoder was soldered onto a QT Py. So they thought, hey what if we made something like that that plugs right into your computer's USB port, with a fully programmable color NeoPixel? And this is what they came up with!

Please note this board DOES NOT come with a rotary encoder soldered in - we expect folks to pick their favorite rotary encoder and knob! Five solder points and you're done.

The PCB is designed to slip into any USB A port on a computer or laptop. There's an ATSAMD21 microcontroller on board with just enough circuitry to keep it happy. Three pins of the microcontroller connects to a rotary encoder with built-in push switch. Another connects to a NeoPixel LED. Finally, one pin can be used as a capacitive touch input. A reset button lets you enter bootloader mode if necessary. That's it!

Rotary encoders are soooo much fun! Twist em this way, then twist them that way. Unlike potentiometers, they go all the way around, and often have little detents for tactile feedback. But, if you just want to add one to your computer, you know its a real pain. This board is designed to make it very easy.

The SAMD21 can run CircuitPython or Arduino very nicely - with existing Rotary, NeoPixel and Adafruit's FreeTouch libraries for the capacitive touch input. Over the USB connection you can have serial, MIDI or HID connectivity. The Rotary Trinkey is perfect for simple projects that use a rotating user input and underlit colorful output. Maybe you'll set it up as a volume knob, scroll wheel, or zoom macro tool - whatever you like!

We think its just an adorable little board, small and durable and inexpensive enough that it could be a first microcontroller board, or inspiration for advanced developers to make something simple and fun.

  • ATSAMD21E18 32-bit Cortex M0+ - 48 MHz 32 bit processor with 256KB Flash and 32 KB RAM
  • Native USB supported by every OS - can be used in Arduino or CircuitPython as USB serial console, MIDI, Keyboard/Mouse HID, even a little disk drive for storing Python scripts.
  • Can be used with Arduino IDE or CircuitPython
  • Single under-lighting RGB NeoPixel LED
  • One Capacitive Touch pad
  • Standard '5-pin' rotary encoder footprint can be used with any "PEC11" or "PEC12" compatible rotary encoder.
  • Cute & keychain-friendly!

TECHNICAL DETAILS

Product Dimensions: 32.4mm x 16.5mm x 4.0mm / 1.3" x 0.6" x 0.2"

Product Weight: 2.1g / 0.1oz

Reviews

User photos

It's half USB Key, half Adafruit Trinket, half rotary encoder...it's Rotary Trinkey, the circuit board with a Trinket M0 heart, a NeoPixel glow, and a rotary encoder body.

ADA4964

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA4964
EAN
0769894018408
Brand
Adafruit
Stock available
3 units
Backorder not allowed on this product
Weight
4g
