Adafruit NeoTrellis RGB Driver PCB for 4x4 Keypad

by Adafruit
An image of Adafruit NeoTrellis RGB Driver PCB for 4x4 Keypad An image of Adafruit NeoTrellis RGB Driver PCB for 4x4 Keypad An image of Adafruit NeoTrellis RGB Driver PCB for 4x4 Keypad An image of Adafruit NeoTrellis RGB Driver PCB for 4x4 Keypad An image of Adafruit NeoTrellis RGB Driver PCB for 4x4 Keypad

By popular request, Adafruit upgraded their popular Trellis elastomer button kits to now have a PCB with full color NeoPixel support! You heard that right, no more single-color LEDs, you can now have any colour you like under the fantastic rubbery button pads we sell.

These 4x4 button pad boards are fully tile-able and communicate over I2C. With 5 address pins, you've got the ability to connect up to 32 together in any arrangement you like. With the trusty seesaw I2C-to-anything chip, you don't even need to manage the NeoPixel driving. That's right! Both the button management and LED driving is completely handled for you all over plain I2C. With both Arduino/C++ and CircuitPython/Python library support, you can use these pads with any and all microcontroller or computer boards.

Perfect for your next cool interface, MIDI instrument, control panel...whatever could benefit from beautiful diffused colourful buttons. For fast connection to a single board, there's a JST-PH 4-pin connector installed that will give you power+data access. It's Grove compatible (the cable fits, even though its not the exact same connector), or you can use a JST-PH 4 pin cable.

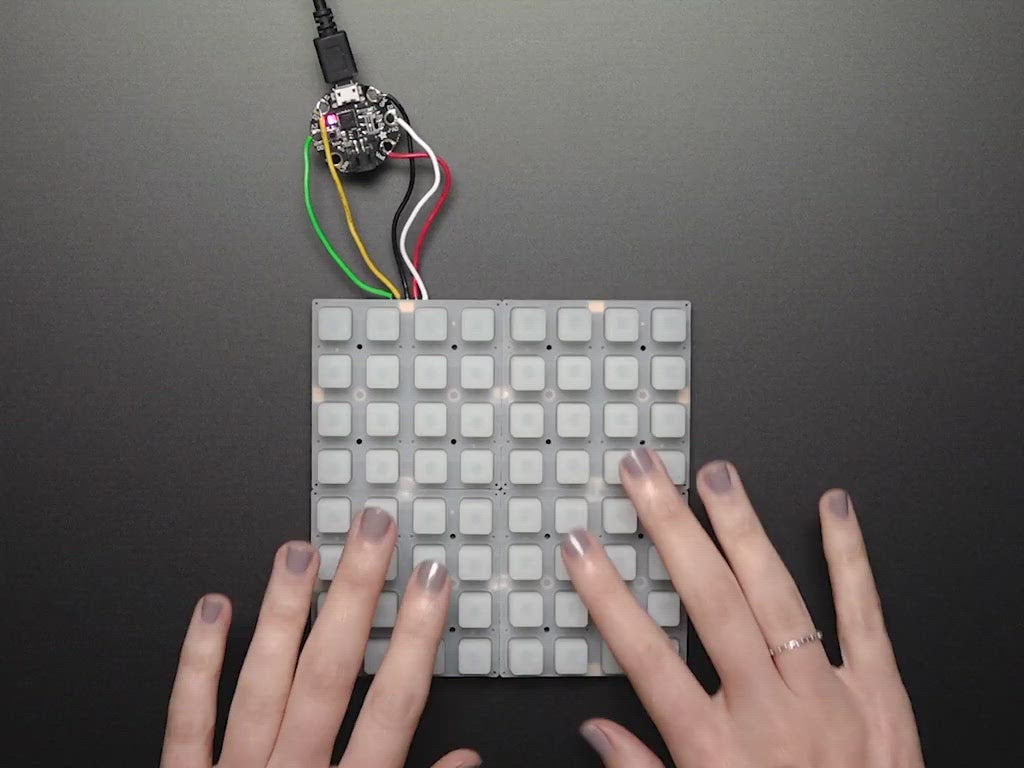

You can tile up to 32 boards together by soldering them edge-to-edge and soldering closed the I2C address jumpers, then use one I2C connection for all tiled NeoTrellis boards!

Each order comes with one NeoTrellis board with seesaw chip and 16 NeoPixels already soldered in place. Elastomer button pad not included, so be sure to pick one up!

TECHNICAL DETAILS

  • Dimensions: 60mm / 2.4" x 60mm / 2.4" x 4mm / 0.2"
  • This board/chip uses I2C 7-bit addresses between 0x2E to 0x4D selectable by soldering jumpers on the back of the board.
  • Product Dimensions: 60.0mm x 60.0mm x 7.5mm / 2.4" x 2.4" x 0.3"
  • Product Weight: 13.3g / 0.5oz

Reviews

User photos

By popular request, Adafruit upgraded their popular Trellis elastomer button kits to now have a PCB with full color NeoPixel support! You heard that right, no more single-color LEDs, you can now have any colour you like under the fantastic rubbery button pads we sell.

ADA3954

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA3954
EAN
0606034878785
Brand
Adafruit
Stock available
8 units
Backorder not allowed on this product
Weight
20g
