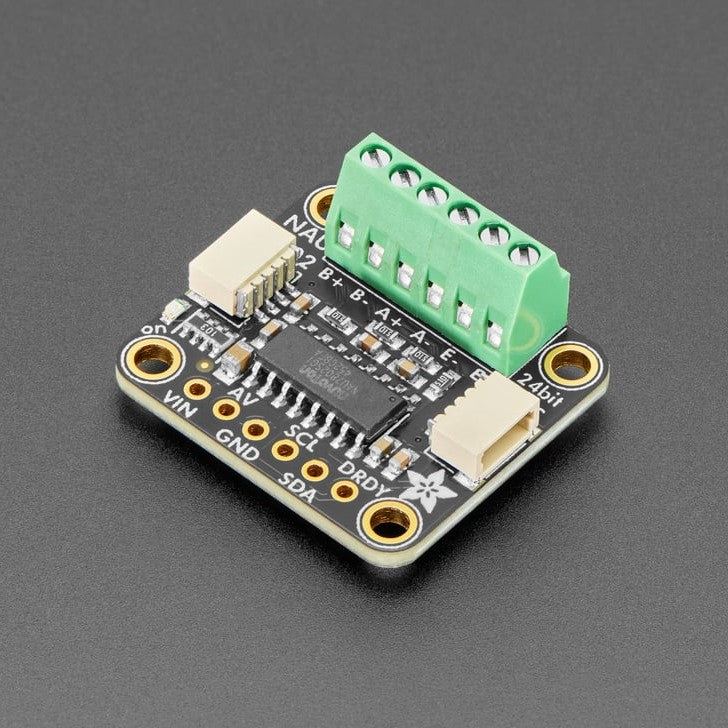

Adafruit NAU7802 24-Bit ADC - STEMMA QT / Qwiic

by Adafruit
An image of Adafruit NAU7802 24-Bit ADC - STEMMA QT / Qwiic An image of Adafruit NAU7802 24-Bit ADC - STEMMA QT / Qwiic An image of Adafruit NAU7802 24-Bit ADC - STEMMA QT / Qwiic An image of Adafruit NAU7802 24-Bit ADC - STEMMA QT / Qwiic An image of Adafruit NAU7802 24-Bit ADC - STEMMA QT / Qwiic

If you are feeling the stress and strain of modern life a Wheatstone bridge and you want to quantify it, this handy breakout will do the job, no sweat!

The Adafruit NAU7802 contains a super-high-resolution 24-Bit differential ADC with extra gain and calibration circuitry that makes it perfect for measuring strain gauges / load cells or other sensors that have four wires that are connected in a Wheatstone bridge arrangement.

Each breakout comes with a NAU7802 ADC chip, plus some support circuitry, and 4 terminal blocks that can be used to connect a 4-wire sensor.

The E- pad connects to ground (often a black wire), the E+ pad connects to a generated voltage from the NAU7802 that can be configured from 2.4V to 4.0V for a solid positive reference (often a red wire).

Then A- and A+ pads connect to the differential outputs from the bridge. For example, connecting to a strain gauge these tend to be the white and green wires.

As the sensor is twisted and bent, the slight changes in resistance are converted to minuscule voltage changes that can be read by the NAU ADC for converting into force or mass measurements. You can use this Arduino library or CedarGrove's CircuitPython/Python library to configure and read the ADC for fast interfacing. Note that this sensor has a fixed I2C address, if multiple sensors are desired on one I2C bus, a multiplexer can be used.

Technical Details

Product Dimensions: 25.3mm x 23.0mm x 4.5mm / 1.0" x 0.9" x 0.2"

Product Weight: 2.3g / 0.1oz

Reviews

User photos

If you are feeling the stress and strain of modern life a Wheatstone bridge and you want to quantify it, this handy breakout will do the job, no sweat!

ADA4538

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA4538
EAN
0769894022221
Brand
Adafruit
Stock available
0 units
Backorder not allowed on this product
Weight
6g

Video introduction
