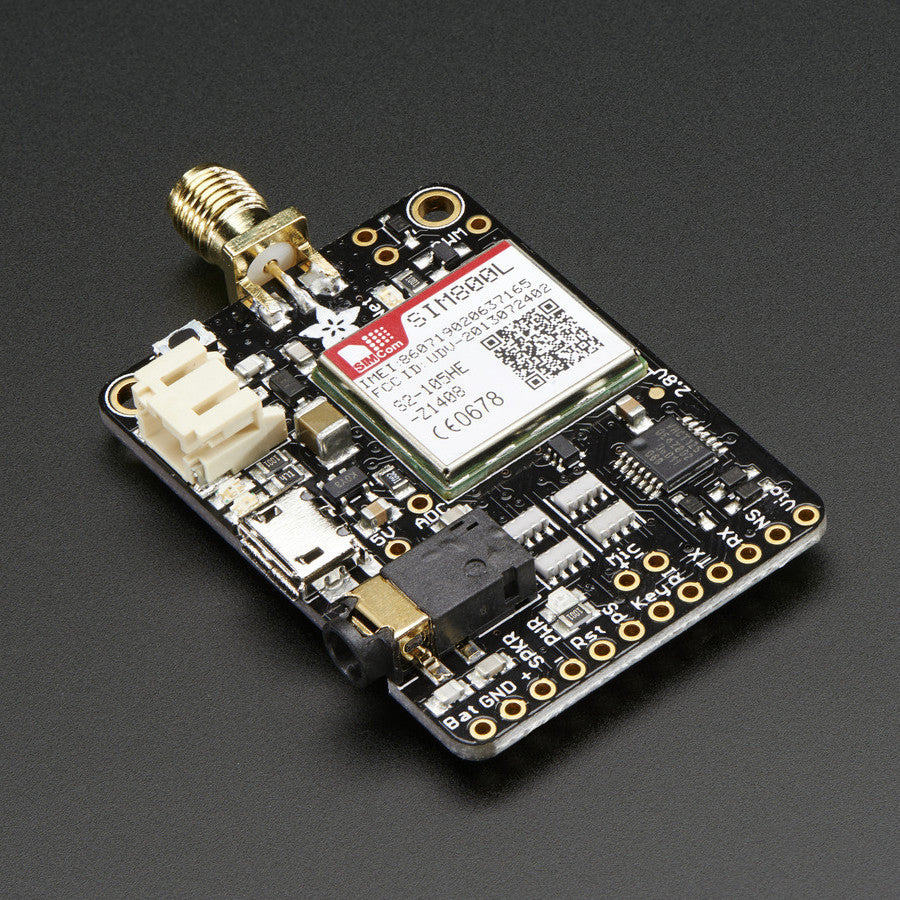

Adafruit FONA - Mini Cellular GSM Breakout – SMA Version - v1

by Adafruit
An image of Adafruit FONA - Mini Cellular GSM Breakout An image of Adafruit FONA - Mini Cellular GSM Breakout

An adorable all-in-one cellular phone module that lets you add voice, text, SMS and data to your project in an adorable little package.

This module measures only 1.75"x1.25" but packs a surprising amount of technology into its little frame. At the heart is a GSM cellular module (the latest SIM800) the size of a postage stamp. This module can do just about everything.

  • Quad-band 850/900/1800/1900MHz - connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested)
  • Make and receive voice calls using a headset OR an external 8Ω speaker + electret microphone
  • Send and receive SMS messages
  • Send and receive GPRS data (TCP/IP, HTTP, etc.)
  • Scan and receive FM radio broadcasts (yeah, we don't exactly know why this was included but it works really well)
  • PWM/Buzzer vibrational motor control
  • AT command interface with "auto baud" detection

Sounds delicious, right? So Adafruit plated this fine module onto a little breakout with all the extras you need to make your next project shine

  • Onboard LiPoly battery charging circuitry so you can take your project on the go. Use any 500mAh+ LiPoly or LiIon battery and recharge over the MicroUSB when necessary. Two LEDs let you know when its charging and done
  • Standard 4-pole TRRS headphone jack. Use any 'Android' or 'iPhone'-compatible headset with mic
  • Breakouts for external 8Ω speaker and electret mic if you don't want to use a headphone
  • Level shifting circuitry so you can run it with 2.8V to 5V logic.
  • Vibrational motor (buzzer) driver so you can have noiseless notifications
  • SMA/uFL connection for external antenna depending on the version you choose
  • Indicator LEDs for power and network connectivity
  • Standard SIM slides into the back

This is Adafruits Release Candidate for hackers and advanced makers. They're still adding library support for all the various things the FONA can do but there may be updates as FONA is used around the world!

On its own, this module can't do anything. It requires a microcontroller to drive it! We suggest and use an Arduino but any 3-5V microcontroller with a UART can send and receive commands over the RX/TX pins.

You will also need some required accessories to make FONA work. These are not included!

  • SIM Card! A 2G Mini SIM card is required to do anything on the cellular network. US AT&T no longer sells 2G SIMs and will shut off their 2G network, so for American customers we recommend any T-Mobile or reseller (SIMPLE mobile, etc) that uses the T-Mobile network.
  • Lipoly Battery - 500mAh or larger!
  • MicroUSB cable for charging the battery.
  • External Antenna - we have this one for the uFL version or this one for the SMA version

There's also some recommended accessories. They are not required but chances are you'll want them!

  • Vibrating motor - the FONA can drive this directly, just solder a mini vibrating motor disc in!

Reviews

User photos

An adorable all-in-one cellular phone module that lets you add voice, text, SMS and data to your project in an adorable little package.

ADA1963

Product options

  • SMA Version - v1 Out of stock
  • uFL Version - v1 Out of stock

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA1963
EAN
0704256797669
Brand
Adafruit
Stock available
0 units
Backorder not allowed on this product
Weight
15g
Title
SMA Version - v1
