Adafruit DRV2605L Haptic Motor Controller - STEMMA QT / Qwiic

by Adafruit
An image of Adafruit DRV2605L Haptic Motor Controller - STEMMA QT / Qwiic An image of Adafruit DRV2605L Haptic Motor Controller - STEMMA QT / Qwiic An image of Adafruit DRV2605L Haptic Motor Controller - STEMMA QT / Qwiic An image of Adafruit DRV2605L Haptic Motor Controller - STEMMA QT / Qwiic An image of Adafruit DRV2605L Haptic Motor Controller - STEMMA QT / Qwiic

The DRV2605 from TI is a fancy little motor driver. Rather than controlling a stepper motor or DC motor, its designed specifically for controlling haptic motors - buzzers and vibration motors.

Normally one would just turn those kinds of motors on and off, but this driver has the ability to have various effects when driving a vibe motor. For example, ramping the vibration level up and down, 'click' effects, different buzzer levels, or even having the vibration follow a musical/audio input.

This chip is controlled over I2C - after initialization, a 'string' of multiple effects can be strung together in the chips' memory and then triggered to actuate in a row. The built-in effects are much much nicer than just 'on' and 'off' and will make your haptic project a way nicer feeling.

According to the product page, it can be used with both LRA (Linear Resonance Actuator) and ERM (Eccentric Rotating Mass) type motors but Adafruit have only used it with their little vibration pancake ERM.

Adafruit added an onboard 3.3V regulator and logic-level shifting circuitry, making it a perfect choice for interfacing with any 3V or 5V microcontroller or computer, such as Arduino or Raspberry Pi. They've got both Arduino (C/C++) and CircuitPython (Python 3) libraries available so you can use it with any microcontroller like Arduino, ESP8266, Metro, etc, or with Raspberry Pi or other Linux computers, thanks to Blinka (the CircuitPython library support helper).

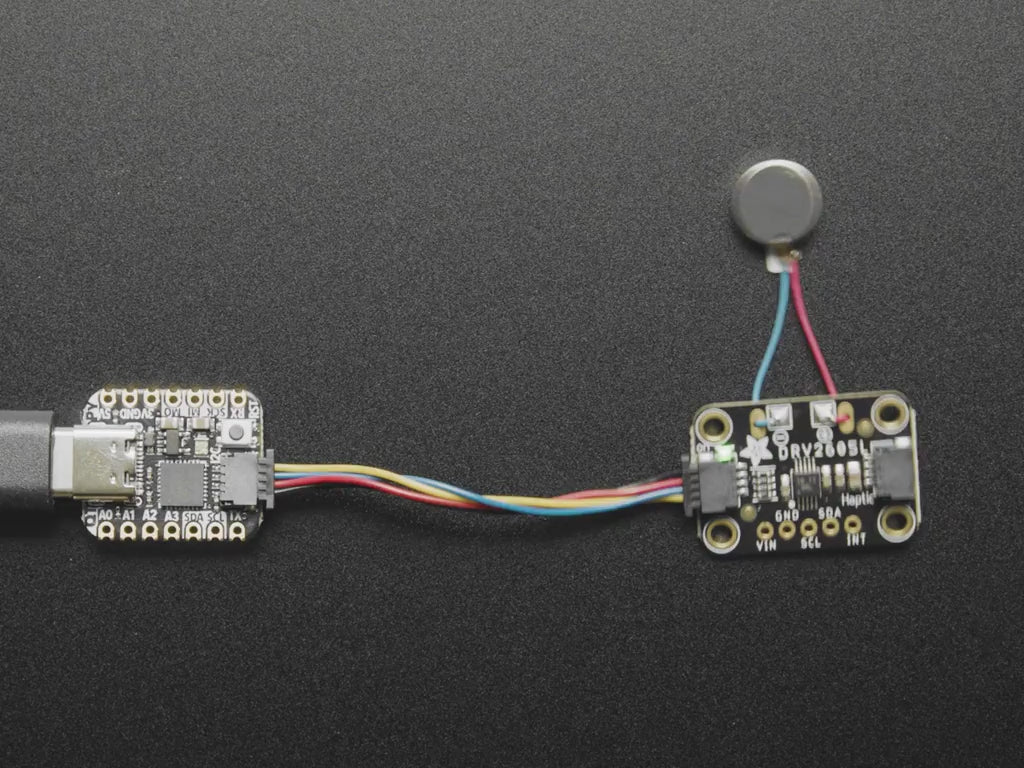

As if that weren't enough, they've also added SparkFun qwiic compatible STEMMA QT connectors for the I2C bus so you don't even need to solder. For a no-solder experience, just wire up to your favorite micro using a STEMMA QT adapter cable. The Stemma QT connectors also mean the breakout can be used with our various associated accessories. QT Cable is not included, but we have a variety in the shop

Technical Details

Revision History:

  • As of July 11, 2022 - this board now comes in STEMMA QT format. Functionality and schematic remain the same, physical shape has changed to make it plug-and-play, much easier to use

Datasheet, schematic, PCB files, and Fritzing available in the product tutorial

Product Dimensions: 25.8mm x 17.8mm x 4.6mm / 1.0" x 0.7" x 0.2"

Product Weight: 1.7g / 0.1oz

Reviews

User photos

The DRV2605 from TI is a fancy little motor driver. Rather than controlling a stepper motor or DC motor, its designed specifically for controlling haptic motors - buzzers and vibration motors.

ADA2305

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA2305
EAN
0700161461107
Brand
Adafruit
Stock available
0 units
Backorder not allowed on this product
Weight
5g

Video introduction
