Adafruit AS7262 6-Channel Visible Light / Color Sensor Breakout

by Adafruit
An image of Adafruit AS7262 6-Channel Visible Light / Color Sensor Breakout An image of Adafruit AS7262 6-Channel Visible Light / Color Sensor Breakout An image of Adafruit AS7262 6-Channel Visible Light / Color Sensor Breakout An image of Adafruit AS7262 6-Channel Visible Light / Color Sensor Breakout

Detect trees of green, and red roses too with the new Adafruit AS7262 6-Channel Visible Light/Colour Sensor Breakout.

This sensor from AMS has 6 integrated visible light sensing channels for red, orange, yellow, green, blue, and violet. These channels can be read via the I2C bus as either raw 16-bit values or calibrated floating-point values. There is also an on-board temperature sensor that can be used to read the temperature of the chip, and a powerful LED flash to reflect light off objects for better colour detection.

The 6 channels on the AS7262 are realized by silicon interference filters at 450nm, 500nm, 550nm, 570nm, 600nm, and 650nm. This breakout uses the I2C interface on the chip by default, but a UART interface that accepts AT commands is also selectable.

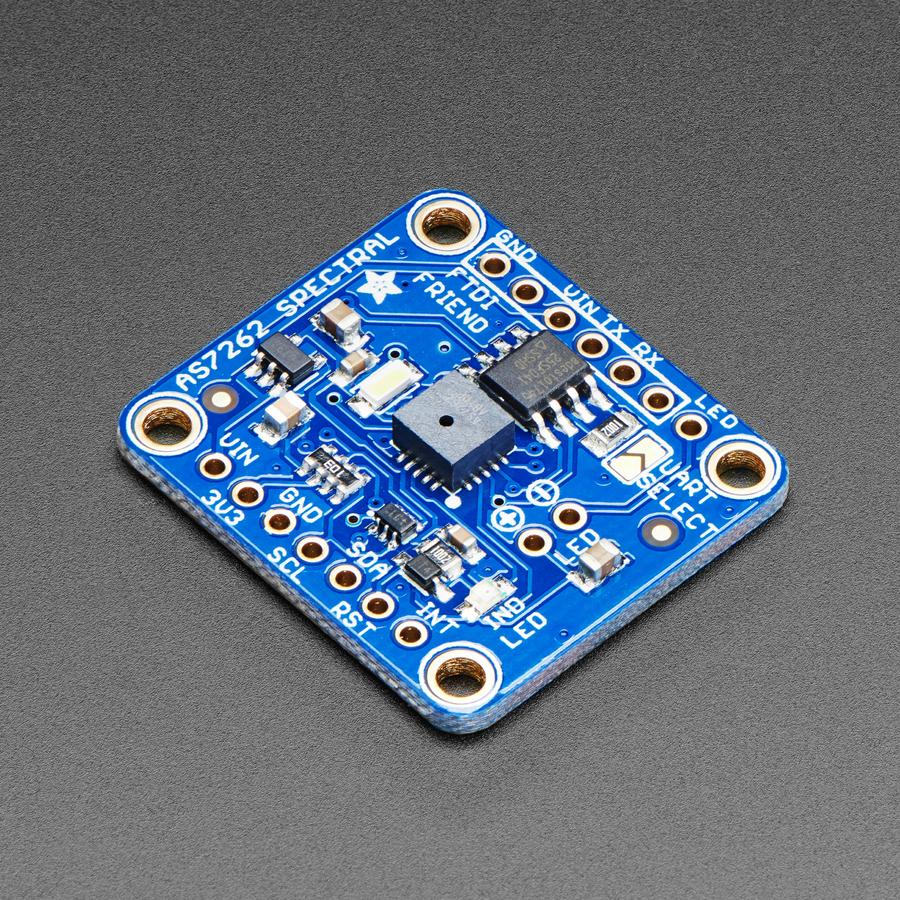

Adafruit have placed the sensor on a PCB for you and included an SPI flash chip pre-programmed with the device firmware, a 3.3V regulator, I2C level shifting, and the recommended LED flash. Both the I2C and UART interfaces are broken out, making this breakout an excellent all-in-one solution for all your colour-sensing needs. The pinout for the UART interface is plug-and-play compatible with the Adafruit FTDI Friend.

Adafruit have also prepared software libraries to get you up and running in Arduino or CircuitPython with just a few lines of code!

TECHNICAL DETAILS

  • Check out the full guide for schematics, datasheets, Arduino & CircuitPython code and more!
  • Product Dimensions: 27.8mm x 25.0mm x 3.9mm / 1.1" x 1.0" x 0.2"
  • Product Weight: 2.6g / 0.1oz

Reviews

User photos

Detect trees of green, and red roses too with the new Adafruit AS7262 6-Channel Visible Light/Colour Sensor Breakout.

ADA3779

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA3779
EAN
0606034877191
Brand
Adafruit
Stock available
0 units
Backorder not allowed on this product
Weight
6g
