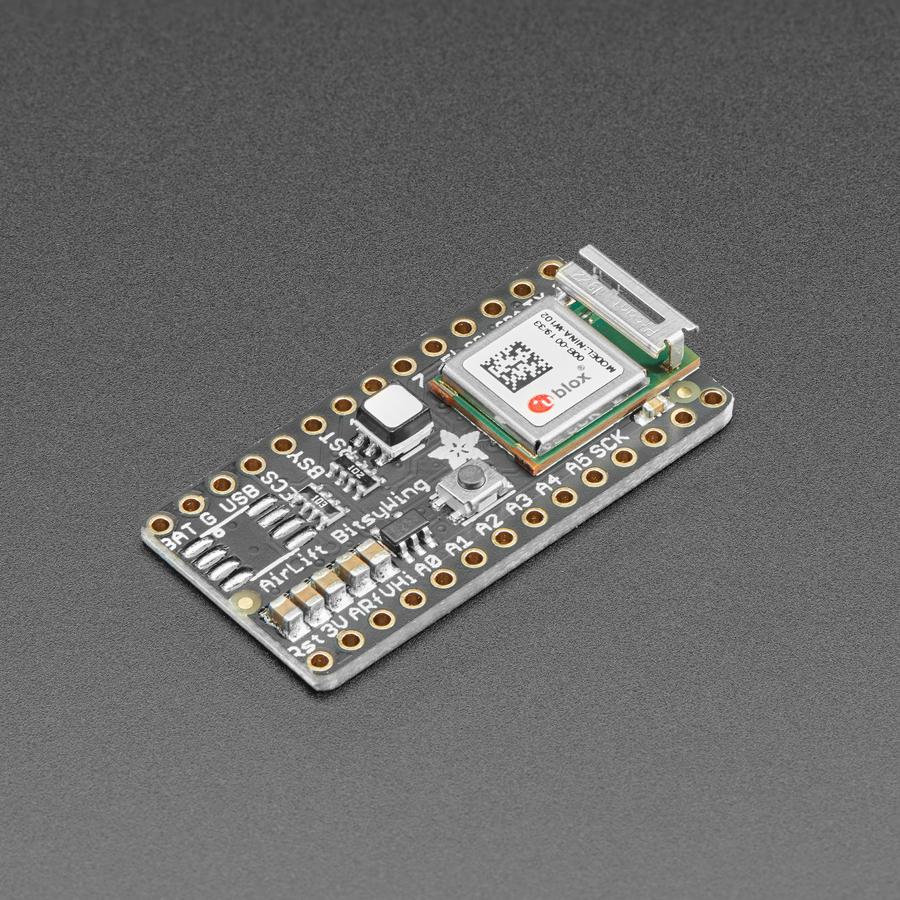

Adafruit AirLift Bitsy Add-On – ESP32 WiFi Co-Processor

by Adafruit
An image of Adafruit AirLift Bitsy Add-On – ESP32 WiFi Co-Processor An image of Adafruit AirLift Bitsy Add-On – ESP32 WiFi Co-Processor An image of Adafruit AirLift Bitsy Add-On – ESP32 WiFi Co-Processor An image of Adafruit AirLift Bitsy Add-On – ESP32 WiFi Co-Processor

Give your ItsyBitsy project a lift with the Adafruit AirLift Bitsy Add-On - a daughterboard that lets you use the powerful ESP32 as a WiFi co-processor.

You probably have your favorite ItsyBitsy (like the Itsy' M4) that comes with its own set of awesome peripherals and lots of libraries. But it doesn't have WiFi built in! So lets give that chip a best friend, the ESP32. This chip can handle all the heavy lifting of connecting to a WiFi network and transferring data from a site, even if its using the latest TLS/SSL encryption (it has root certificates pre-burned in).

Having WiFi managed by a separate chip means your code is simpler, you don't have to cache socket data, or compile in & debug an SSL library. Send basic but powerful socket-based commands over 8MHz SPI for high speed data transfer.

You can use any ItsyBitsy with 3V logic (that means the ItsyBitsy 32u4 5V is not going to work), although the '32u4 Itsy will not be able to do very complex tasks or buffer a lot of data. It also works great with CircuitPython, a SAMD51/Cortex M4 minimum required since we need a bunch of RAM. All you need is an SPI bus and 2 control pins plus a 3V power supply that can provide up to 250mA during WiFi usage.

Adafruit placed an ESP32 module on a Bitsy board with a tri-state chip for MISO so you can share the SPI bus with other devices. Comes fully assembled and tested, pre-programmed with ESP32 SPI WiFi co-processor firmware that you can use in CircuitPython to use this into  WiFi co-processsor over SPI + 2 pins. They also toss in some headers so you can solder it in on top of the Itsy for a compact sandwich, but you can also pick up a set of stacking headers to stack above/below your ItsyBitsy (use the Feather stacking headers and cut them down to size).

Adafruit have tested this with all their ItsyBitsy and it should work just fine with them except the ItsyBitsy 32u4 5V (because the voltage is not right). For use in Arduino, the ItsyBitsy '32u4 3V can do basic connectivity and data transfer but they do not have a lot of RAM so we don't recommend them - use the M0, M4 or similar, for best results! For CircuitPython use, an ItsyBitsy M4 is required - the M0 series does not have enough RAM in CircuitPython.

The firmware on board is a slight variant of the Arduino WiFiNINA core, which works great! At this time connection to Enterprise WiFi is not yet supported.

Check out the learning system guide for schematics, files, and to get started AirLift'in' within minutes!

TECHNICAL DETAILS

  • Product Dimensions: 35.6mm x 18.0mm x 5.5mm / 1.4" x 0.7" x 0.2"
  • Product Weight: 6.0g / 0.2oz

LEARN

  • Primary Guide: Adafruit Airlift Bitsy Add-On - ESP32 WiFi Co-Processor - Add a Airlift Bitsy Add-On to give your projects an extra-small internet enabled lift!

Reviews

User photos

Give your ItsyBitsy project a lift with the Adafruit AirLift Bitsy Add-On - a daughterboard that lets you use the powerful ESP32 as a WiFi co-processor.

ADA4363

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA4363
EAN
0606034880306
Brand
Adafruit
Stock available
11 units
Backorder not allowed on this product
Weight
7g
