Adafruit 2.9" Tri-Color eInk / ePaper Display FeatherWing - Red Black White

Name: Adafruit 2.9" Tri-Color eInk / ePaper Display FeatherWing - Red Black White
Brand: Adafruit
SKU: ADA4778
Price: 24.60 GBP
Availability: OutOfStock

by Adafruit

Easy e-paper comes to your Feather with this breakout that's designed to make it a breeze to add a tri-color eInk display.

Chances are you've seen one of those new-fangled 'e-readers' like the Kindle or Nook. They have gigantic electronic paper 'static' displays - that means the image stays on the display even when power is completely disconnected. The image is also high contrast and very daylight readable. It really does look just like printed paper!

We've liked these displays for a long time, so wouldn't a custom e-paper FeatherWing with buttons make a ton of sense? This 'Wing is tested to work with all of our Feathers, from the ESP8266 to the M0. It has built-in memory buffering so it can work with chips as small as the '32u4 and '328. It does use a lot of pins: the 3 SPI pins, and up to 4 control pins to manage the SD card slot and SRAM. Plus 3 optional buttons are available for Feathers with available pins.

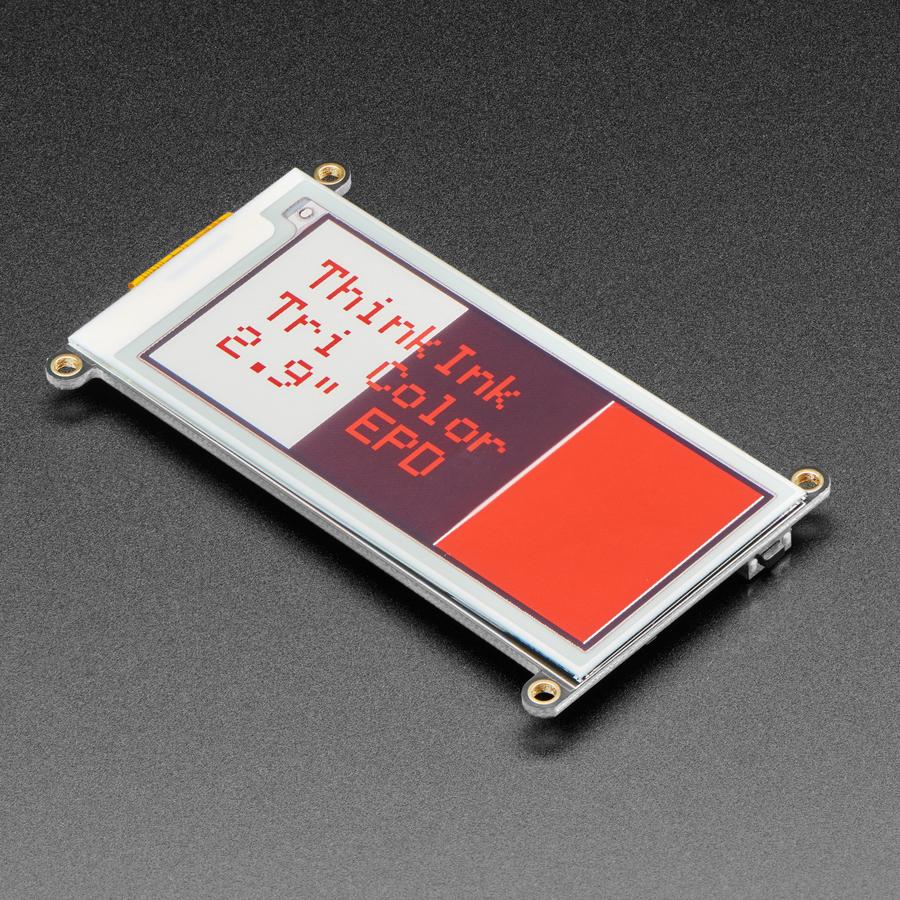

The FeatherWing sports a 2.9" tri-color (red, black, and white) display with 296x128 pixels with black and red ink pixels and a white-ish background. Using the CircuitPython or Arduino libraries, you can create a 'frame buffer' with what pixels you want to have activated and then write that out to the display. Most simple breakouts leave it at that. But if you do the math, 296 x 128 pixels x 2-bits-per-pixel = 9.5 KBytes. Which won't fit into many microcontroller memories. Heck, even if you do have 32KB of RAM, why waste 9KB?

So Adafruit did you a favor and tossed a small SRAM chip on the back. This chip shares the SPI port the eInk display uses, so you only need one extra pin. And, no more frame-buffering! You can use the SRAM to set up whatever you want to display, then shuffle data from SRAM to eInk when you're ready. The library they wrote does all the work for you, you can just interface with it as if it were an Adafruit_GFX compatible display.

They even tossed on a MicroSD socket so you can store images, text files, whatever you like to display. Comes assembled and tested with socket headers that you can plug your Feather right into, no soldering required!

TECHNICAL DETAILS

PCB Dimension (excluding mounting holes): 79.5mm x 38mm x 6.8mm
Mounting hole diameter: 2.5mm
Mounting hole dimensions: 74.3mm x 42mm

Easy e-paper comes to your Feather with this breakout that's designed to make it a breeze to add a tri-color eInk display.

ADA4778

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU

ADA4778

EAN

0769894016794

Brand

Adafruit

Stock available

0 units
Backorder not allowed on this product

Weight

24g
