Picade Max Encoder (Volume Control)

by Pimoroni

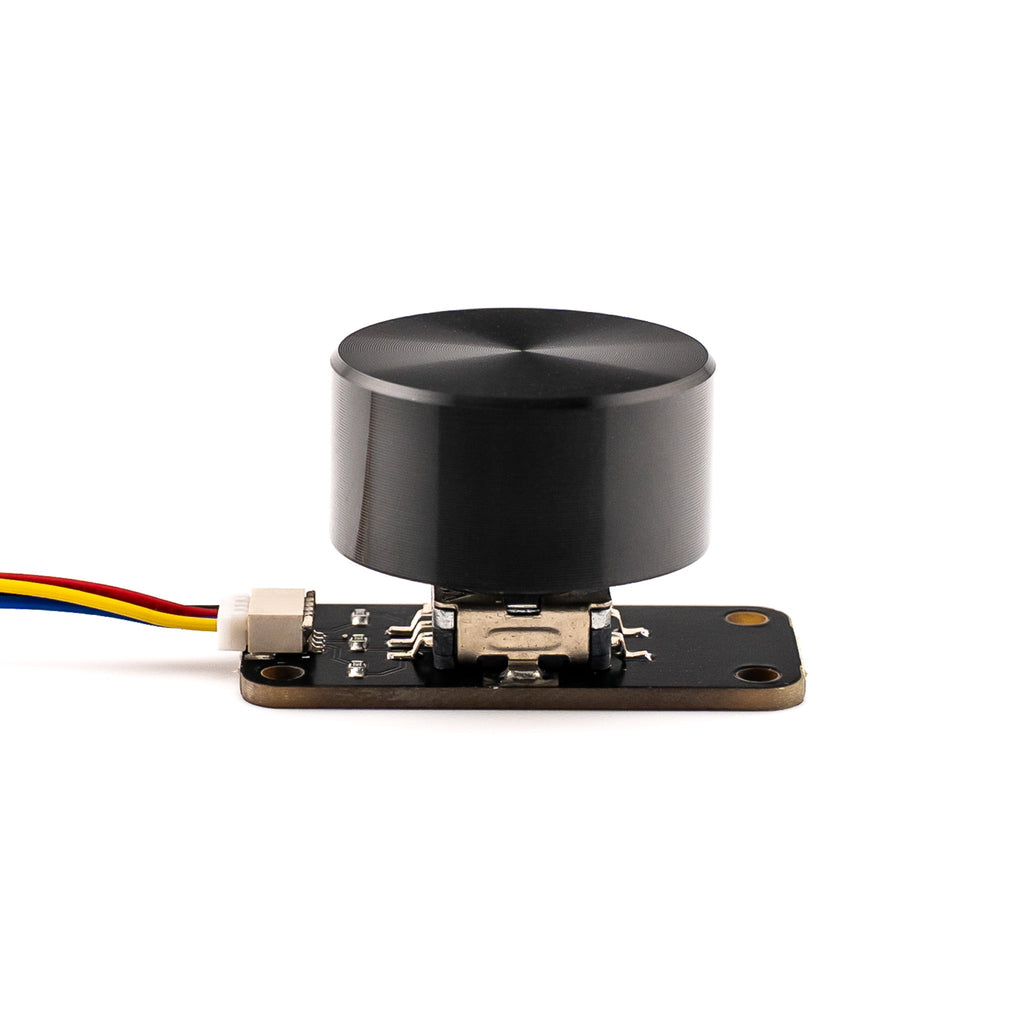

An image of Picade Max Encoder (Volume Control) An image of Picade Max Encoder (Volume Control) An image of Picade Max Encoder (Volume Control) An image of Picade Max Encoder (Volume Control)

Add a hardware volume control dial to Picade Max USB Audio.

Picade Max Encoder is a small board with a digital rotary encoder conveniently pre-attached. Connect it up to the 'Encoder' port on Picade Max USB Audio and adjust the volume of your homebrew arcade machine (or alternate cool DIY build), with no soldering required ✨ The encoder is also a button, so you can click it to mute/unmute.

It comes with the same snazzy black aluminium dial that we use in our Picade Max kit, and a 200mm cable for plugging it in. If you need a longer cable, they're available here.

Kit includes

  • Picade Max Encoder board, with EC11 digital rotary encoder
  • Black aluminium dial
  • JST-SH to JST-SH cable (200mm)

Picade Max USB Audio board is sold separately.

Notes

  • This is not an I2C device! We've used a 4 pin JST-SH connector for convenience but it's not compatible with Qw/ST / Qwiic / STEMMA QT.
  • Dimensions:
    • Board measures 18 x 38 mm (L x W)
    • Total assembled height: 22mm (approx)
  • The mounting holes are M2.5, inset 3mm from each edge (AKA 32x12 hole pattern).

Reviews

User photos

Add a hardware volume control dial to Picade Max USB Audio.

PIM770

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
PIM770
EAN
0769894026878
Brand
Pimoroni
Stock available
10+ units
You may backorder this product
Weight
14g

Video introduction
