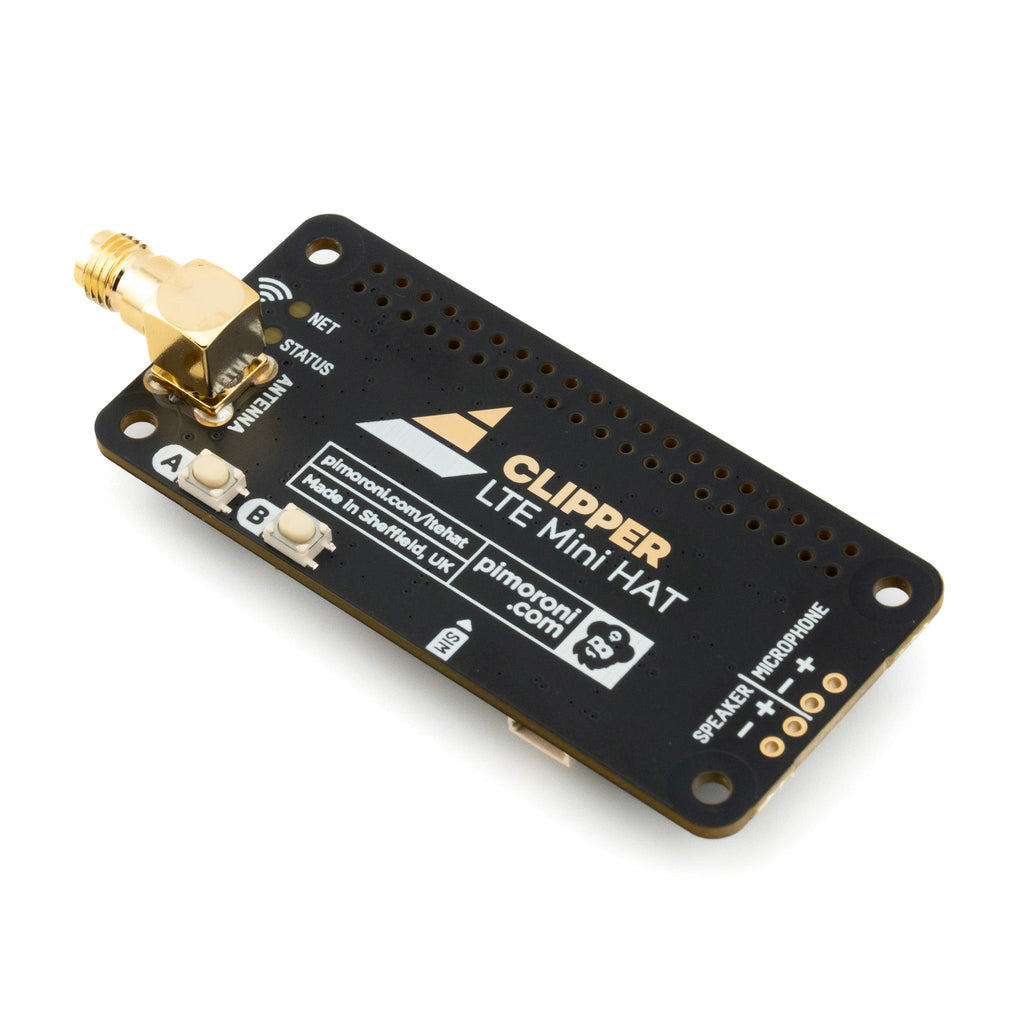

Clipper HAT Mini (LTE 4G for Raspberry Pi)

by Pimoroni
An image of Clipper HAT Mini (LTE 4G for Raspberry Pi) An image of Clipper HAT Mini (LTE 4G for Raspberry Pi) An image of Clipper HAT Mini (LTE 4G for Raspberry Pi) An image of Clipper HAT Mini (LTE 4G for Raspberry Pi) An image of Clipper HAT Mini (LTE 4G for Raspberry Pi)

Clipper enables your Raspberry Pi computer to receive and transmit data over 4G LTE cellular networks - perfect for remote or mobile projects.

WiFi is great, but sometimes you want your connected project to Just Work, wherever in the world it is. Perhaps you're going to a festival and don't know if there will be wireless connectivity to control your weird LED art installation. Maybe you're trying to get the tech in your shed to talk to your home automation software, but the range of your wireless router won't quite reach. Possibly you're attaching sensors to a distant beehive, canal boat, bicycle or other object with a remote or transient location?

Hooking your Raspberry Pi up to cellular / mobile data could be your solution! Typically, transmitting sensor readings and suchlike doesn't consume much data compared to the needs of modern smartphones, so a small amount of pay-as-you-go data used like this goes a long way.

The mini HAT version of Clipper includes a couple of nice additions for your Raspberry Pi - LED indicators to show you what the LTE module is doing, two user buttons and a Qw/ST connector, which makes it easy to connect up breakouts with a Qwiic or STEMMA QT connector using one of these cables.

Clipper HAT Mini has an SMA connector for attaching an antenna. Antennae are sold separately, so be sure to pick one up!

Features

  • SIMCom A7683E 4G LTE module
    • Frequency Bands: LTE-FDD B1/B3/B5/B7/B8/B20/B28
    • Control Via AT Commands (SIMCom AT-Command Manual)
  • SIM card slot
  • Two user buttons (labelled A and B)
  • STATUS and NET indicator LEDs
  • SMA connector for attaching an antenna
  • Qw/ST (Qwiic / STEMMA QT) connector for attaching I2C breakouts
  • Unpopulated headers for adding a speaker and microphone
  • Pre-soldered socket header for attaching to Raspberry Pi
  • No soldering required (as long as your Raspberry Pi has a 40 pin header attached).
  • Compatible with Raspberry Pi computers
  • Schematic
  • Dimensional drawing

Raspberry Pi and accessories are sold separately.

Regional compatibility

The 4G LTE module on Clipper supports the following frequency bands:

B1/B3/B5/B7/B8/B20/B28

If you're planning on using it outside of Europe we'd suggest first checking your local carriers offer 4G LTE on these specific bands. Networks in North America in particular only use a couple of these frequency bands, and so coverage may be limited.

Getting Started

    Raspberry Pi OS has a built in ppp library for working with LTE 4G - our handy learn guide will show you how to get it set up.

    • Getting Started with Clipper HAT Mini

    Notes

    • Dimensions: 65 x 30 x 17mm (L x W x D, including connectors). With a Pi Zero 2 W attached with 10mm standoffs, the total depth (including the antenna connector) is around 23mm.
    • VDD current consumption info from our testing:
      • Idle: 17mA
      • Sleep modes: 0.12mA - 1.63mA
      • Peak current consumption when transmitting: 700mA (the peak current is only reached for a brief moment, and the 440uF of capacitors on the breakout help to smooth the peaks)
      • The average currents we saw when actively using the module were in the 50mA - 100mA range.
    • The LTE module has quite a sensitive undervoltage circuit, so if it keeps turning off randomly or when you try and do anything with it check your power supply is up to the task!

    Reviews

    User photos

    Clipper enables your Raspberry Pi computer to receive and transmit data over 4G LTE cellular networks - perfect for remote or mobile projects.

    PIM717

    You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

    If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

    If you already have an account you can login to your account here.

    Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

    SKU
    PIM717
    EAN
    0769894025796
    Brand
    Pimoroni
    Stock available
    200+ units
    You may backorder this product
    Weight
    18g
