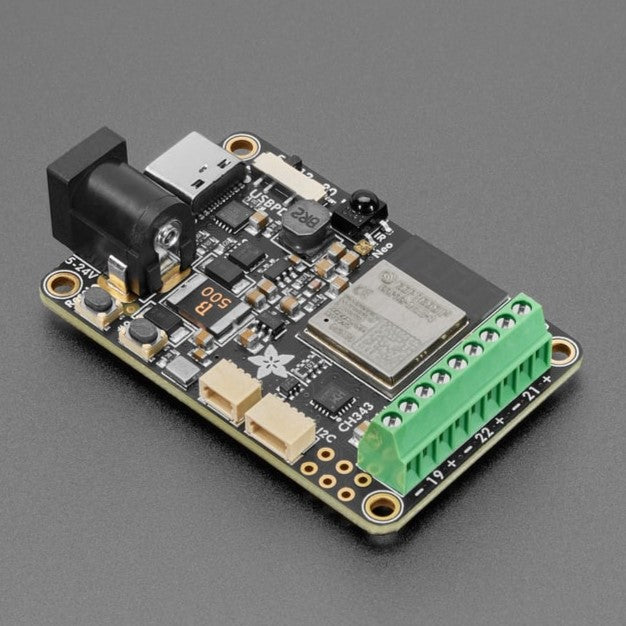

Adafruit Sparkle Motion - All-In-One WLED and xLights Board

by Adafruit
An image of Adafruit Sparkle Motion - All-In-One WLED and xLights Board An image of Adafruit Sparkle Motion - All-In-One WLED and xLights Board An image of Adafruit Sparkle Motion - All-In-One WLED and xLights Board An image of Adafruit Sparkle Motion - All-In-One WLED and xLights Board An image of Adafruit Sparkle Motion - All-In-One WLED and xLights Board An image of Adafruit Sparkle Motion - All-In-One WLED and xLights Board

Sparkle Motion is the flagship in Adafruit's series of "Sparkle Motion" boards, their attempt to make the best WLED-friendly smart LED driving board in the whole world.

Adafruit's resident mermaid, firepixie makes a lot of projects with WLED and she loves it! So how to make something that will be powerful enough to drive advanced LED projects with built-in sensors.

This version has a built-in antenna so it's ready to go out-of-the-box.

This board has everything you could possibly want for big, small, or even massive WLED/xLights projects:

  • Power option 1 via USB Type C PD with a slide switch that selects between 5, 12 and 20V (24V pixels can usually run fine at 20V)
  • Power option 2 via 2.1mm DC jack, center positive
  • Low forward-voltage diodes so its good for up to 5A from either
  • 5 Amp fuse to protect from over-current drive
  • ESP32 mini module with built in antenna port - the classic ESP32 has the best WLED support even if we'd prefer the 'S2 or 'S3. Comes with 4 MB of flash, dual core 240MHz Tensilica, WiFi, Bluetooth® LE and Bluetooth® Classic support.
  • USB-serial converter with auto-reset
  • Three output signal terminal block sets with power and ground for each - they'll be level shifted to 5V. Use 26-20AWG stranded or solid core wires, 5A rated.
  • 6 GPIO breakout pads with a fourth level-shifted output, and 3 more GPIO plus power and ground.
  • Built-in I2S microphone for audio-reactive projects with digital quality audio
  • Built-in IR receiver for easy remote control integration
  • Stemma QT I2C port to connect external sensors/OLED/etc.
  • Separate analog/digital input JST port for analog input, potentiometer, microphone or external IR receiver
  • User button on GPIO 0 plus Reset button
  • Red built-in LED on pin 4
  • Small built-in NeoPixel on pin 2
  • Compact enough you can use it for wearable projects - 1.3"x1.75" / 33mm x 45mm size with mounting holes

To make it super fast to get started, terminal blocks are pre-installed: use any 20-26 AWG stranded or solid core wires with a flat-head screwdriver to attach semi-permanently.

While Adafruit recommend it for use with WLED, it will also work just fine as a compact ESP32 board for use with Arduino, ESP-IDF, MicroPython, CircuitPython or any other ESP32 supported codebase.

Technical Details

Revision History:

  • As of August 4, 2025 - The microphone may be located on the top or bottom of the Sparkle Motion board.

RoHS 2 2011 65 EU Compliant RoHS 2 2015 863 EU Compliant

Learn

  • Primary Guide: Adafruit Sparkle Motion
    Get up and running with your Sparkle Motion Board
  • See more guides!

Reviews

User photos

Sparkle Motion is the flagship in Adafruit's series of "Sparkle Motion" boards, their attempt to make the best WLED-friendly smart LED driving board in the whole world.

ADA6100

You must register for an account and be logged in to view pricing or place an order on the Pimoroni Wholesale store.

If you represent a school or university, a business, or reseller of Maker products then you can sign up for a wholesale account.

If you already have an account you can login to your account here.

Alternatively the easiest way to get your hands on the products we offer is to order them directly from our customer facing online store.

SKU
ADA6100
EAN
Brand
Adafruit
Stock available
20+ units
Backorder not allowed on this product
Weight
16g
