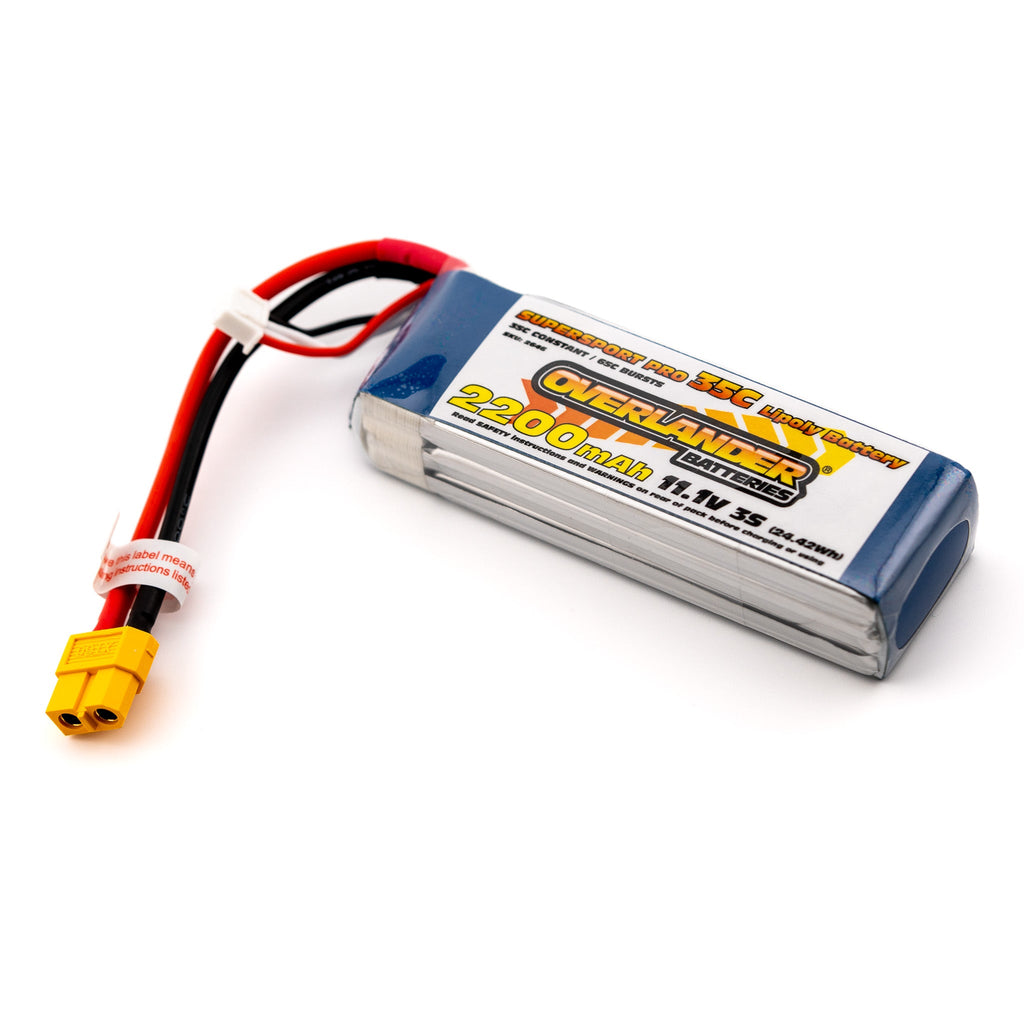

With a constant discharge rating of 35C (hitting a peak of 65C in bursts), these hardcore LiPo batteries are perfect for supplying power to Pimoroni Yukon and other hefty projects that are capable of dealing with higher voltages.
You will need a specialist charger to charge these batteries safely (we stock Overlander's VSRMini) and we also highly recommend picking up a Safety Charge Sack for use when charging and storing them.
You can plug the XT60 connector on these batteries directly into Yukon using one of these handy XT60 to XT30 adapters.
⚠ Warning! These batteries do not have the in-built safety features of our other LiPos that prevent against over-charging and over-discharging, so we only recommend them for use by folks who've used LiPos before and understand the risks. Be sure to read the safety warnings in the package thoroughly before use!
Specifications
| OVERLANDER-2566 | OVERLANDER-2646 | OVERLANDER-2577 | |
| Capacity (mAh) | 2200 | 2200 | 5000 |
| Voltage | 7.4 | 11.1 | 11.1 |
| Cell Count | 2S | 3S | 3S |
| Constant Discharge | 35C | 35C | 35C |
| Burst Discharge | 65C | 65C | 65C |
| Maximum Constant Current (A) | 77 | 77 | 175 |
| Maximum Burst Current (A) | 143 | 143 | 325 |
| Watt Hours (Wh) | 16.28 | 24.42 | 55.5 |
| Dimensions (mm) | 101 x 33 x 15 | 101 x 33 x 23 | 138 x 42 x 27 |
| Weight (g) | 119 | 169 | 343 |
| Wire Gauge (AWG) | 14 AWG | 14AWG | 10 AWG |
| Connector | XT60 | XT60 | XT60 |
| Balance Connector Type | JST-XH | JST-XH | JST-XH |
| Datasheet |
[Link] |
[Link] | [Link] |
| Material Safety Data Sheet (MSDS) | [Link] | [Link] | [Link] |
| LiPo Warning Sheet | [Link] | [Link] | [Link] |
About Overlander LiPo Batteries
All of Overlander's LiPo batteries are designed with optimal performance, longevity and reliability in mind. Overlander's LiPo batteries are manufactured using the superior stacking method; this provides dependable capacity and consistent power. Every cell is fully matched in Internal Resistance, Voltage and Weight before they are put together to create your battery packs. This stringent matching process makes for exceptional results both competitively and professionally.
Overlander is proud to work in conjunction with Fullymax to produce high-quality LiPo packs. The production process for LiPo battery cells is fully automatic and completed in a dust free atmosphere using uniformity and conformity. Fullymax cells are renowned for their:
Overlander LiPo packs come fully equipped with high quality silicone leads. It is safe to say with Overlander you are guaranteed to receive the highest-quality, top-performing batteries that you’ve grown to expect. Lithium Polymer batteries provide superior voltage, capacity and discharge/power. These combined into a lighter, more compact size, make lithium battery packs the favourable choice over alternative chemistries.
