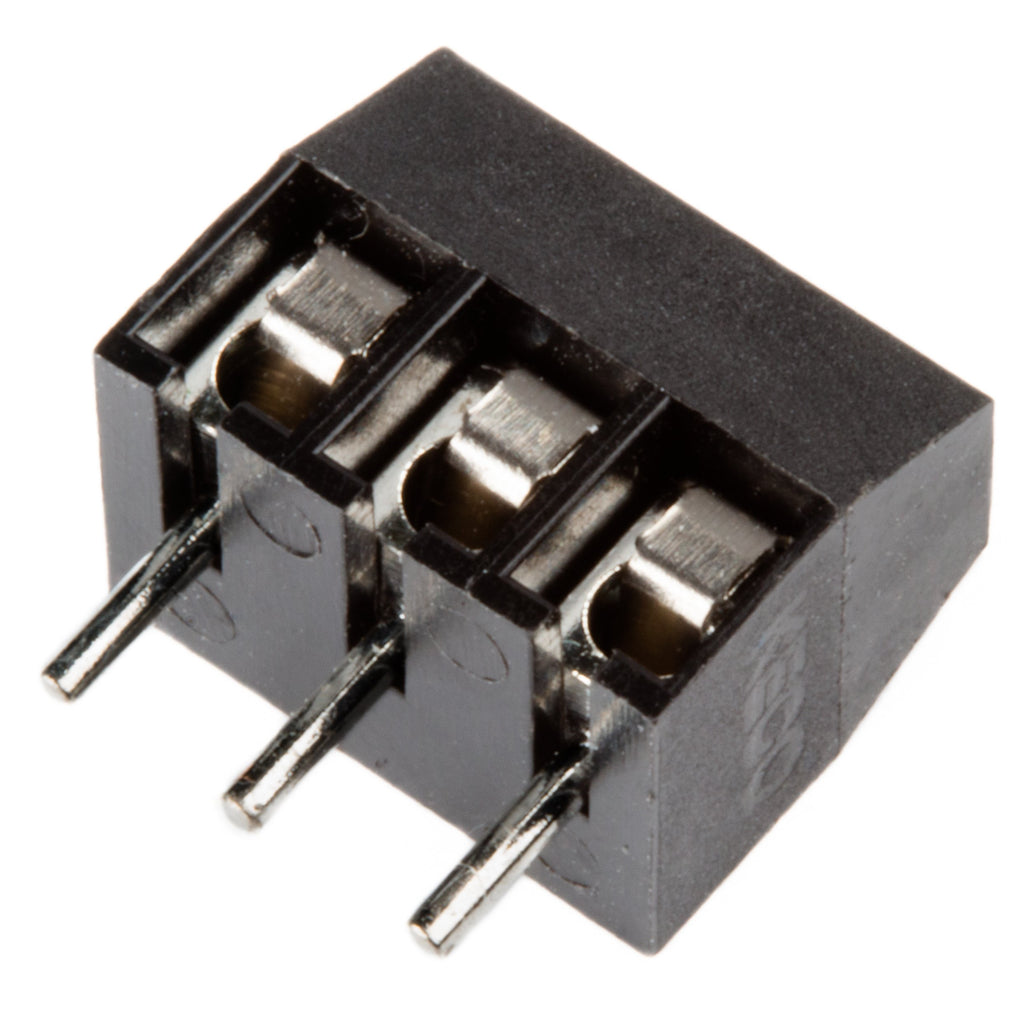

Screw terminals with a 3.5mm pitch
We have these screw terminals made custom for us from a high-temperature plastic that is designed specifically to survive temperatures inside a reflow oven. They are ideal for the professional and the hobbyist alike.
As well as being suitable to reflow the high-temperature plastic also holds up against hand soldering and rework helping to minimise damage to the connector when heat is applied.
Available in 2 and 3-pin configurations these terminals are smooth-sided and moulded to sit next to each other in your project, so if you need a larger terminal connection you can easily build that up.
Specifications
| Pitch | 3.5mm |
| Wire range | 24-16AWG; 1.0mm2 |
| Rated voltage | 300V |
| Rated current | 10A |
| Housing | DuPont FR52G30NH PPA with 30% glass fiber |
| Contact block | Brass, tin plated |
| Wire protector | Stainless Steel |
| Screw | M2, Steel, Zinc plated |
| Torque | 2lb-in |
