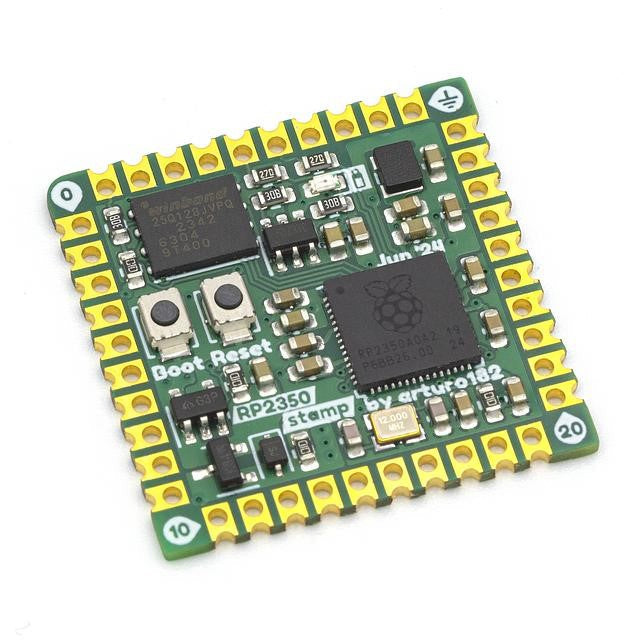

A hand-solderable RP2350A module with 16MB FLASH, LiPo charging, reset/boot buttons, and all GPIO broken out.
The Stamp was created to allow you to use the Raspberry Pi RP2350A in your designs without having to solder small-pitch QFN chips or worry about lots of external circuitry.
All you need to get you started is a 5V supply or a LiPo battery. The Stamp will take care of the charging and switching the power sources.
The castellated edges with 2mm pitch can be hand-soldered directly to a Carrier board, used with pin headers for more flexibility, or connected without soldering using FlexyPins, which are spring connectors designed for modules with castellated edges. You can find footprints for many PCB programs including KiCad, Eagle CAD, and EasyEDA here.
Features
At only 1 by 1 inch, the Stamp packs a lot of features:
- 16MB of FLASH
- 500mA 3.3V LDO
- All 30 GPIOs broken out
- LiPo supply and charging circuit (with charging LED)
- USB broken out
- SWD broken out
- Reset Button
- Bootsel Button
- 12MHz crystal
and of course, everything that comes with the Raspberry Pi RP2350 itself:
- Dual core ARM Cortex-M33 or Hazard3 @ 150MHz
- 520kB SRAM
- 2 UARTs
- 2 SPIs
- 2 I2Cs
- 24 PWM channels
- 12 PIO state machines
- 1 HSTX peripheral
- USB with Host and Device support
The RP2350 comes with a pre-programmed ROM UF2 Bootloader, by pulling the BOOTSEL pin low and resetting, or by double-pressing the RESET button (if the FW supports it), you can upload new firmware using the USB disk drive.
