These universal aluminum mounting hubs allow you to mount custom wheels and mechanisms to 5 mm diameter motor shafts.

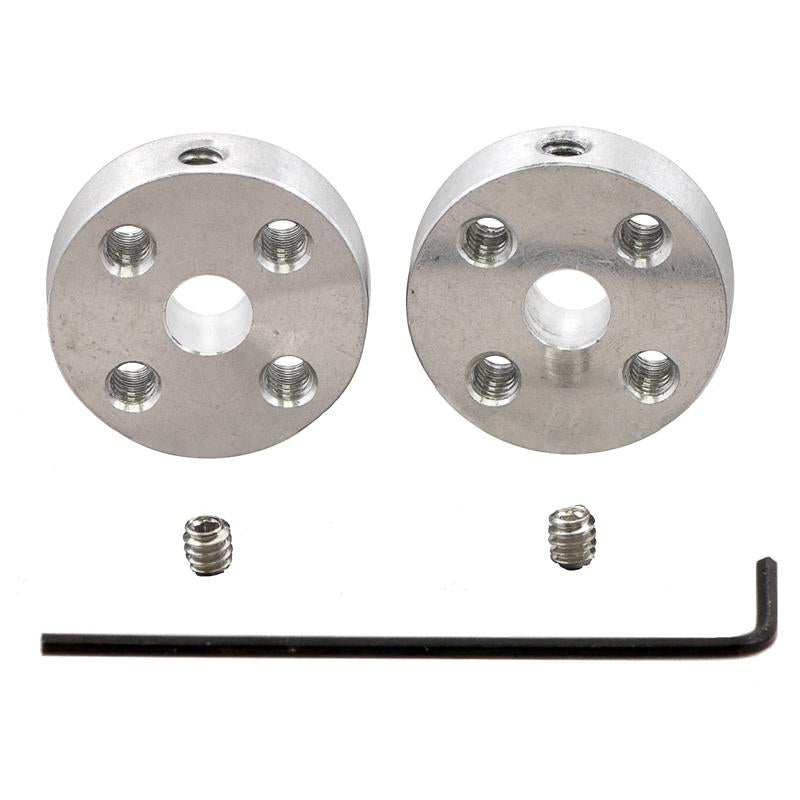

The set includes two hubs, two #4-40 set screws for securing the hubs to motor shafts, and one 0.05″ Allen wrench for use with the set screws. Each hub has four threaded mounting holes for #4-40 screws (not included).
These universal mounting hubs are designed to work with most 5 mm diameter shafts, including round shafts and “D” shafts. Each of the two included hubs has four mounting holes for #4-40 screws (not included), letting you mount custom wheels or mechanisms to your motors. The two included #4-40 hex set screws (one for each hub) allow secure coupling of shaft to hub, and a 0.05″ hex wrench (often the smallest size in SAE Allen wrench sets) is included for use with the set screws.
Dimensions
- Size: 19 mm diameter × 5 mm thick
- Weight: 3.2 g1
- Shaft diameter: 5 mm
- Mounting hole size: #4-40
1For a single hub only (without set screw).
