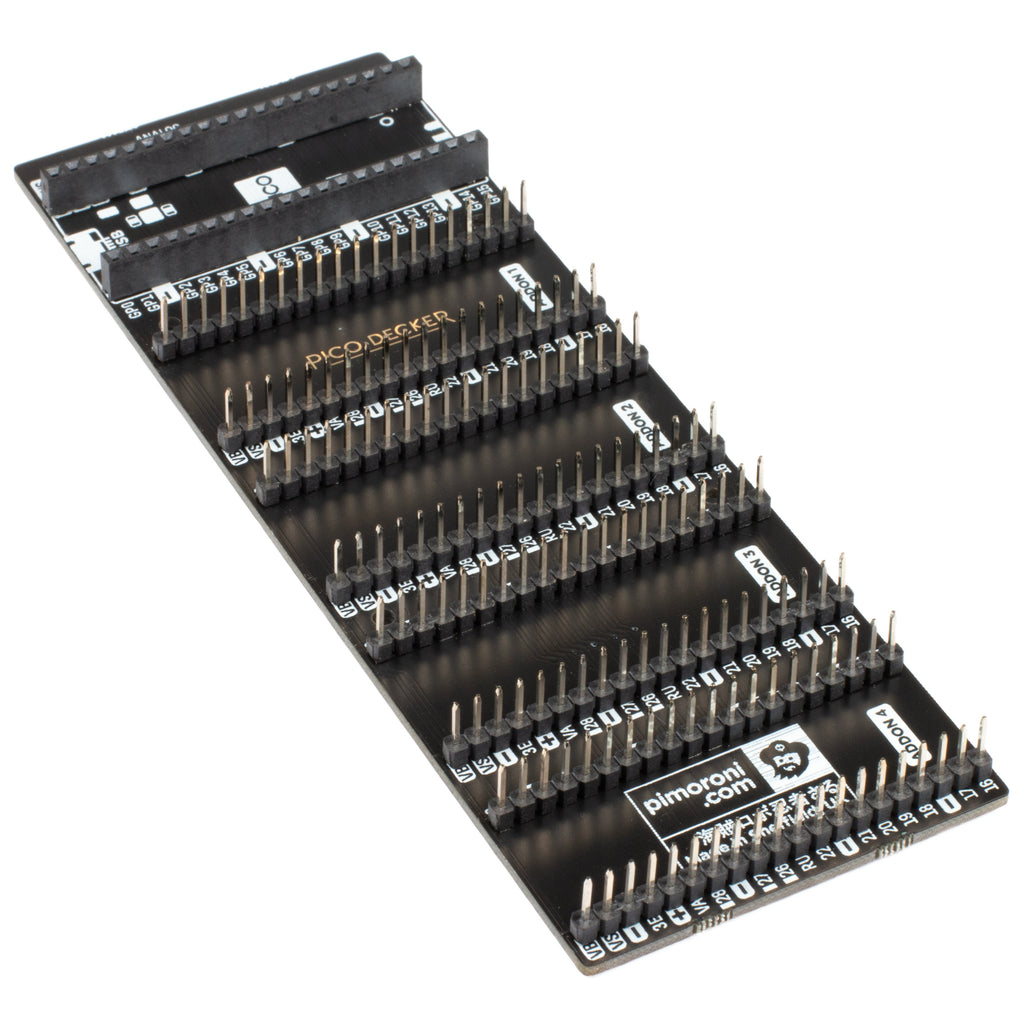

Quadruplicate your GPIO pins and attach up to four add-ons to a single Raspberry Pi Pico (or compatible) with our formidable Pico Decker expander board!
Struggling to choose between Pico add-ons? Mix and match up an epic stack of functionality and plug in up to four Pico Packs or Bases at once*, or use the four sets of fully labelled pins to easily attach other devices, jumper wires or circuitry - very useful for prototyping. We've also included some little rubber feet to keep everything solid, four M2.5 mounting holes and some particularly whimsical Routemaster bus inspired artwork on the back 🚌
If you're after something a little more compact, we also make a two slot Pico Omnibus.
A Raspberry Pi Pico is not included - click here if you'd like to buy one!
Features
- One landing area with labelled socket headers for attaching to your Pico.
- Four landing areas with labelled (mirrored) pin headers for attaching add-ons.
- 4x M2.5 mounting holes.
- 4x rubber feet
- Works with Raspberry Pi Pico and other pin compatible boards (including Pico 2 and W variants)
- 99% assembled - just need to stick on the feet!
- No soldering required.
- Dimensions: approx 148mm x 52mm x 13mm (L x W x H, including feet and headers)
Notes
- * You'll need to check for data pin conflicts when using multiple Pico add-ons - the shop page for the add-on in question will list what pins it uses.
- * If you need to plumb a Pico Base into Pico Decker, you'll probably want to do it via some pin-socket jumper jerky to keep things manageable and to stop everything from being quite so upside-down!
- The Pico Packs shown in the photo are not included.
About Raspberry Pi Pico
Raspberry Pi Pico is a flexible, low cost microcontroller development board from the folks at Raspberry Pi, based on their very own chip - the RP2040. It's easily programmable over USB with C/C++ or MicroPython, and ideal for using in all sorts of physical computing projects, devices and inventions - we're so excited to see what you make with it!
We've called our Pico-sized add-ons packs, as they're designed to attach to the back of your Pico as if it were wearing a very stylish back pack (or a miniature jet pack, if you prefer). We've also got Pico bases (larger add-on boards with a space to mount your Pico on top) and some other boards that let you do interesting hackerly things like using multiple packs at once - click here to view them all!
Your Pico will need to have pin headers soldered to it (with the pins pointing downwards) to attach to our add-on boards.
